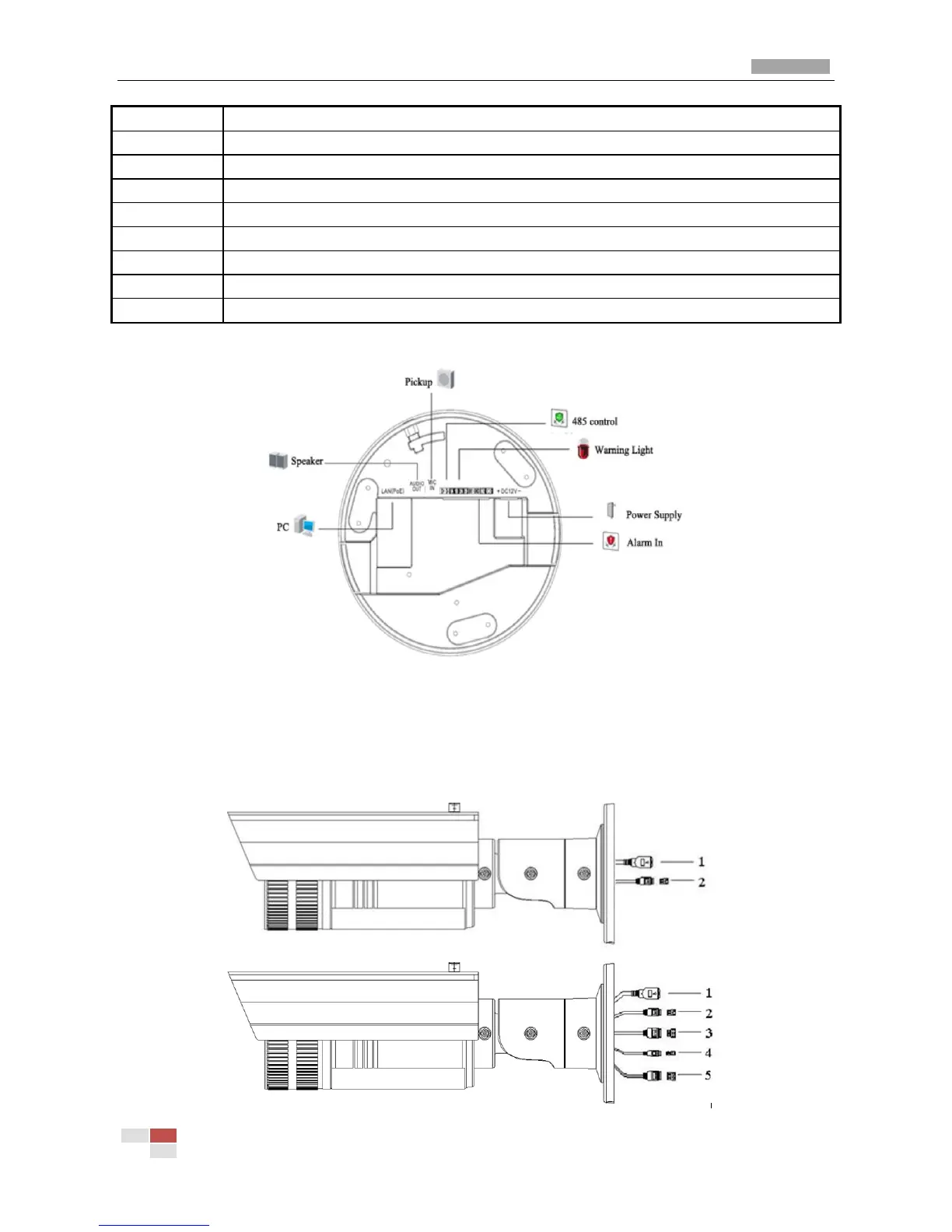

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
12
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
INITIAL SET: Reset the camera
3
AUDIO OUT: Audio output interface
4
MIC IN: Audio input interface
5
D+, D-: RS-485 interface
6
1A, 1B, 2A, 2B: Alarm output interface
7
IN1, GND, IN2, GND: Alarm input interface
8
Power supply
Camera connection:
Figure 2.2.6
2.3 Bullet Camera Physical Description
Camera description:
