Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
3.2.2 Dome Camera Ⅱ
The ceiling mounting is a suitable installation way for this camera. Please stick to the following
steps:
Step 1: First, loosen the screw with a hexagonal screw driver (attached with the camera), and take
down the transparent cover shown as below:

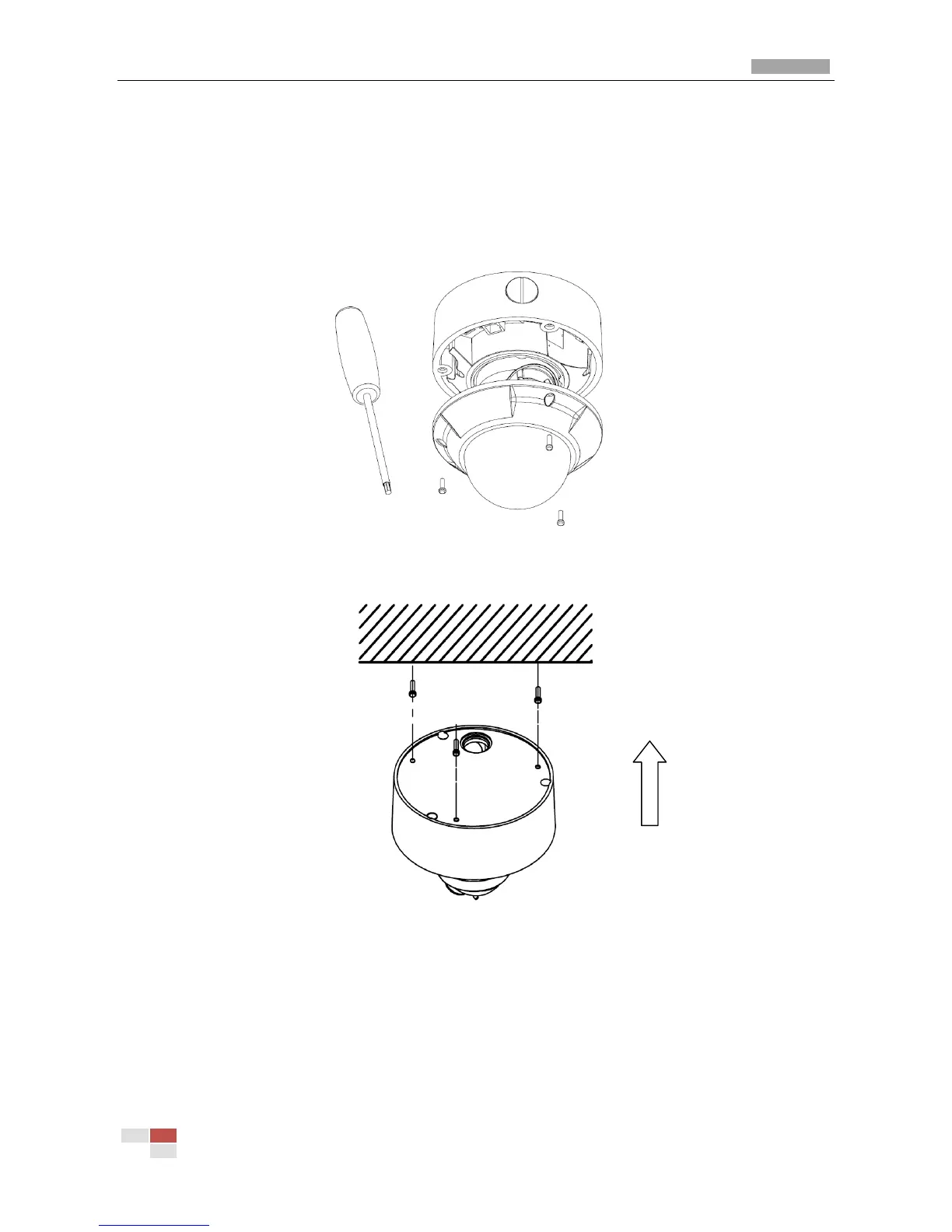

Figure 3.2.4 Unload the Cover
Step 2: Use the screws to fix the dome camera on the ceiling.
Figure 3.2.5 Install the Camera
Step 3: Adjust the camera’s view angle while watching the video on the adjustment monitor. Loosen
the fixed screws, and adjust the camera horizontally and vertically. Adjust the lens focus to get
optimal video effect.
Step 4: Tighten the screw after adjusting camera’s view angle, and cover the transparent casing.
