Chapter 2 Physical Description
The network cameras can be classified to eight types according to the physical structure: Box
camera Ⅰ, Box camera Ⅱ, Box camera Ⅲ, Dome camera Ⅰ,Dome camera Ⅱ, Bullet Camera, Cube
Camera, Mini Dome Camera.
2.1 Box Camera Physical Description
2.1.1 Box Camera Ⅰ
Camera description:

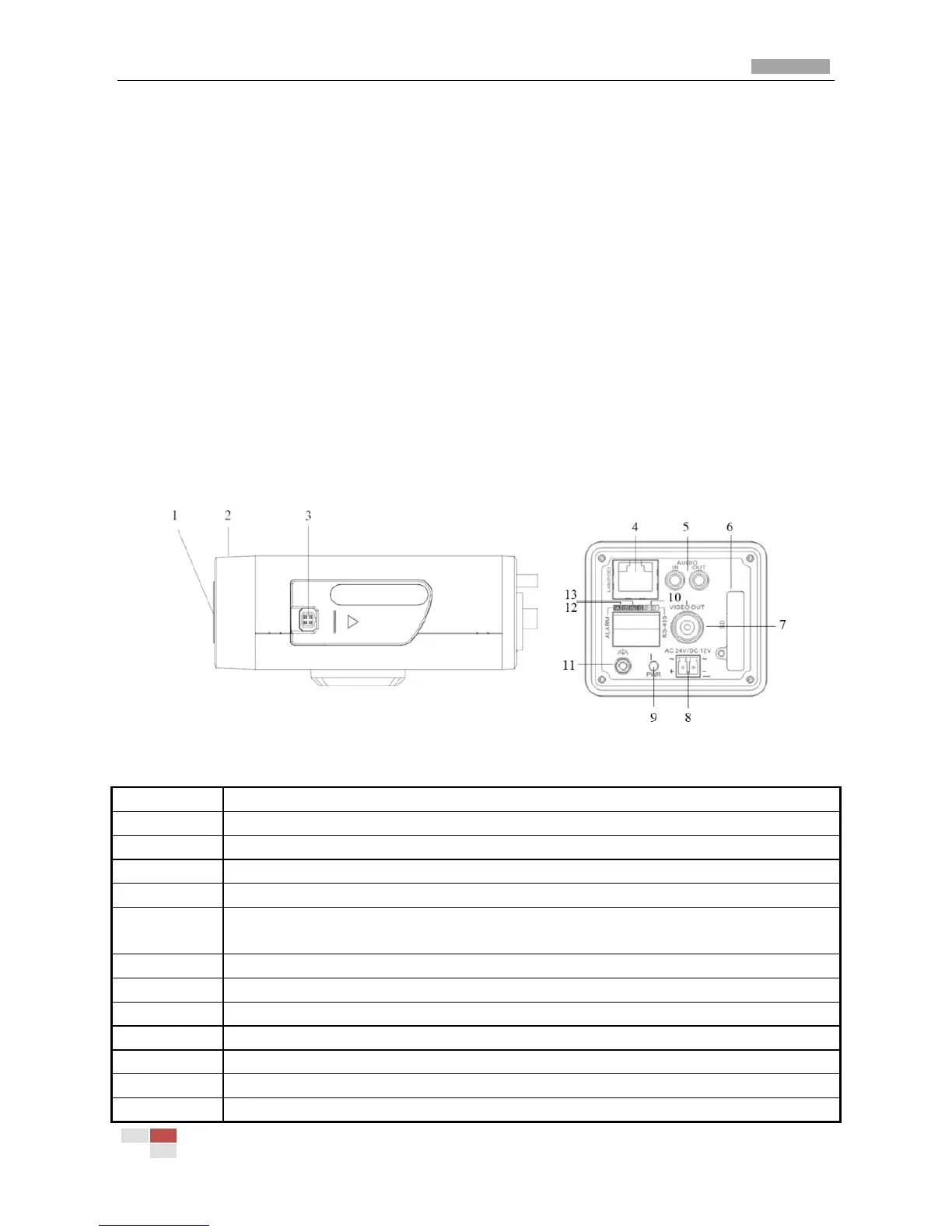

Figure 2.1.1
Serial NO.
Description
1
CS Lens mount
2
Back Focus Ring
3
Auto iris interface
4
10M/100M self-adaptive Ethernet interface
5
AUDIO IN: Audio input interface
AUDIO OUT: Audio output interface
6
SD: SD card slot
7
VIDEO OUT: Video output interface
8
Power supply
9
PWR: Power LED indicator
10
D+, D-: RS-485 interface
11
Ground
12
1A, 1B: Alarm output interface
