3.4 Cube Camera Installation
Cube camera can be fixed in both wall and ceiling, customers can choose different ways to install
the camera according to their specific needs. The following section introduces the ceiling mounting,
and the wall mounting follows the same way:
Step 1: Fix the camera mounting bracket to the ceiling.

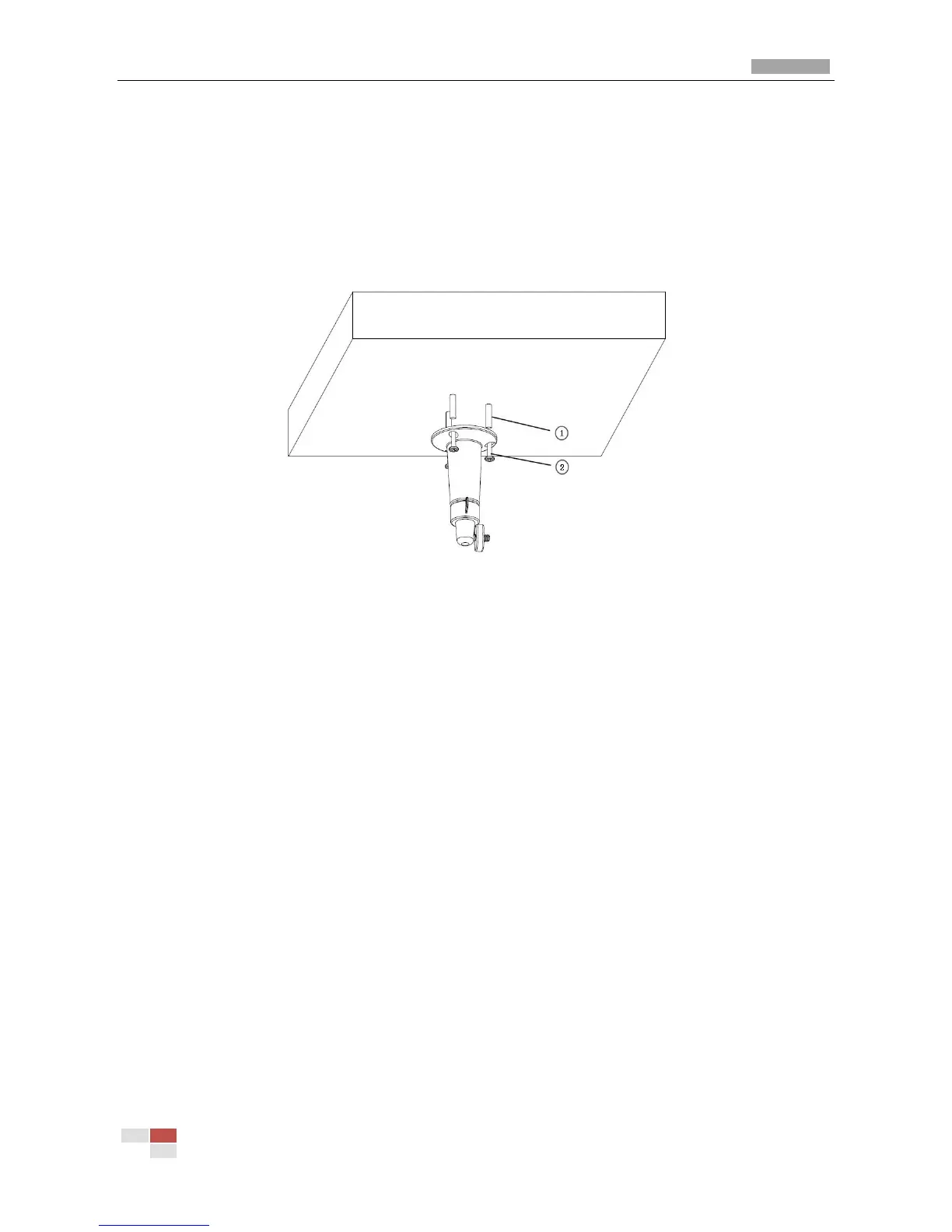

Figure 3.4.1 Fix camera mounting bracket
Note:
If it is cement wall, you need to fix the expand bolt (note: the mounting hole of the expand bolt
should align with the bracket) before fixing the bracket as step ① in Figure 3.4.1. If the wall surface
is wooden, the step ① in Figure 3.4.1 can be ignored and you can use the self-tapping screw to fix
the bracket directly. Please note that the wall on which the camera is fixed should be able to bear at
least three times the weight of the bracket and the camera.
Step 2: Screw the mounting hole to the mounting bracket, and then adjust the camera to the
desired monitoring location and finally tighten the knob on bracket to secure the camera to the
ceiling.
