Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

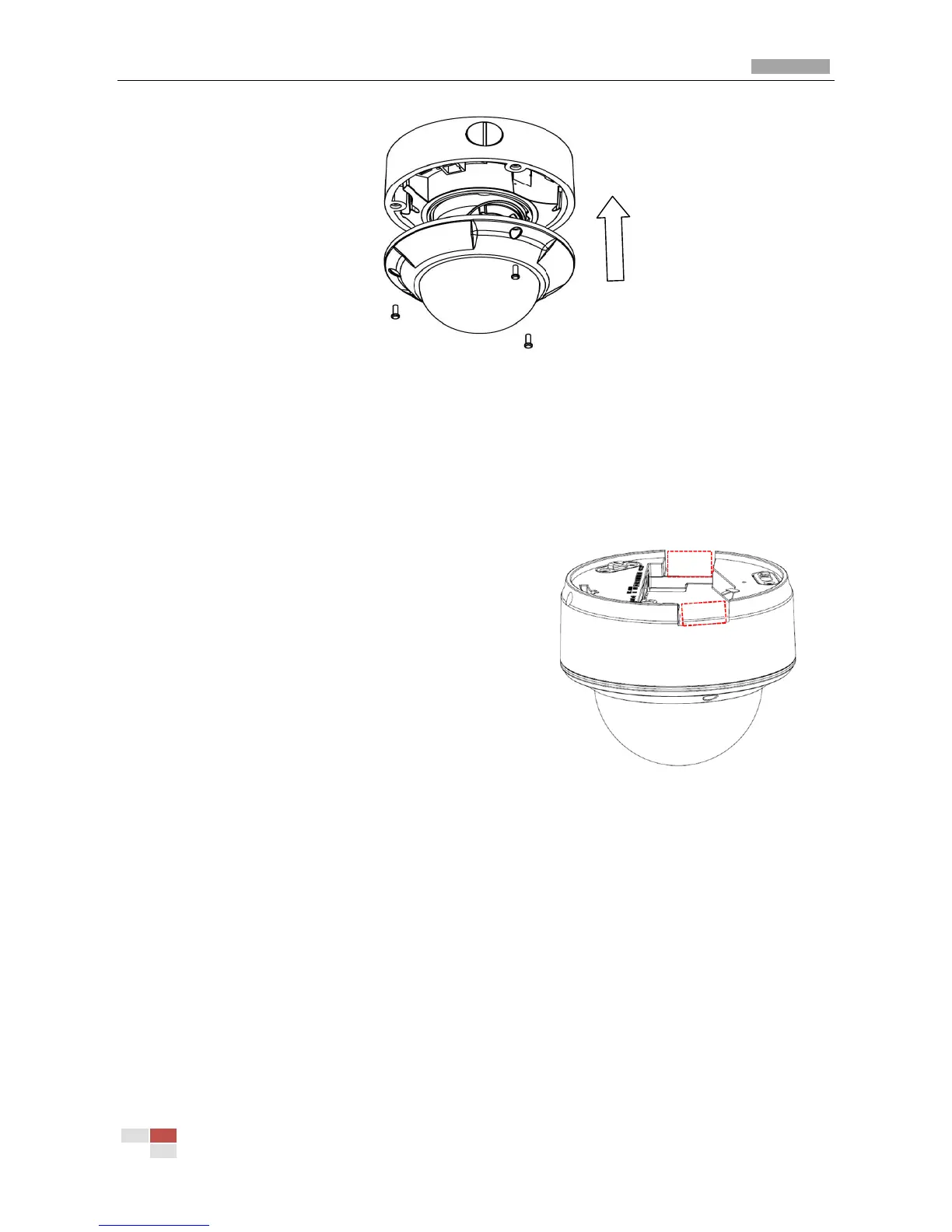

Figure 3.2.6 Install the Cover
3.2.3 Dome Camera Ⅲ
The ceiling mount is a suitable installation method for this camera. Please stick to the following
steps:
Figure 3.2.7
Step 1: Use the screws to fix the bottom plate on the ceiling, and rotate dome camera
counterclockwise to attach it to the bottom plate, and finally use the lock screw to secure the dome
camera.
Note:
If required, user can apply the pliers to
remove the clip (refer to the part marked
in dotted line) on the side of the back box
and then feed cables through the opening
to secure on the ceiling.
