HIKVISION DS-2CD752MF-IFB Installation Manual

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
13

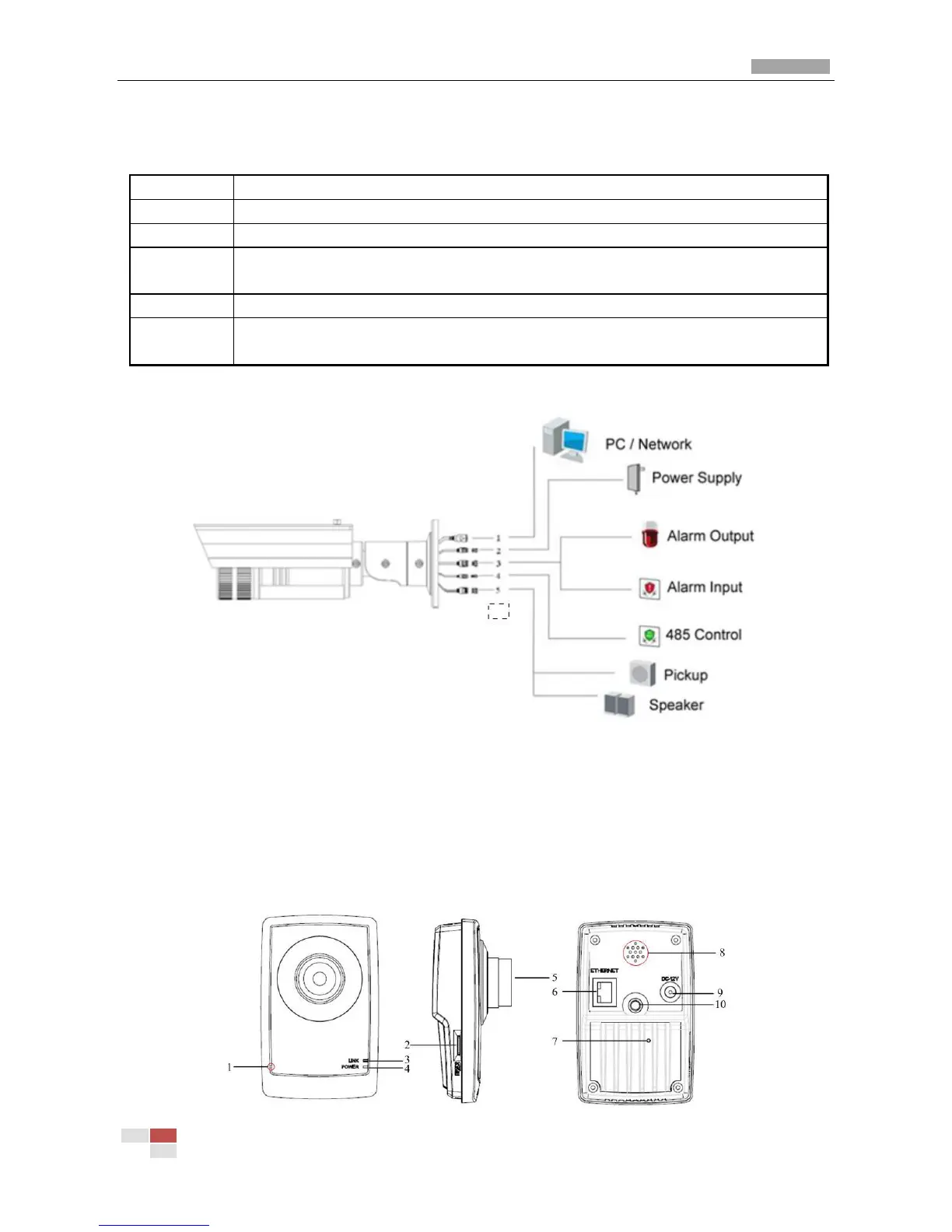

Figure 2.3.1
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
Power supply
3
IN, G: Alarm input interface
1A, 1B: Alarm output interface
4
D+, D-: RS-485 interface
5
AUDIO IN, G: Audio input interface
AUDIO OUT, G: Audio output interface
Camera connection:
Figure 2.3.2
2.4 Cube Camera Physical Description
Camera description:
