2.1.2 Box Camera Ⅱ
Camera description:

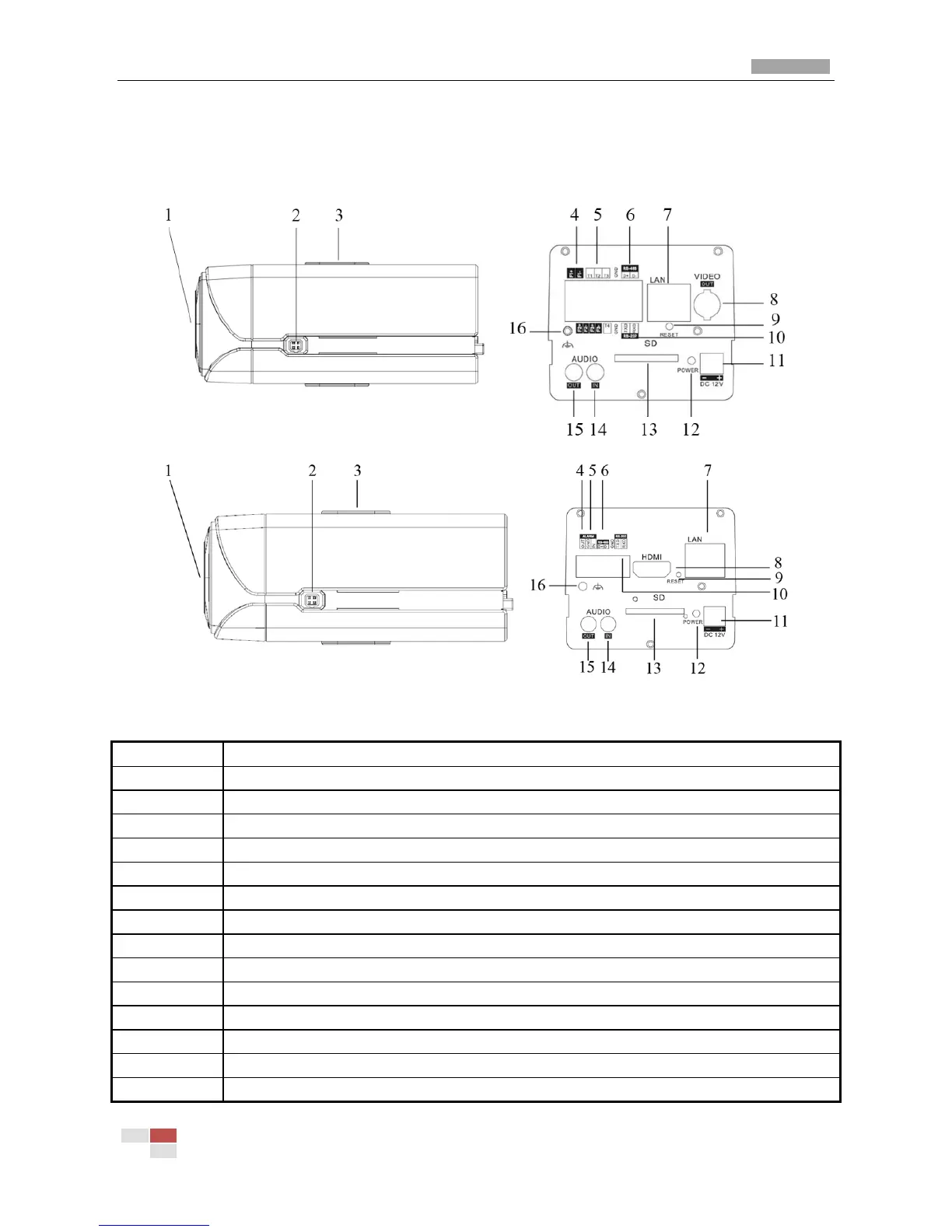

Figure 2.1.3
Serial NO.
Description
1
CS Lens mount
2
Auto iris interface
3
Bracket mounting holes
4
F1+ F1-, F2+ F2- ,F3+ F3-: Alarm output interface
5
T1,T2,T3, T4,GND: Alarm input interface
6
D+, D-: RS-485 interface
7
10M/100M self-adaptive Ethernet interface
8
VIDEO OUT: Video output interface
9
RESET: Reset the camera
10
TXD, RXD, GND: RS-232 interface
11
Power supply
12
PWR: Power LED indicator
13
SD: SD card slot
14
AUDIO IN: Audio input interface
