HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
100
If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as .
Otherwise it is displayed as

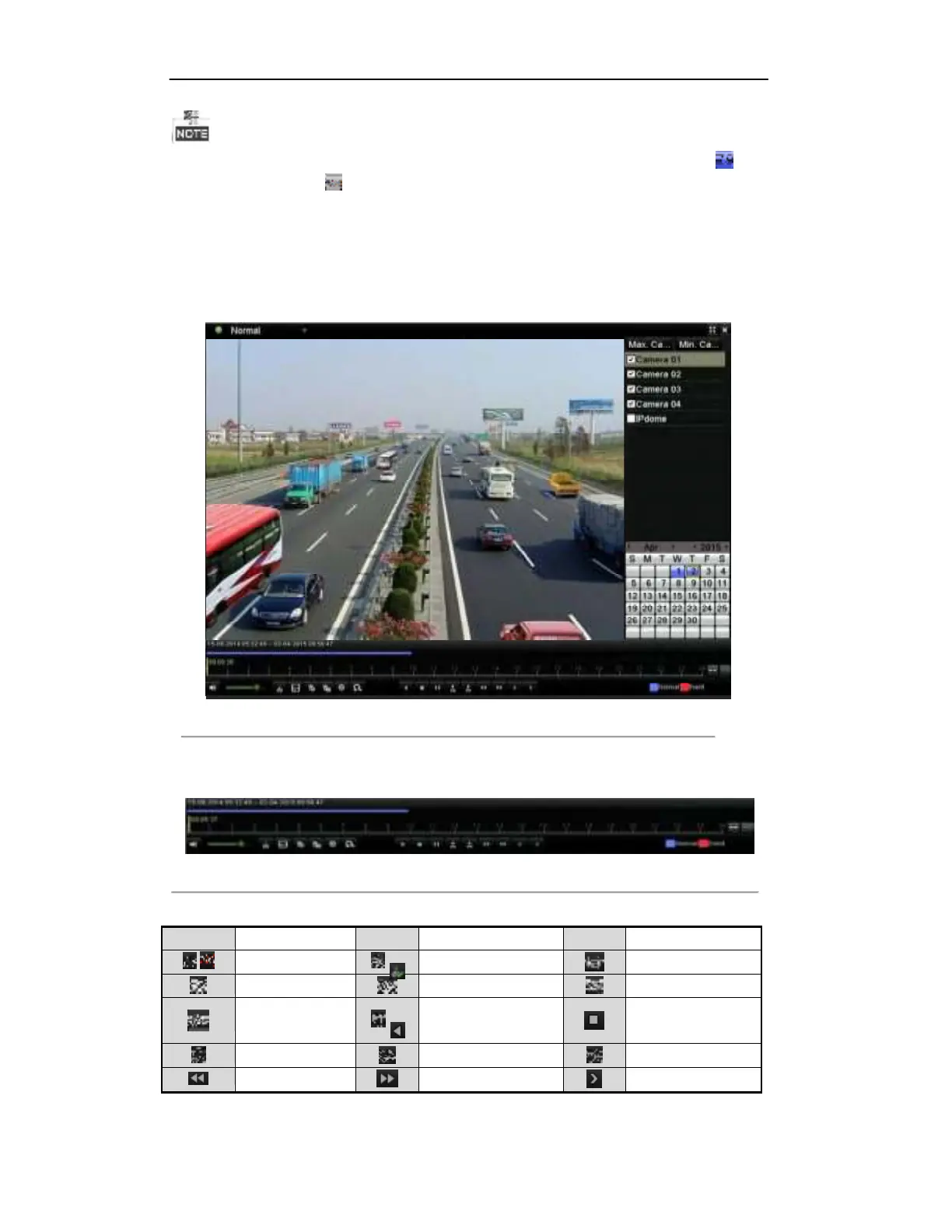

Playback Interface
You can use the toolbar in the bottom part of Playback interface to control playing progress, as shown in the
following figure.
Figure 6. 4 Playback Interface
Click the channel(s) if you want to switch playback to another channel or execute simultaneous playback
of multiple channels.
Figure 6. 5 Toolbar of Playback
Table 6. 1 Detailed Explanation of Playback Toolbar
Button Operation Button Operation Button Operation
/
Mute/Audio on
/
Start/Stop clipping
Save clip(s)
Add default tag Add customized tag Tag management
Digital Zoom
/
Pause/
Play Reverse
Stop
30s backward 30s forward Previous day
Slow forward Fast forward Next day

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
