User Manual of Digital Video Recorder
29
6 USB Port
Universal Serial Bus (USB) port for additional devices.
7 Network Interface
Connector for network
8 RS-485 Interface
Connector for RS-485 devices.
9 Power Supply
12V DC power supply.
10 Power Switch
Switch for turning on/off the device.
11 GND
Ground
12
Alarm In/Out (for
DS-7200HQHI-SH
only)
Connectors for alarm inputs and alarm outputs.

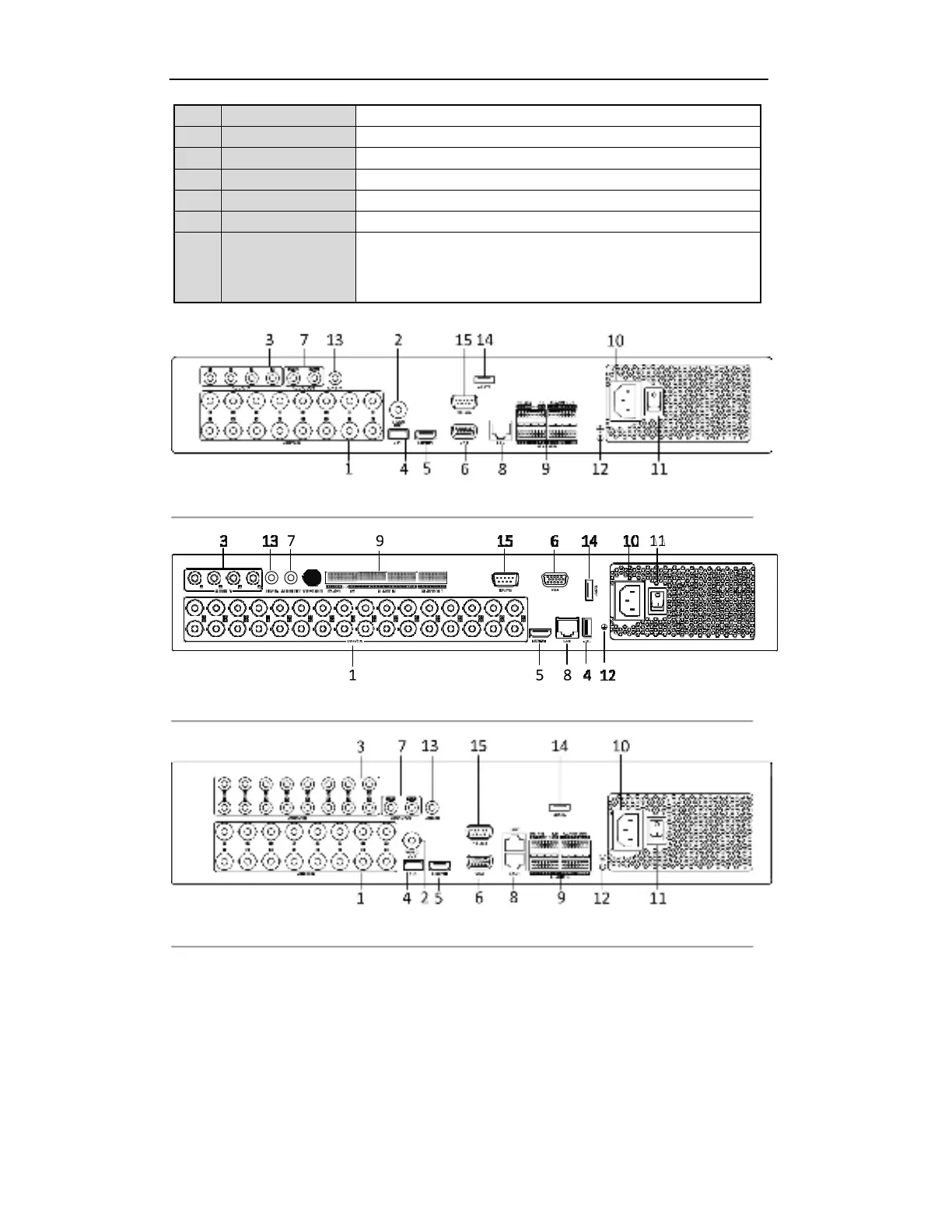

Figure 1. 13 DS-7316HQHI-SH and DS-7316HGHI-SH
Figure 1. 14 DS-7332HGHI-SH
Figure 1. 15 DS-8116HGHI-SH
