Digital Video Recorder User Manual
243
Step 2 Select the Image Settings tab.

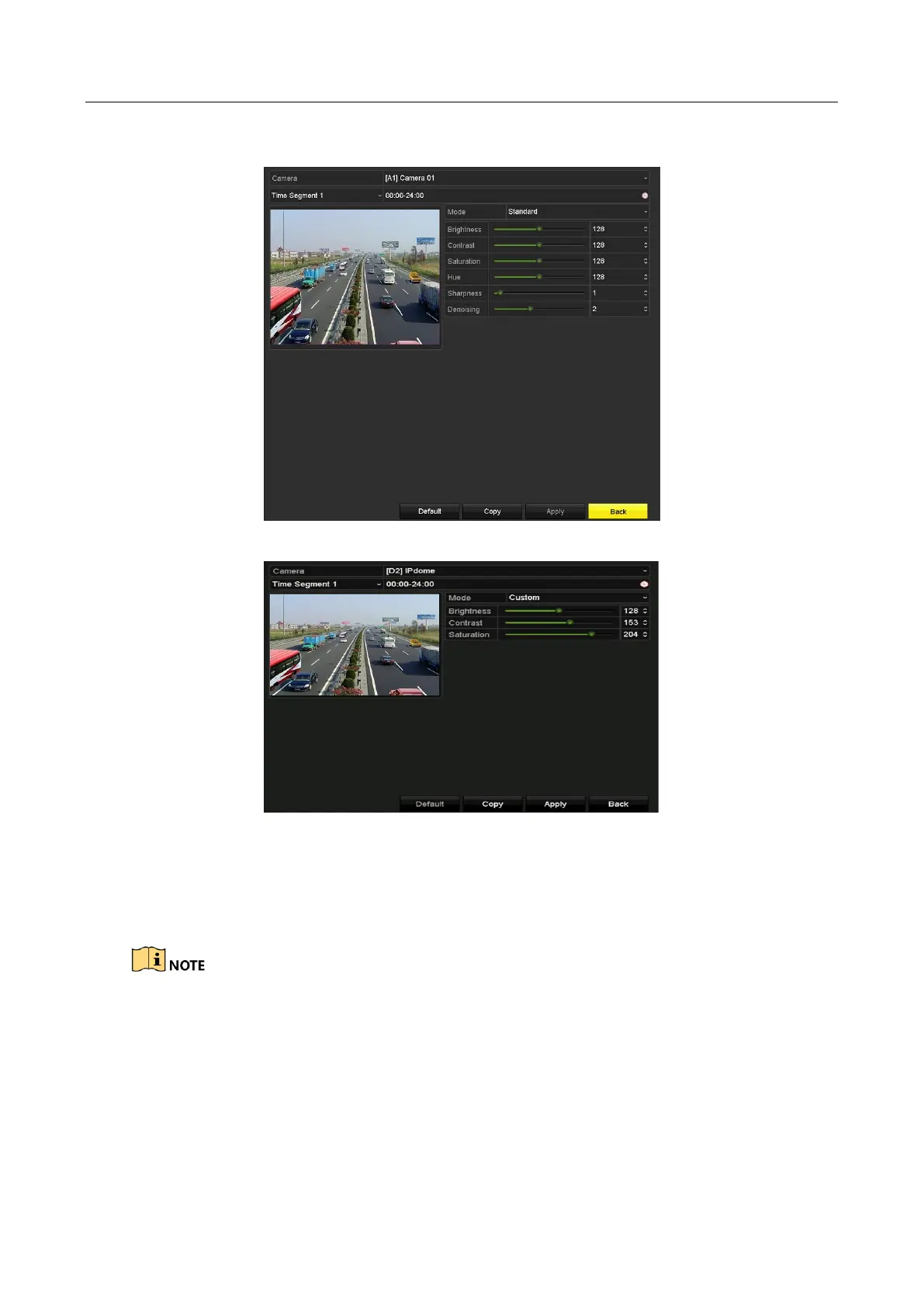

Figure 15-5 Image Settings Interface (Analog Camera)
Figure 15-6 Image Settings Interface (IP Camera)
Step 3 Select the camera to set image parameters.
Step 4 Two periods for different image settings are provided, select the period name in the
dropdown list.
The time periods cannot be overlapped with each other.
Step 5 Select the mode from the drop-down list of Mode, there are four modes selectable for the
analog cameras: Standard, Indoor, Dim Light and Outdoor.
Step 6 Adjust the image parameters according to actual needs. The parameters include Brightness,
Contrast, Saturation, Hue, Sharpness and Denoising for the analog cameras and Brightness,
