38

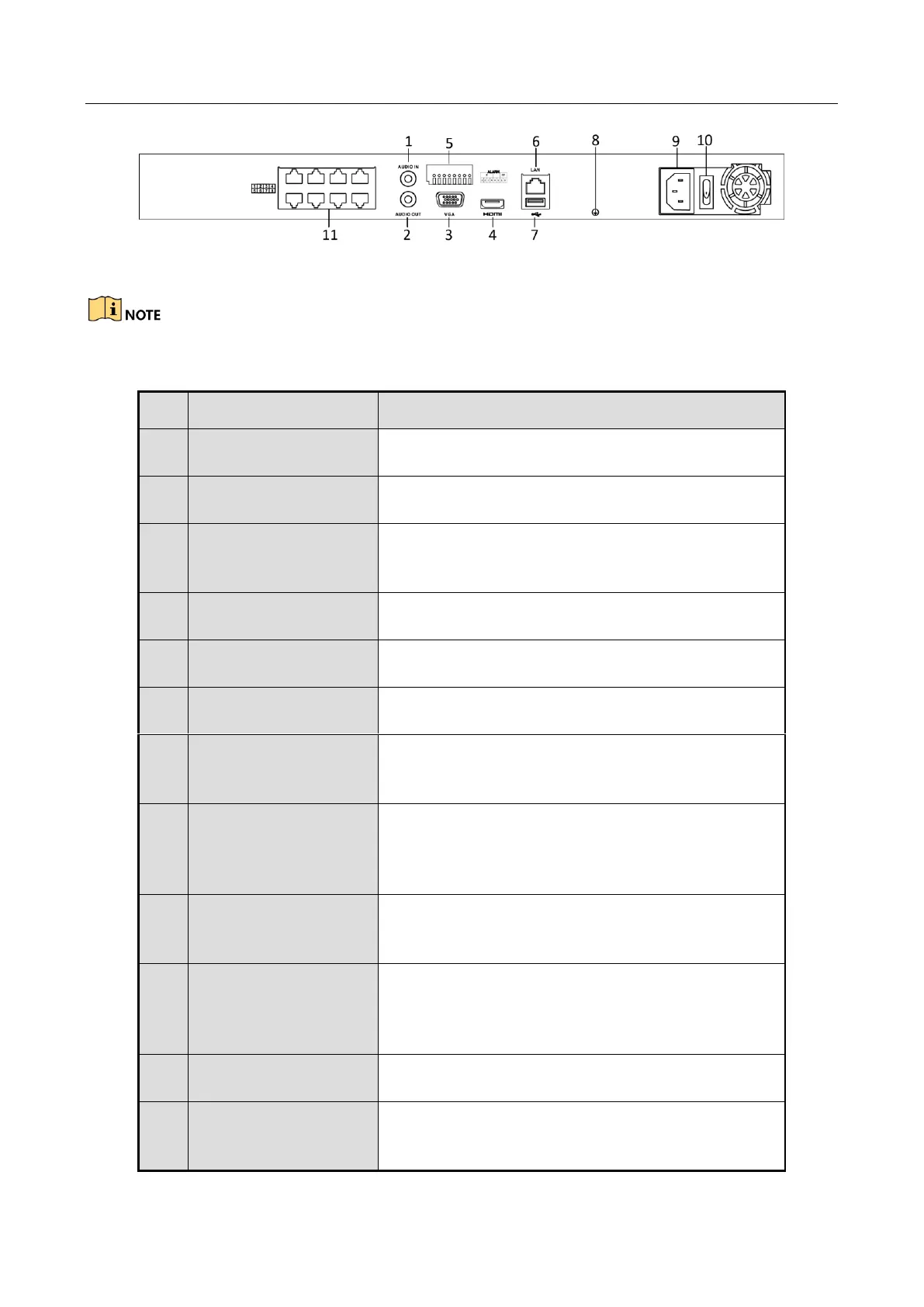

Figure 1-13 DS-7600NI-I2/8 P and DS-7600NI-K2/8 P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1-9 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
4
HDMI Interface
HDMI video output connector.
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts
up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and
DS-7600NI-K4, and 100 to 240 VAC for
DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
