Digital Video Recorder User Manual
121
Multicast Connection
When connecting the DVR and the POS machine via Multicast protocol, set the multicast address and
port.

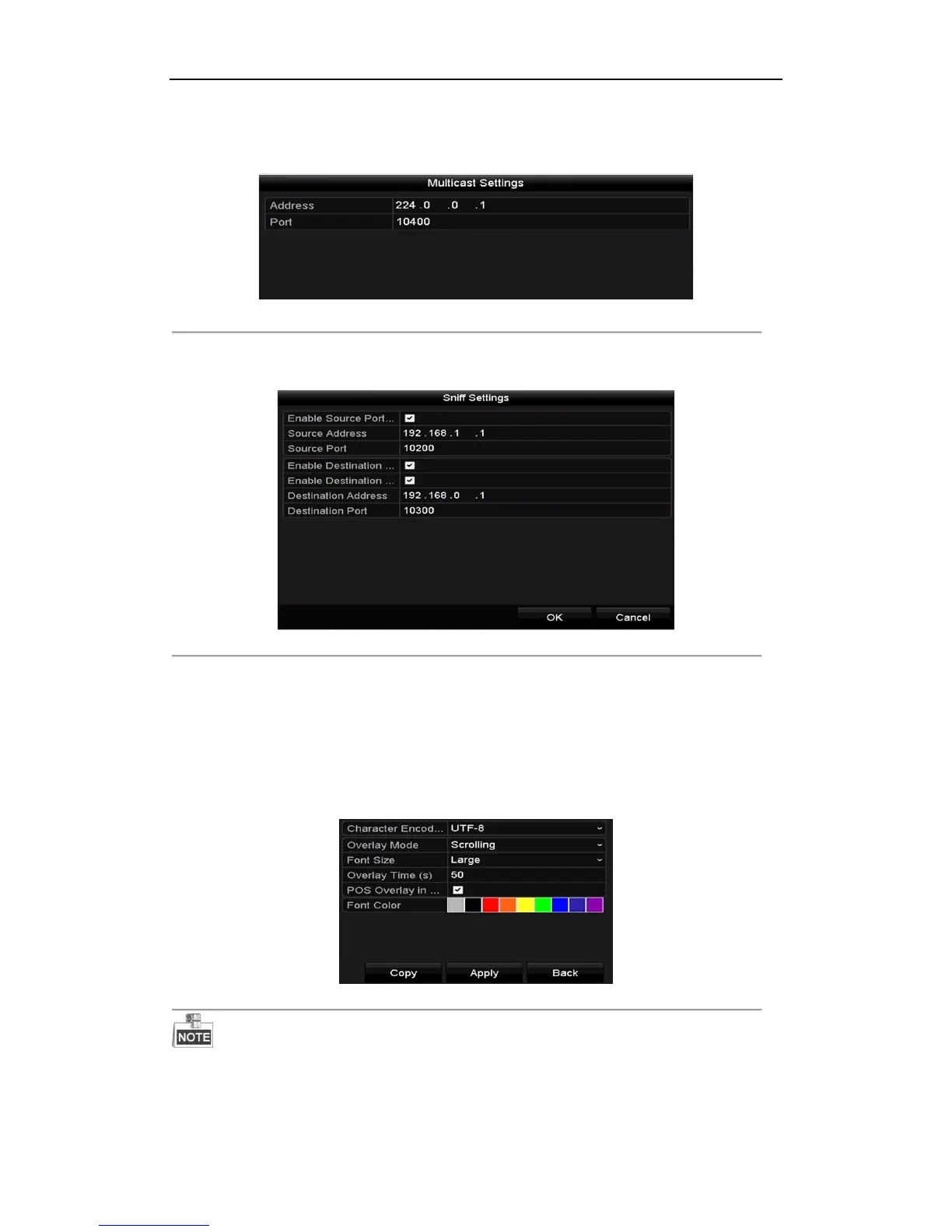

Figure 9. 7 Multicast Settings
Sniff Connection
Connect the DVR and the POS machine via Sniff. Configure the source address and destination address
settings.
Figure 9. 8 Sniff Settings
6. Set other parameters of characters overly.
1) Select the character encoding format from the drop-down list.
2) Select the overlay mode of the characters to display in scrolling or page mode.
3) Select the font size to small, medium or large.
4) Set the overlay time of the characters. The value ranges 5 -3600 sec.
5) (optional) Check the checkbox to enable the POS Overlay in Live View.
6) Select the font color for the characters.
Figure 9. 9 Overlay Character Settings
You can adjust the size and position of textbox on the preview screen of POS settings interface by dragging the
frame.
7. Click Apply to activate the settings.
8. (Optional) You can click the Copy button to copy the current settings to other POS (s).
