HIKVISION DS-7108HGHI-E1 - Configuring more Settings

Digital Video Recorder User Manual
191
16.3 Configuring More Settings
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Click the More Settings tab to enter the More Settings interface, as shown in Figure 16.3 and 16.4.

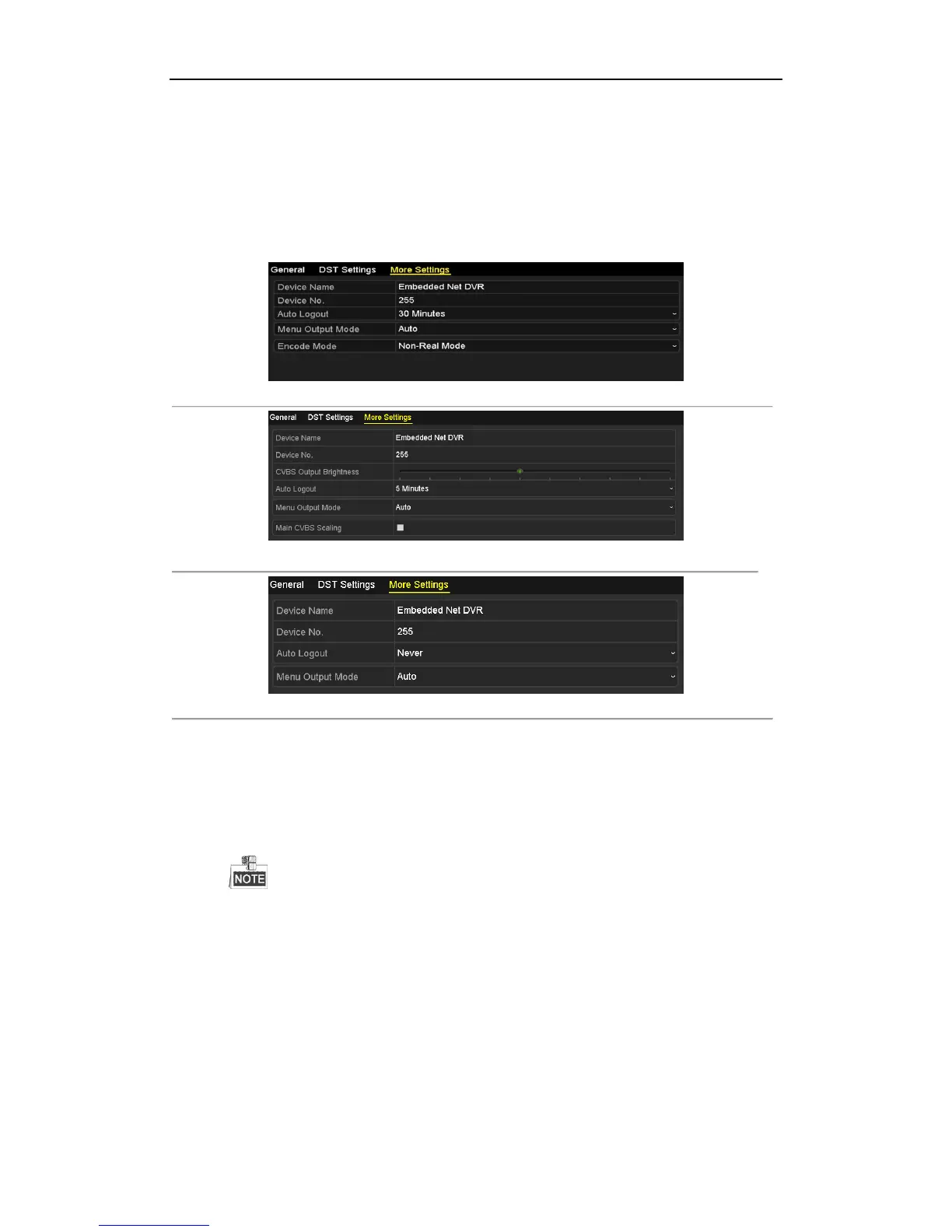

Figure 16. 3 More Settings Interface (1)
Figure 16. 4 More Settings Interface (2)
Figure 16. 5 More Settings Interface (3)
3. Configure the following settings:
• Device Name: Edit the name of DVR.
• Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1~255, and the
default No. is 255.
• Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, then
the system will exit from the current operation menu to live view screen after 5 minutes of menu
inactivity.
• CVBS Output Brightness: Adjust the video output brightness via the CVBS interface.
The CVBS Output is provided for the DS-7200HQHI-F/N, DS-7200HUHI-F/N, DS-7300HQHI-F4/N
and DS-8100HQHI-F8/N series DVR only.
• Menu Output Mode: You can choose the menu display on different video output.
• Encode Mode: For the DS-7100HGHI-E1, DS-7200HGHI-E1 and DS-7200HGHI-E2 models, you can
select the encode mode or non-real mode. When the non-real mode is selected, the max. frame rate
(Menu>Record>Parameters) can be set to 15fps only.
• Main CVBS Scaling: You can check the checkbox to enable main CVBS scaling.
4. Click the Apply button to save the settings.
