Digital Video Recorder User Manual
47

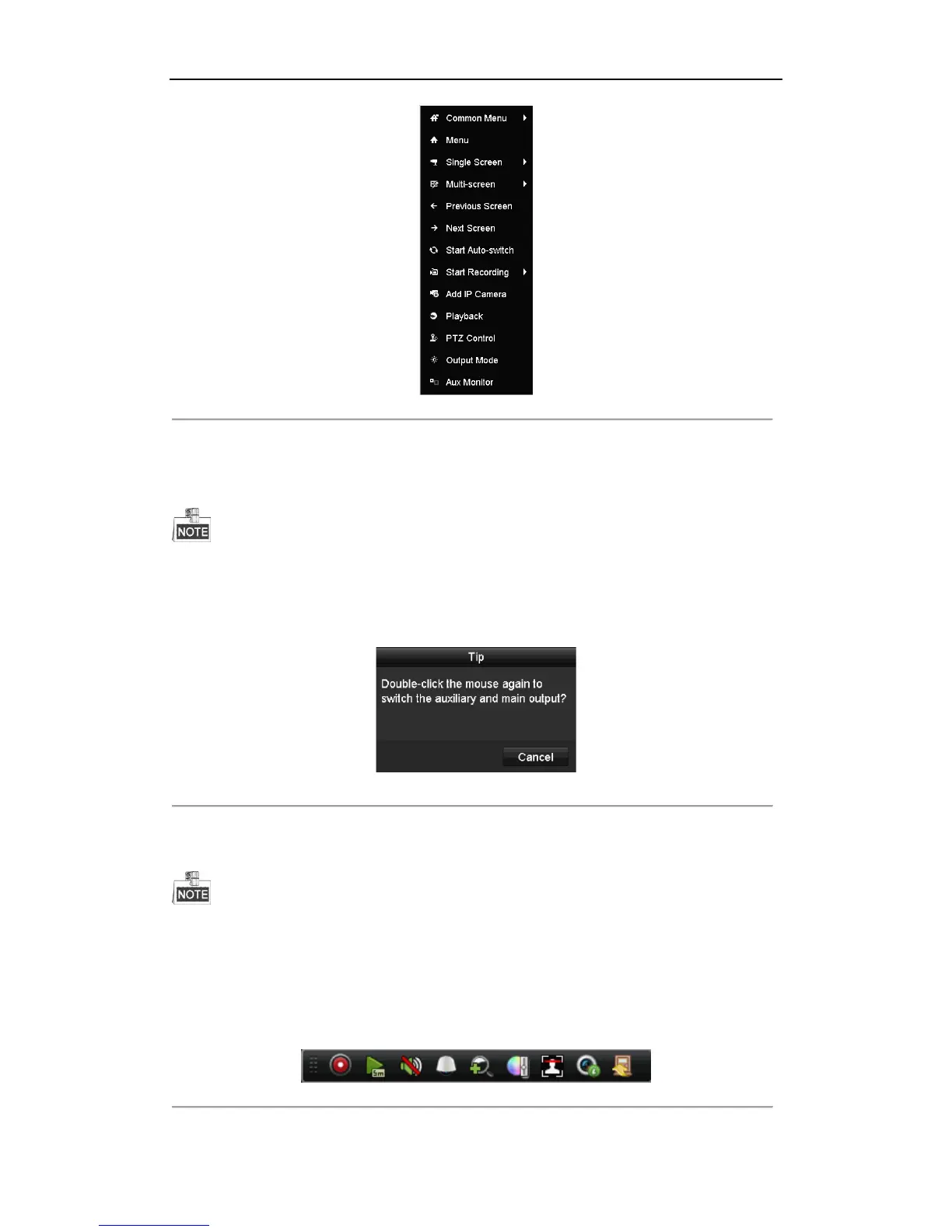

Figure 3. 1 Right-click Menu
3.2.2 Main/Aux Output Switching
Only the DS-7200HQHI-F/N, DS-7200HUHI-F/N, DS-7300HQHI-F/N and DS-8100HQHI-F/N series
support Aux/Main output switch.
When the HDMI/VGA output is configured as the main output, you can perform the following operation to
switch to CVBS output as the main output.
Steps:
1. Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following message box pops
up:
Figure 3. 2 Switch Main and Aux Output
2. Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to
cancel the operation.
3. Select the Menu Output Mode to Main CVBS from the right-click menu on the monitor.
4. On the pop-up message box, click Yes to restart the device to enable the CVBS output as the main output.
You can select the Menu Output Mode under Menu>Configuration>General>More Settings to Auto, or
HDMI/VGA and then restart the device to switch the main output back to HDMI/VGA output.
3.2.3 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you click the screen.
Figure 3. 3 Quick Setting Toolbar
You can refer to Table 3.4 for the description of Quick Setting Toolbar icons.
