HIKVISION DS-7108HGHI-E1 User Manual

Digital Video Recorder User Manual
13

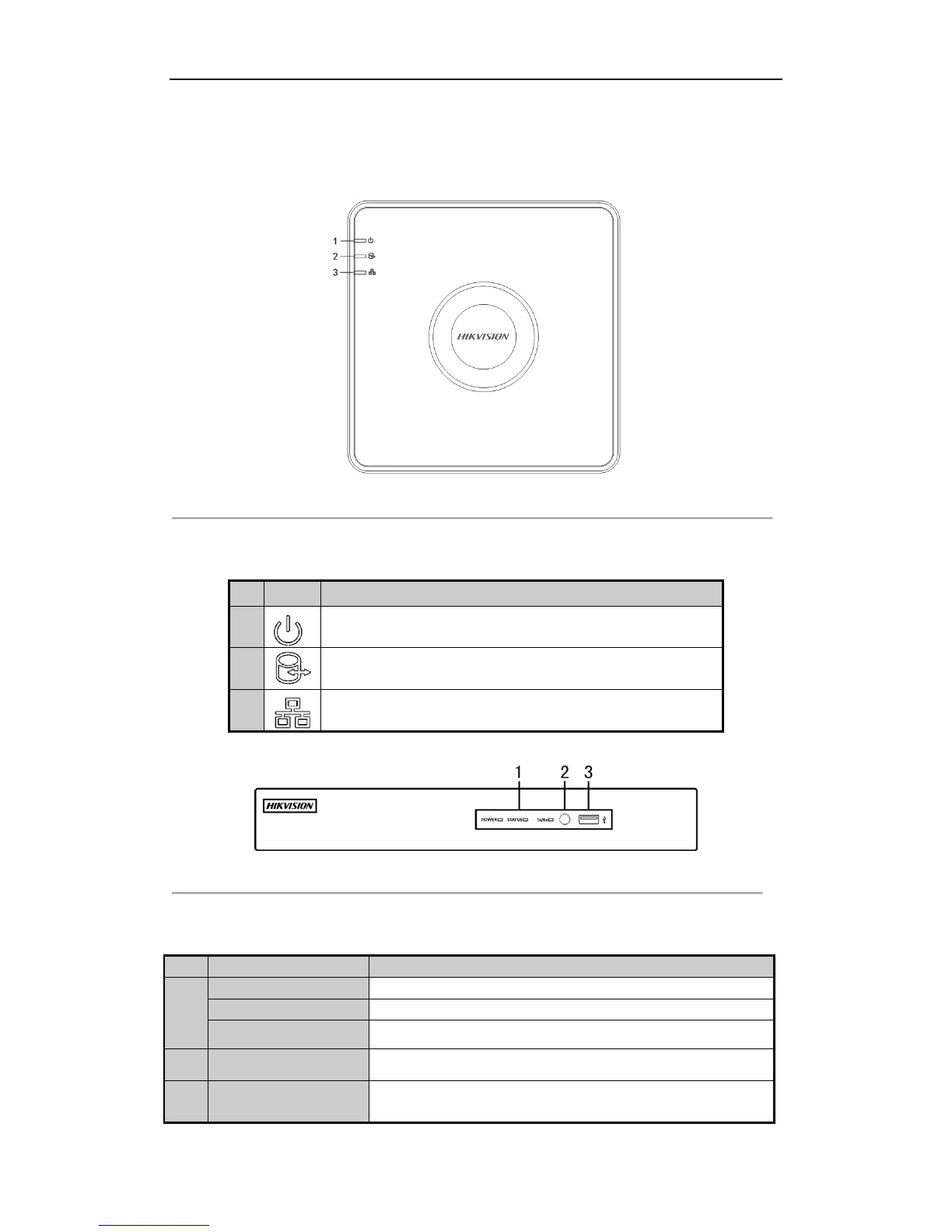

1.1 Front Panel
Front Panel 1:
Figure 1. 1 Front Panel of DS-7100
Please refer to Table 1.1 for the description of the front panel of DS-7100 series DVR.
Table 1. 1 Description of Front Panel
No.
Icon
Description
1
Turns red when DVR is powered up.
2
Turns red when data is being read from or written to HDD.
3
Flickers blue when network connection is functioning properly.
Front Panel 2:
Figure 1. 2 Front Panel of DS-7200HQHI and DS-7200HGHI
Please refer to Table 1.2 for the description of the front panel of DS-7200HQHI and DS-7200HGHI series DVR.
Table 1. 2 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns yellow when the power switch on the rear panel is turned on.
STATUS
Flickers red when data is being read from or written to HDD.
Tx/Rx
Flickers yellow when network connection is functioning properly.
2
IR Receiver
Receiver for IR remote
3
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).

HIKVISION DS-7108HGHI-E1 Specifications

General

Brand	HIKVISION
Model	DS-7108HGHI-E1
Category	DVR
Language	English
