HIKVISION DS-7108HGHI-E1 User Manual

Digital Video Recorder User Manual
14
Front Panel 3:

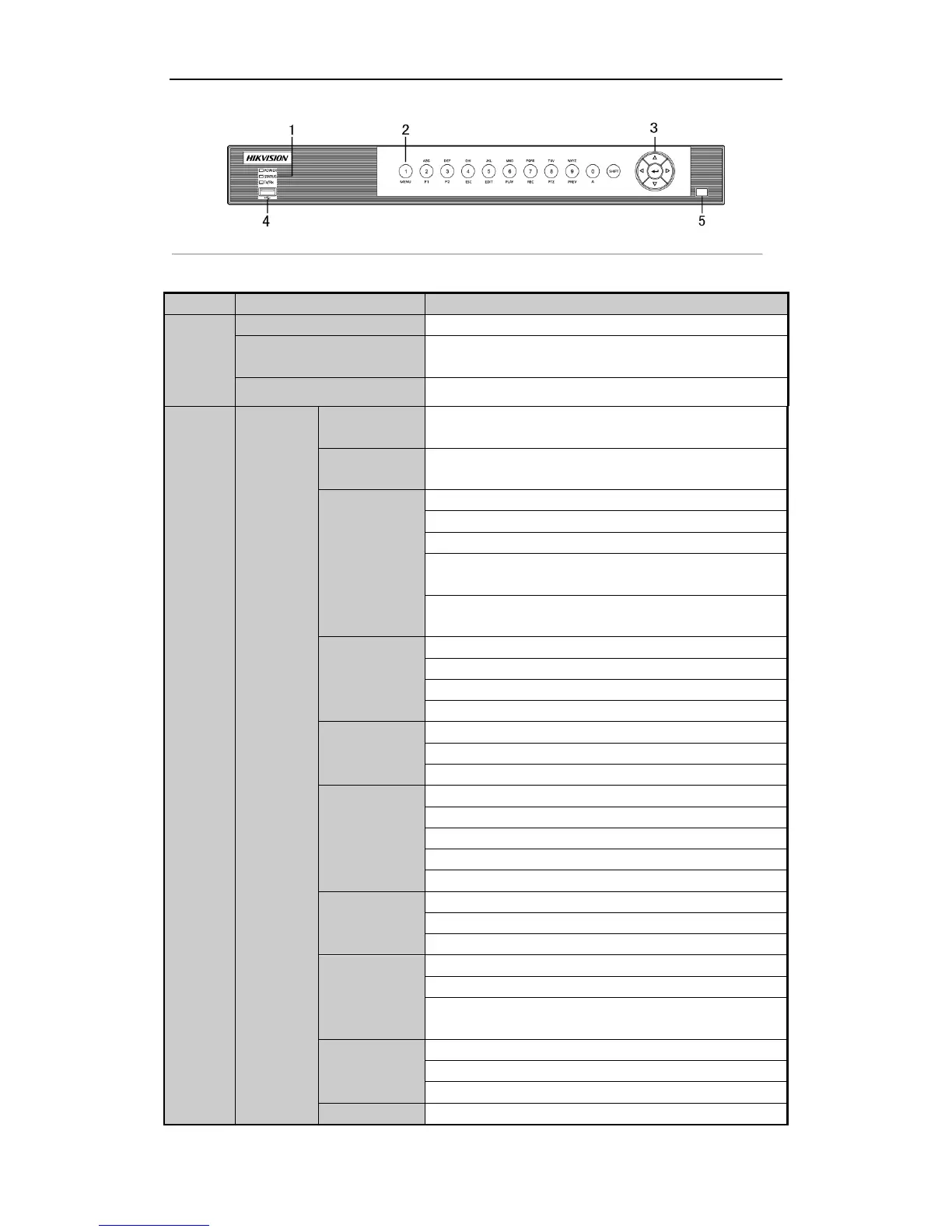

Figure 1. 3 Front Panel of DS-7200HUHI-F/N
Table 1. 3 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns yellow when the device s running.
STATUS
Flickers red when data is being read from or written to HDD, and
turns yellow when the SHIFT function is realized.
Tx/Rx
Flickers yellow when network connection is functioning properly.
2
Composite
Keys
SHIFT
Switches between the numeric or letter input and functions of the
composite keys.
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button to select all items in a list field;
Turns on/off PTZ light in PTZ Control mode, and use it to zoom
out the image;
Switches between main and spot video output in live view or
playback mode.
3/DEF/F2
Enters numeral “3”;
Enters letters “DEF”;
Uses the F2 button to change the tab pages;
Zooms in the image in PTZ control mode.
4/GHI/ESC
Enters numeral “4”;
Enters letters “GHI”;
Exits and back to the previous menu.
5/JKL/EDIT
Enters numeral “5”;
Enters letters “JKL”;
Deletes characters before cursor;
Checks the checkbox and select the ON/OFF switch;
Starts/stops record clipping in playback.
6/MNO/PLAY
Enters numeral “6”;
Enters letters “MNO”;
Accesses to playback interface in Playback mode.
7/PQRS/REC
Enters numeral “7”;
Enters letters “PQRS”;
Accesses to manual record interface;
Manually enables/disables record.
8/TUV/PTZ
Enters numeral “8”;
Enters letters “TUV”;
Accesses PTZ control interface.
9/WXYZ/PREV
Enters numeral “9”;
