Digital Video Recorder User Manual
15
No.
Name
Function Description
Enters letters “WXYZ”;
Multi-channel display in live view.
0/A
Enters numeral “0”;
Shifts the input methods in the editing text field. (Upper and
lowercase, alphabet, symbols or numeric input).
3
DIRECTION
Navigates between different fields and items in menus.
Uses the Up and Down buttons to speed up and slow down the
playing of video files in Playback mode.
The Left and Right button will select the next and previous
record files.
Cycles through channels in Live View mode.
Controls the movement of the PTZ camera in PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox.
Plays or pauses the playing of video files in Playback mode.
Advances the video by a single frame in single-frame Playback
mode.
Stops/starts auto switch in Auto-switch mode.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
5
IR Receiver
Receiver for IR remote control.
Front Panel 4:

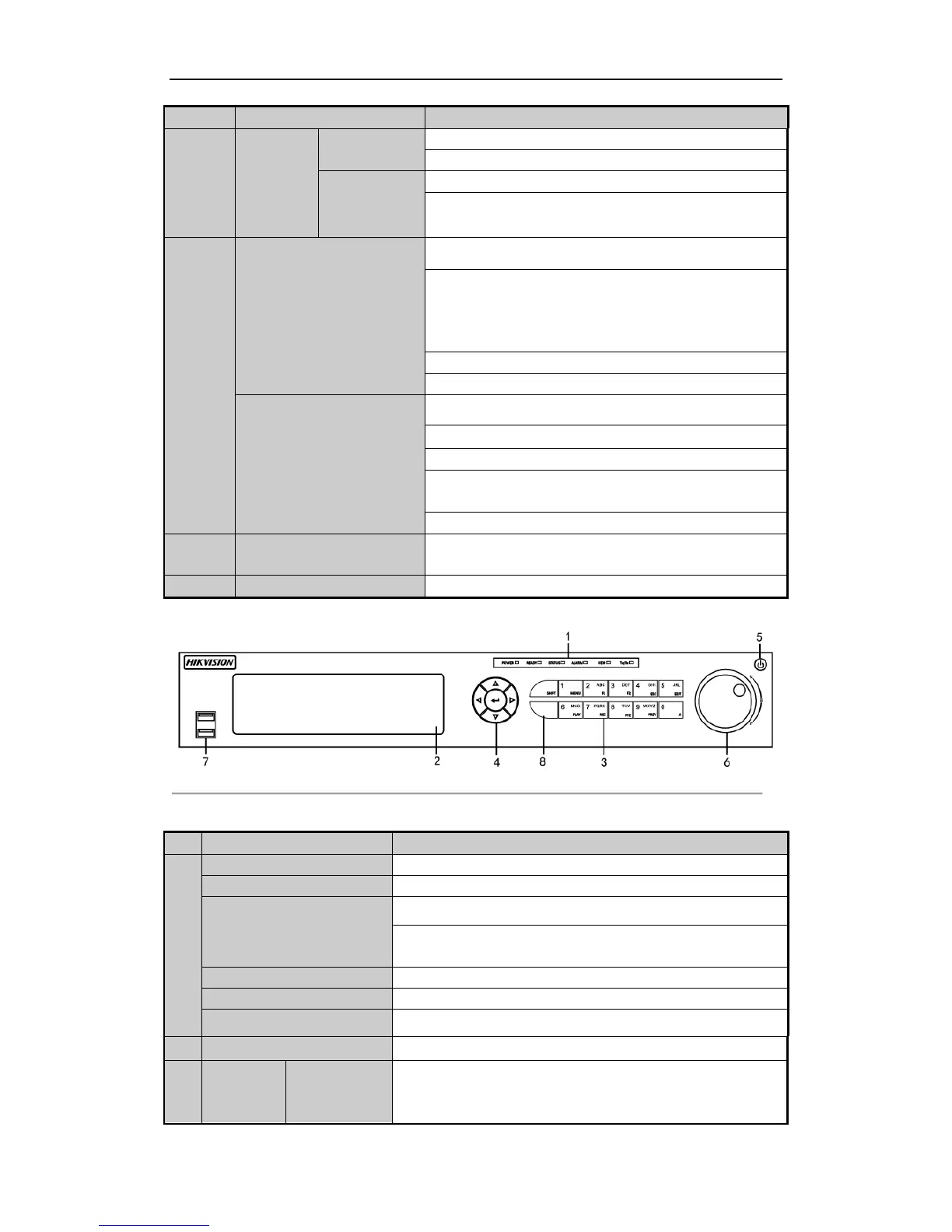

Figure 1. 4 Front Panel of DS-7300HQHI-F/N
Table 1. 4 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns green when DVR is powered up.
READY
Turns green, indicating that the DVR is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR remote
and keyboard is used at the same time.
ALARM
Turns red when a sensor alarm is detected.
HDD
Flickers in red when data is being read from or written to HDD.
Tx/Rx
Flickers in green when network connection is functioning properly.
2
DVD-R/W
Slot for DVD-R/W.
3
Composite
Keys
SHIFT
Switches between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out; Realize
functions when the light is red.)
