Digital Video Recorder User Manual
17
Plays or pauses the playing of video files in Playback mode.
Advances the video by a single frame in single-frame Playback mode.
Stops/starts auto switch in Auto-switch mode.
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the playback mode.
Controls the movement of the PTZ camera in PTZ control mode.
Moves the active selection up and down in a menu.
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
Receiver for IR remote control.
Front Panel 4:

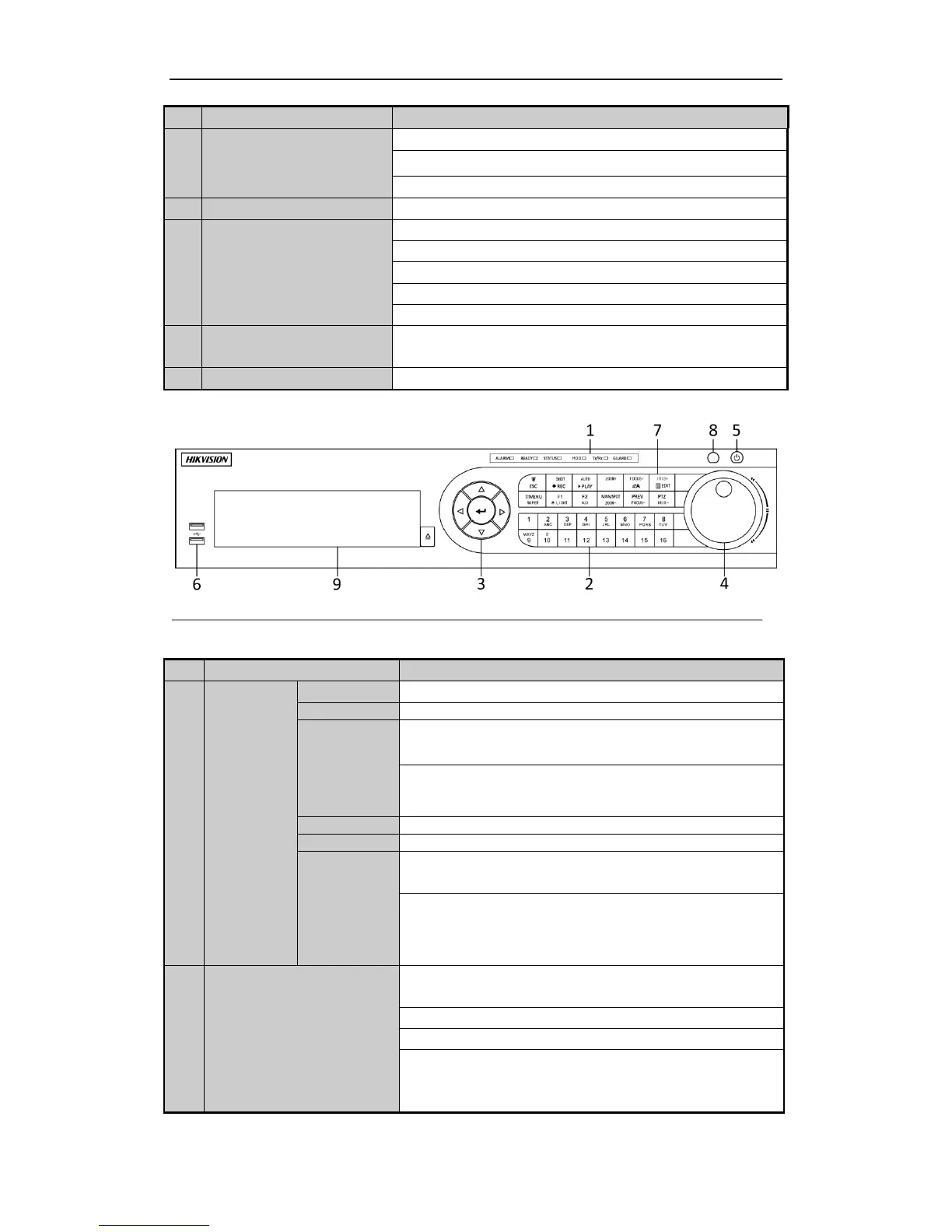

Figure 1. 5 Front Panel of DS-8100HQHI-F/N
Table 1. 5 Description of Front Panel
Turns red when a sensor alarm is detected.
Turns green, indicating that the DVR is functioning properly.
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR remote
and keyboard is used at the same time.
Flickers in red when data is being read from or written to HDD.
Flickers in green when network connection is functioning properly.
Turns blue when the device is in armed status; at this time, an alarm
is enabled when an event is detected.
Turns off when the device is unarmed. The arm/disarm status can be
changed by pressing and holding on the ESC button for more than 3
seconds in live view mode.
Switches to the corresponding channel in live view or PTZ control
mode.
Inputs numbers and characters in edit mode.
Switches between different channels in playback mode.
Turns blue when the corresponding channel is recording; turns red
when the channel is in network transmission status; turns pink when
the channel is recording and transmitting.
