Digital Video Recorder User Manual
25

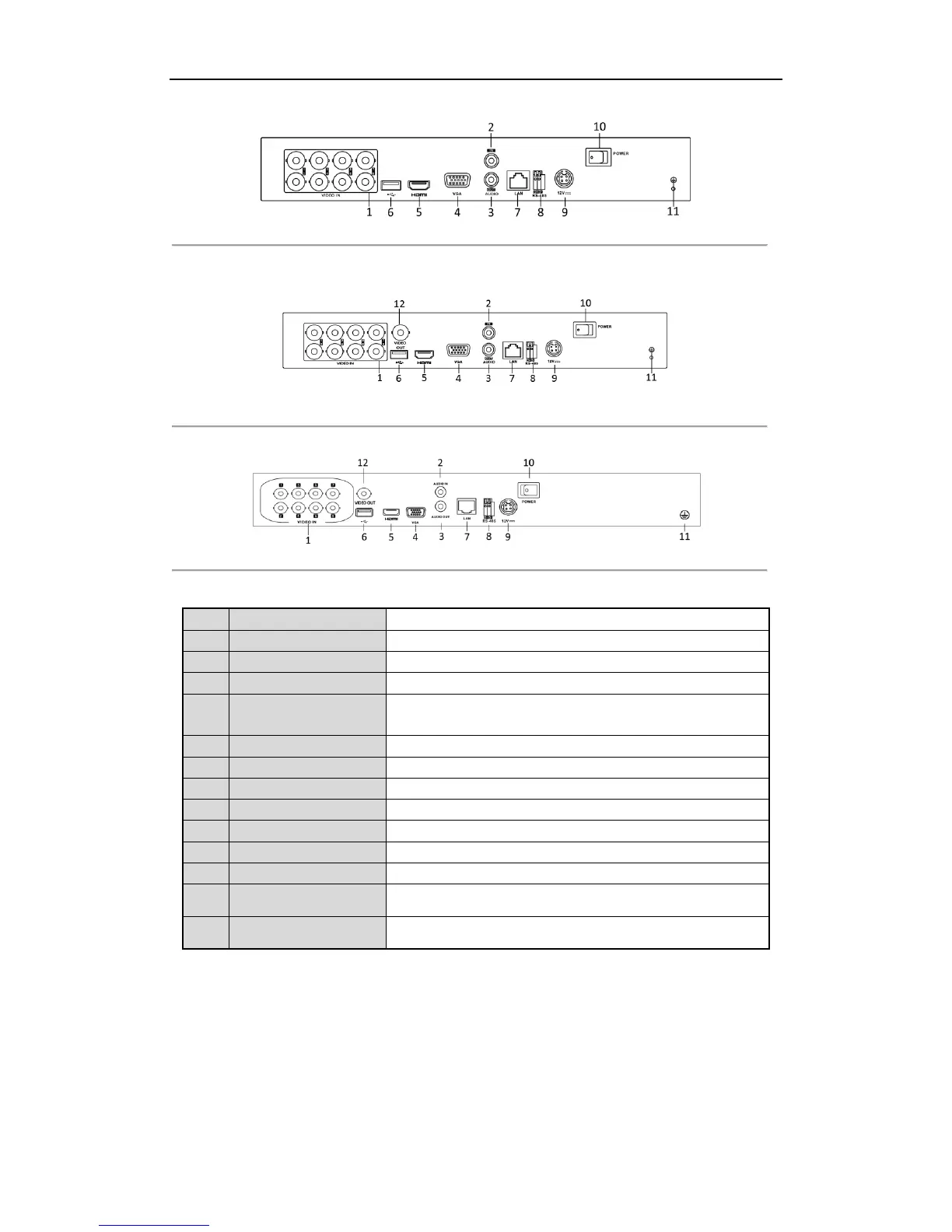

Rear Panel 3:
Figure 1. 10 Rear Panel of DS-7200HGHI-E1/E2
Rear Panel 4:
Figure 1. 11 Rear Panel of DS-7200HQHI-F1/N
Rear Panel 5:
Figure 1. 12 Rear Panel of DS-7200HQHI-F2/N
Table 1. 11 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector
4
VGA
DB15 connector for VGA output. Display local video output and
menu.
5
HDMI
HDMI video output connector.
6
USB Port
Universal Serial Bus (USB) port for additional devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
12VDC power supply.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
ALARM
Connector for alarm input/output.
