HIKVISION DS-7616NI-Q2/16P User Manual

Network Video Recorder User Manual
123

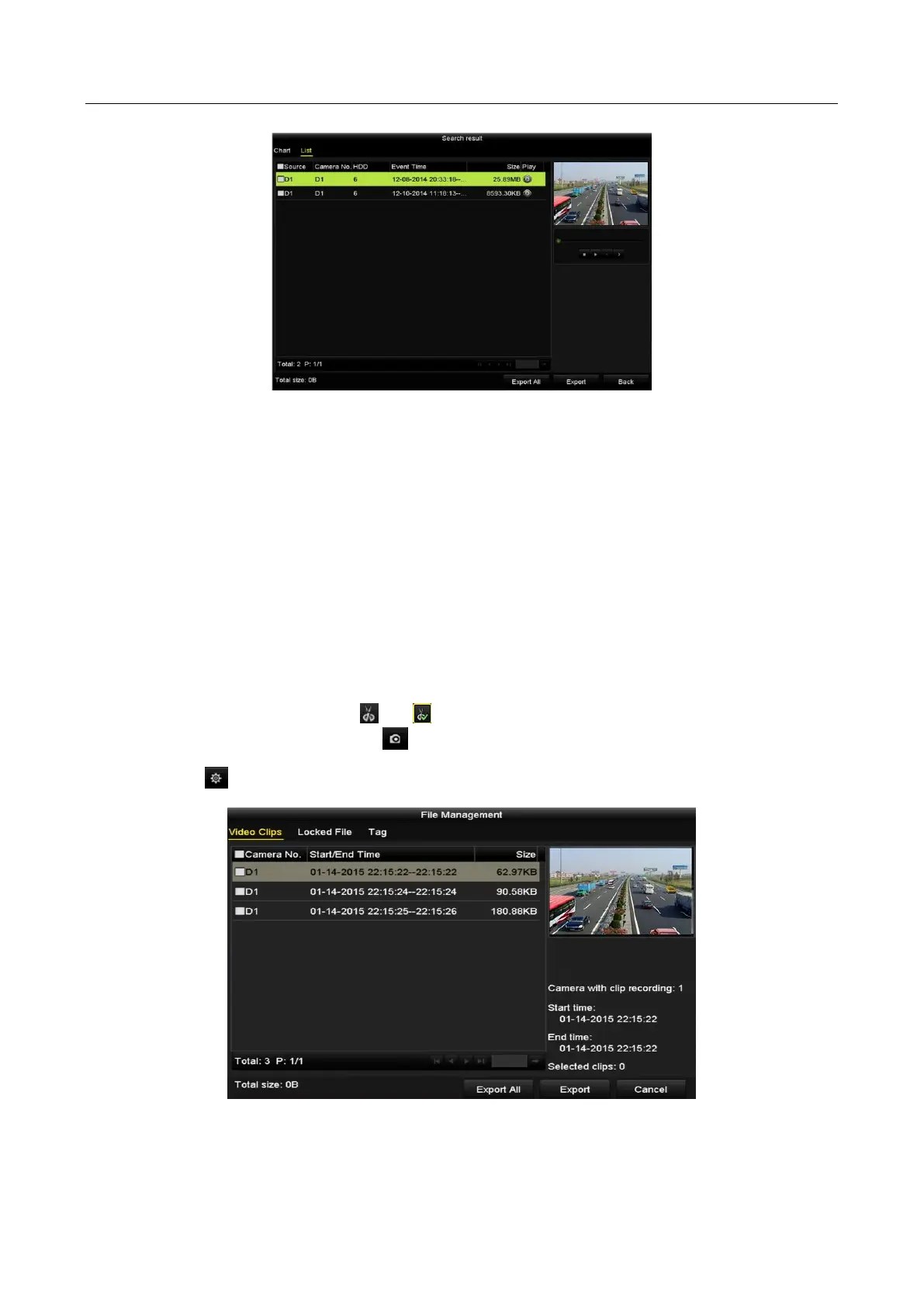

Figure 7-10 Result of Event Search
Step 6 Export the video files. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video
Search for details.
7.1.4 Backing up Video Clips
Purpose:
You may also select video clips in playback mode to export directly during Playback, using USB
devices (USB flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
Step 1 Enter Playback interface.
Please refer to Chapter 6.1 Playing Back Record Files.
Step 2 During playback, use buttons or in the playback toolbar to start or stop clipping
record file (s); or use the button to capture pitcures.
Step 3 Click the to enter the file management interface.
Figure 7-11 Video Clips or Captured Pictures Export Interface

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
