Network Video Recorder User Manual
152

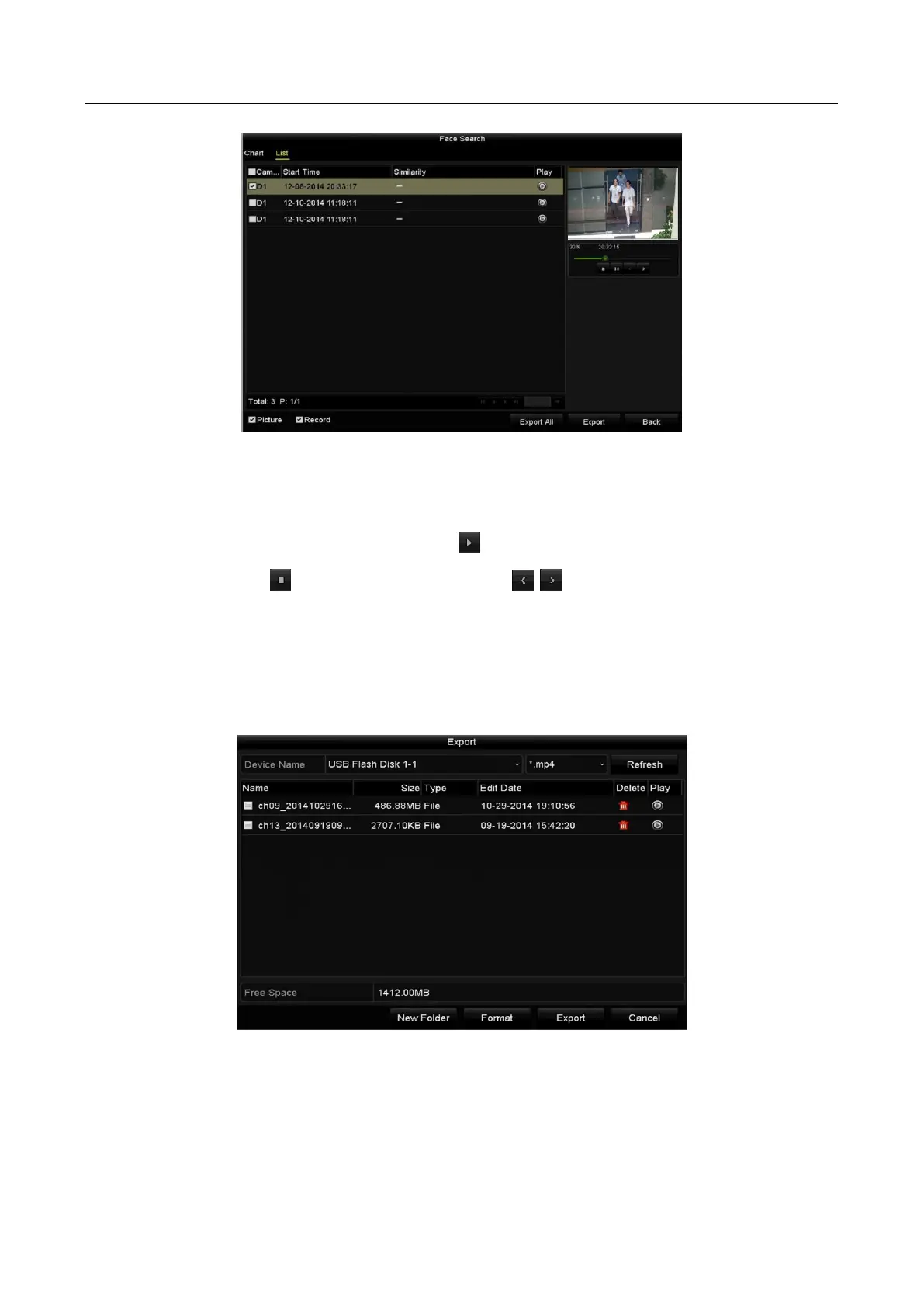

Figure 10-2 Face Search Interface
Step 5 Play the face picture related video file.
You can double click on a face picture to play its related video file in the view window on the
top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 6 If you want to export the captured face pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all face pictures to the storage device.
Please refer to Chapter7 Backup for the operation of exporting files.
Figure 10-3 Export Files
10.2 Behavior Search
Purpose:

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
