Network Video Recorder User Manual
54
2.3.5 Configuring PoE Interface
This chapter is only applicable for the /P series NVR.
When it requires long-distance PoE transmission (100 to 300 m), you can configure the PoE
channel to the long network cable mode.
Step 1 Enter the PoE Configuration interface.
Menu> Camera> Camera>PoE Configuration
Step 2 Click the radio button of each POE channel to switch and . You can click the radio
button of PoE Channel to enable or disable the long network cable mode.
ON: Long-distance (100 - 300 meters) network transmissions via POE interface.
OFF: Short-distance (< 100 meters) network transmission via POE interface.

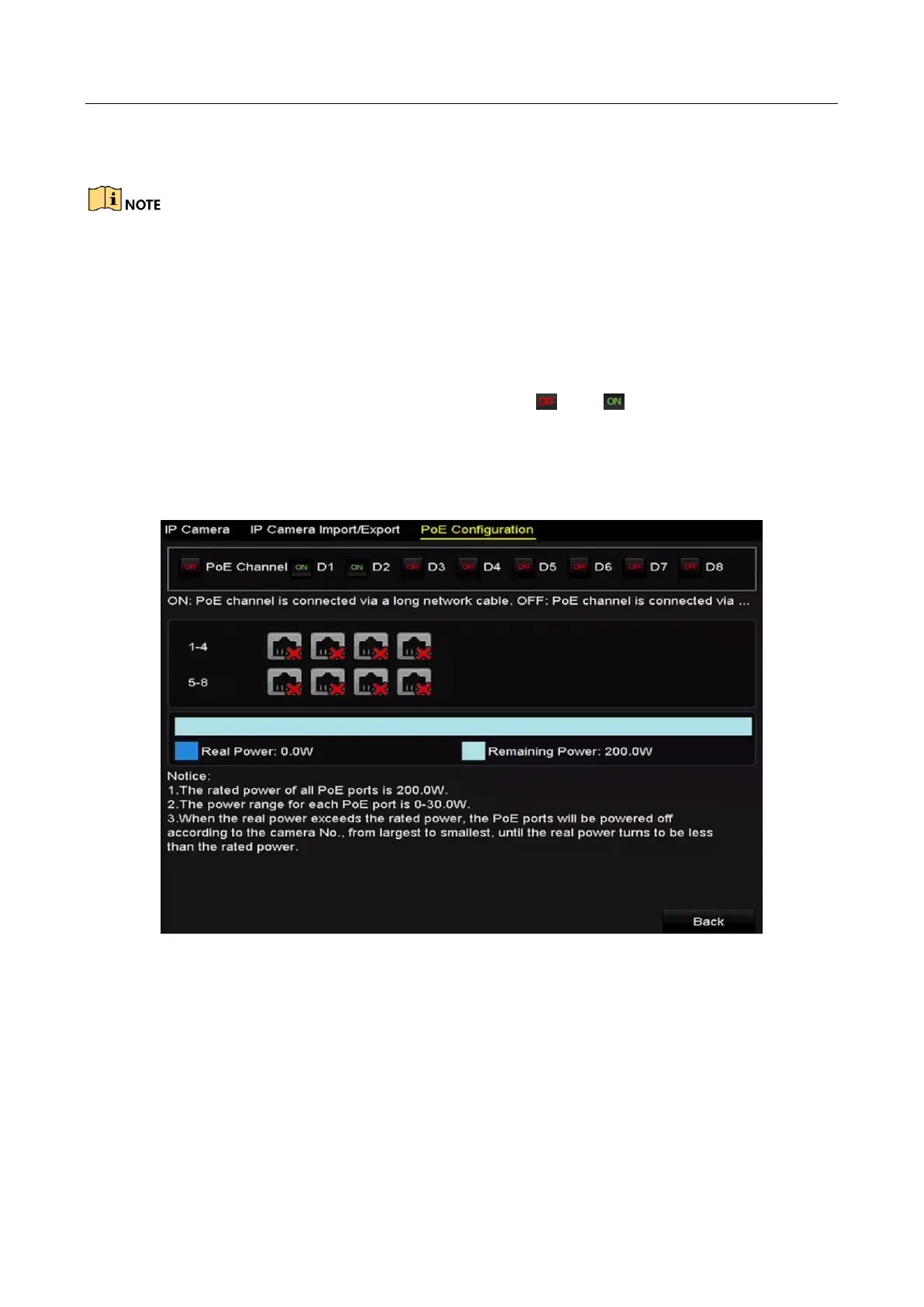

Figure 2-40 Configure PoE Interface

Table of Contents

Other manuals for HIKVISION DS-7616NI-Q2/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7616NI-Q2/16P and is the answer not in the manual?

HIKVISION DS-7616NI-Q2/16P Specifications

General IconGeneral
DHCP clientYes
Input bandwidth160 Mbit/s
Output bandwidth80 Mbit/s
Maximum resolution3840 x 2160 pixels
Video input channels16 channels
Alarm output channels1
Supported resolutions3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes720p, 1080p
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product colorBlack
Rack capacity1U
AC input voltage100 - 240 V
Power consumption (max)280 W
Total Power over Ethernet (PoE) budget150 W
Wi-FiNo
HDD interfaceSerial ATA
Maximum storage capacity16 TB
Number of HDDs supported2
Total installed storage capacity1000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth315 mm
Width385 mm
Height52 mm
Weight3000 g
