11.4 Configuring Network Detection
Purpose:
You can obtain network connecting status of NVR through the network detection function,
including network delay, packet loss, etc.
11.4.1 Testing Network Delay and Packet Loss
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection menu, as shown in Figure
11-29.

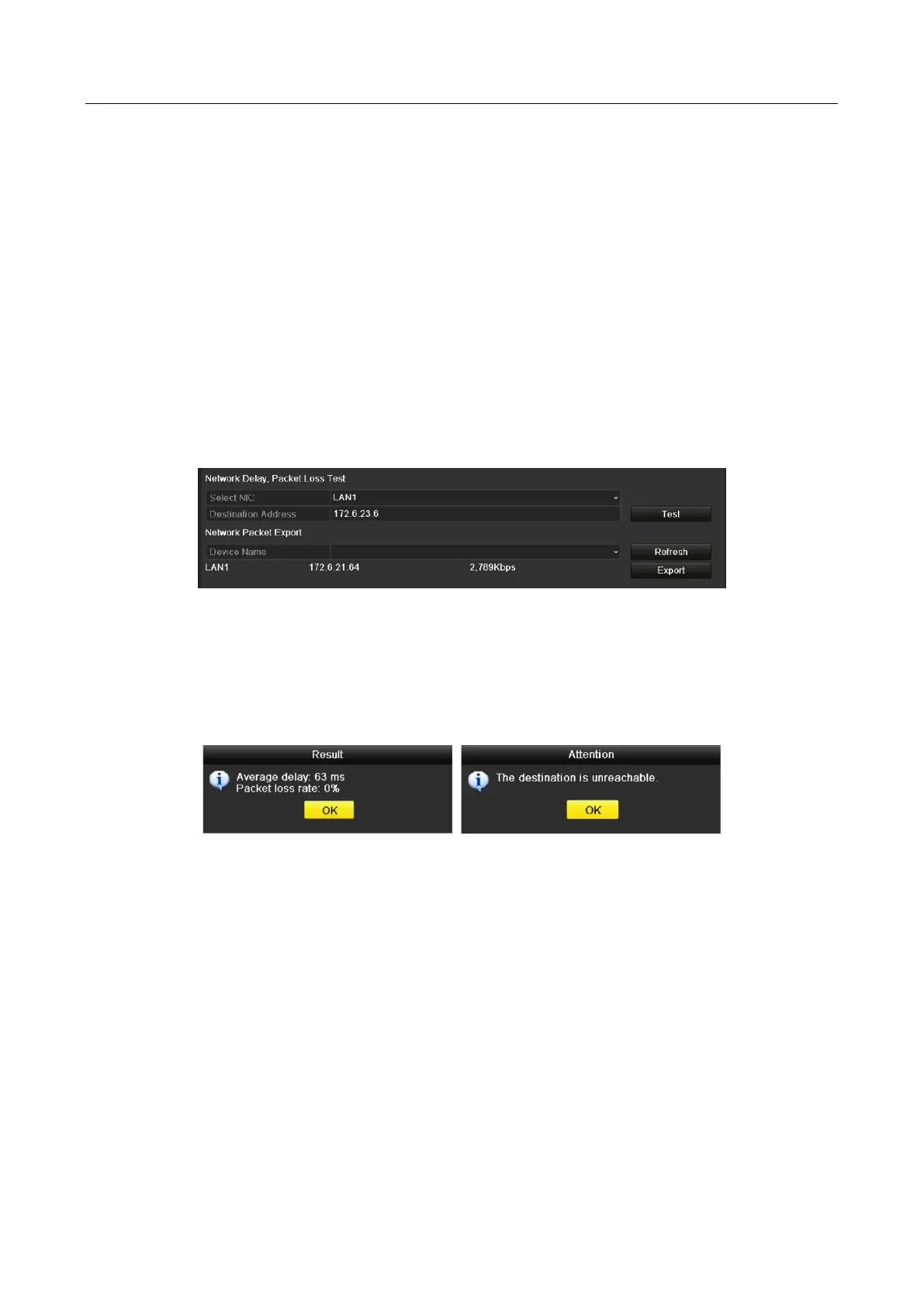

Figure 11-29 Network Detection Interface
Step 3 Enter the destination address in the text field of Destination Address.
Step 4 Click Test button to start testing network delay and packet loss. The testing result pops up
on the window. If the testing is failed, the error message box will pop up as well. Refer to
Figure 11-30.
Figure 11-30 Testing Result of Network Delay and Packet Loss
11.4.2 Exporting Network Packet
Purpose:
By connecting the NVR to network, the captured network data packet can be exported to USB-flash
disk, SATA/eSATA, DVD-R/W and other local backup devices.
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Select the backup device from the dropdown list of Device Name, as shown in Figure 11-31.

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
