Network Video Recorder User Manual
188
12.6 Checking HDD Status
Purpose:
You may check the status of the installed HDDs on NVR so as to take immediate check and
maintenance in case of HDD failure.
Checking HDD Status in HDD Information Interface
Step 1 Enter the HDD Information interface.
Menu > HDD>General

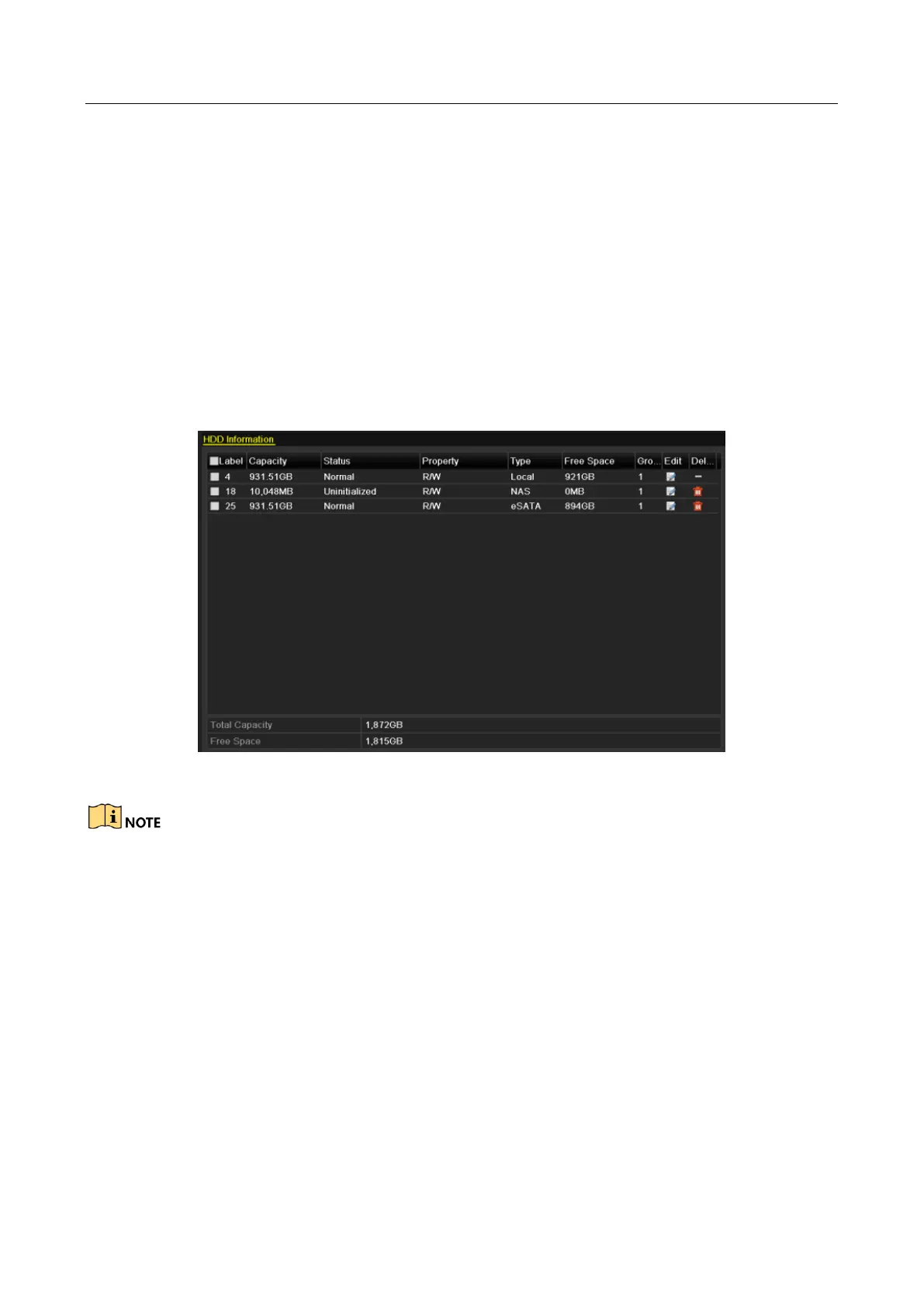

Step 2 Check the status of each HDD which is displayed on the list, as shown in Figure 12-23.
Figure 12-23 View HDD Status (1)
If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or
Abnormal, please initialize the HDD before use. And if the HDD initialization is failed, please
replace it with a new one.
Checking HDD Status in HDD Information Interface
Step 3 Enter the System Information interface.
Menu >Maintenance > System Info
Step 4 Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure
12-24.
