Network Video Recorder User Manual
73

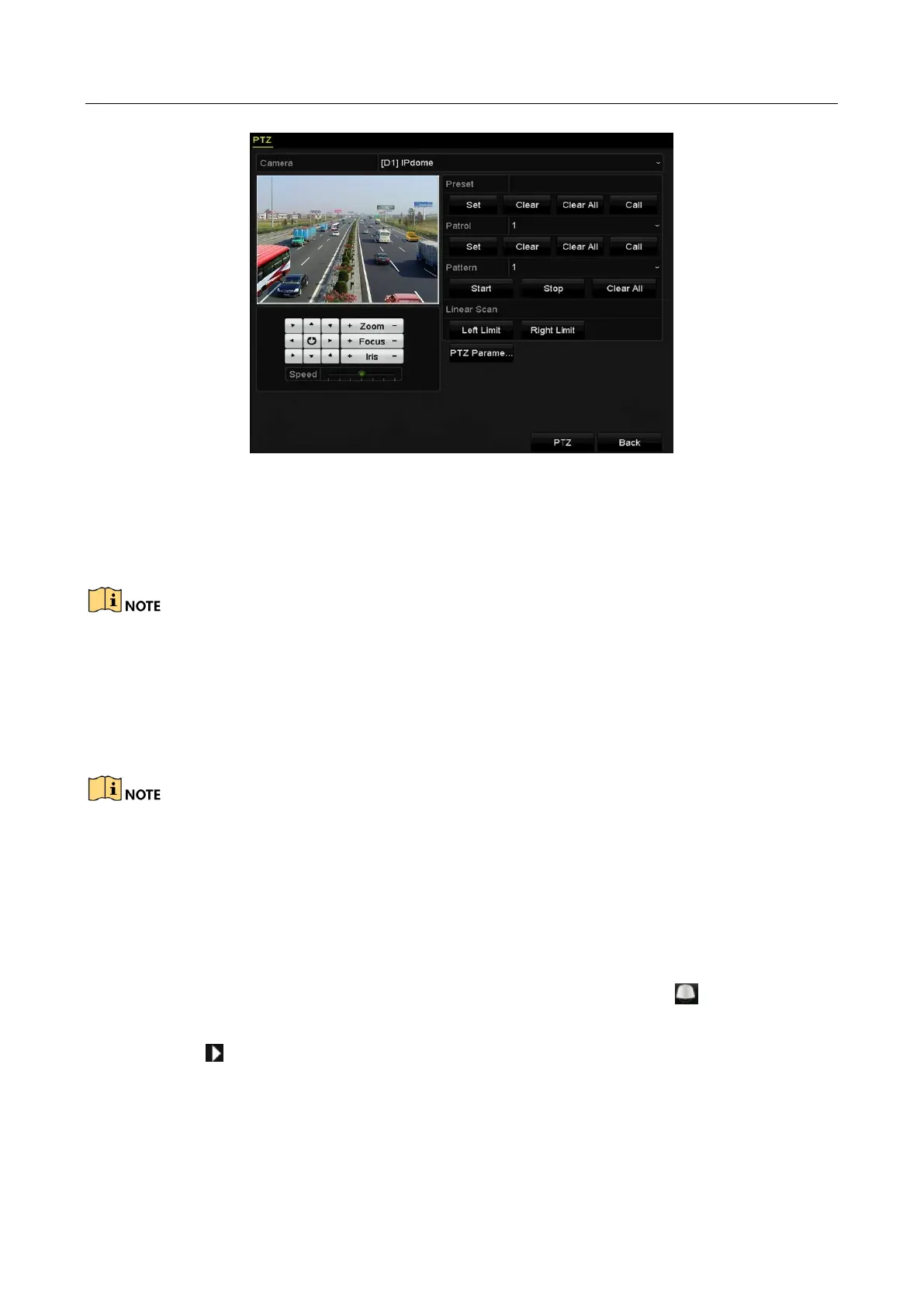

Figure 4-10 PTZ Settings
Step 2 Use the directional button to wheel the camera to the location where you want to set the
limit, and click the Left Limit or Right Limit button to link the location to the corresponding
limit.
The speed dome starts linear scan from the left limit to the right limit, and you must set the left
limit on the left side of the right limit, as well the angle from the left limit to the right limit should
be no more than 180º.
4.2.8 Calling Linear Scan
Before operating this function, make sure the connected camera supports the linear scan and is in
HIKVISION protocol.
Purpose:
Follow the procedure to call the linear scan in the predefined scan range.
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar to enter the PTZ setting menu in live view mode.
Step 2 Click the button to show the one-touch function of the PTZ control.

Table of Contents

Other manuals for HIKVISION DS-7616NI-Q2/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7616NI-Q2/16P and is the answer not in the manual?

HIKVISION DS-7616NI-Q2/16P Specifications

General IconGeneral
DHCP clientYes
Input bandwidth160 Mbit/s
Output bandwidth80 Mbit/s
Maximum resolution3840 x 2160 pixels
Video input channels16 channels
Alarm output channels1
Supported resolutions3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes720p, 1080p
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product colorBlack
Rack capacity1U
AC input voltage100 - 240 V
Power consumption (max)280 W
Total Power over Ethernet (PoE) budget150 W
Wi-FiNo
HDD interfaceSerial ATA
Maximum storage capacity16 TB
Number of HDDs supported2
Total installed storage capacity1000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth315 mm
Width385 mm
Height52 mm
Weight3000 g
