HIKVISION DS-7616NI-Q2/16P User Manual

Network Video Recorder User Manual
16
Table 1-2 Panel Description

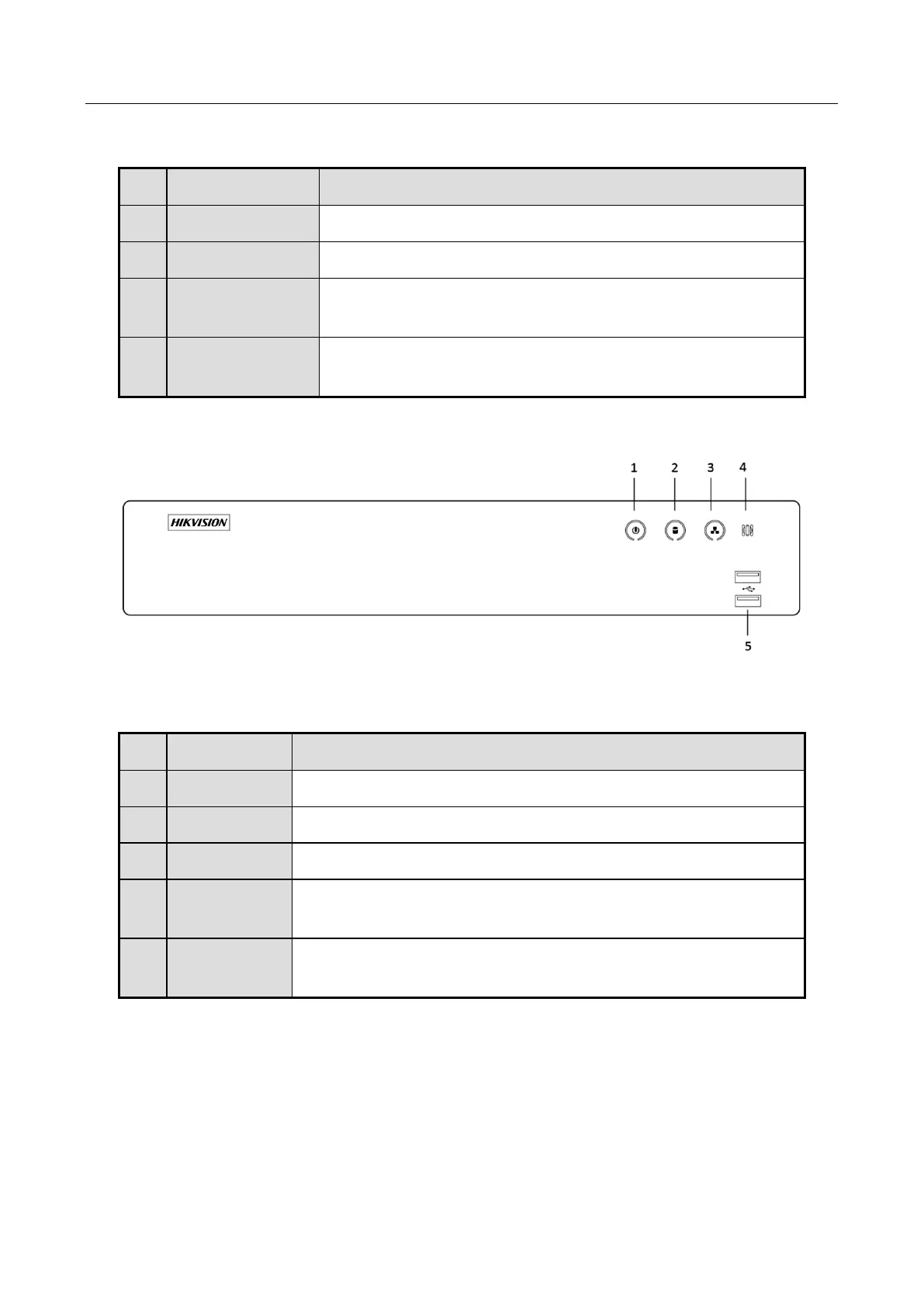

DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series
Figure 1-3 DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series
Table 1-3 Panel Description
1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote control, shown in Figure 1-4.
No.
Name
Connections
1
POWER
Turns green when device is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Connections
1
POWER
Turns white when device is powered up.
2
HDD
Flickers white when data is being read from or written to HDD.
3
Tx/Rx
Flickers white when network connection is functioning properly.
4
Infrared
Receiver
Receiver for IR remote control.
5
USB Interface
Universal Serial Bus (USB) port for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
