HIKVISION DS-7616NI-Q2/16P User Manual

Network Video Recorder User Manual
165

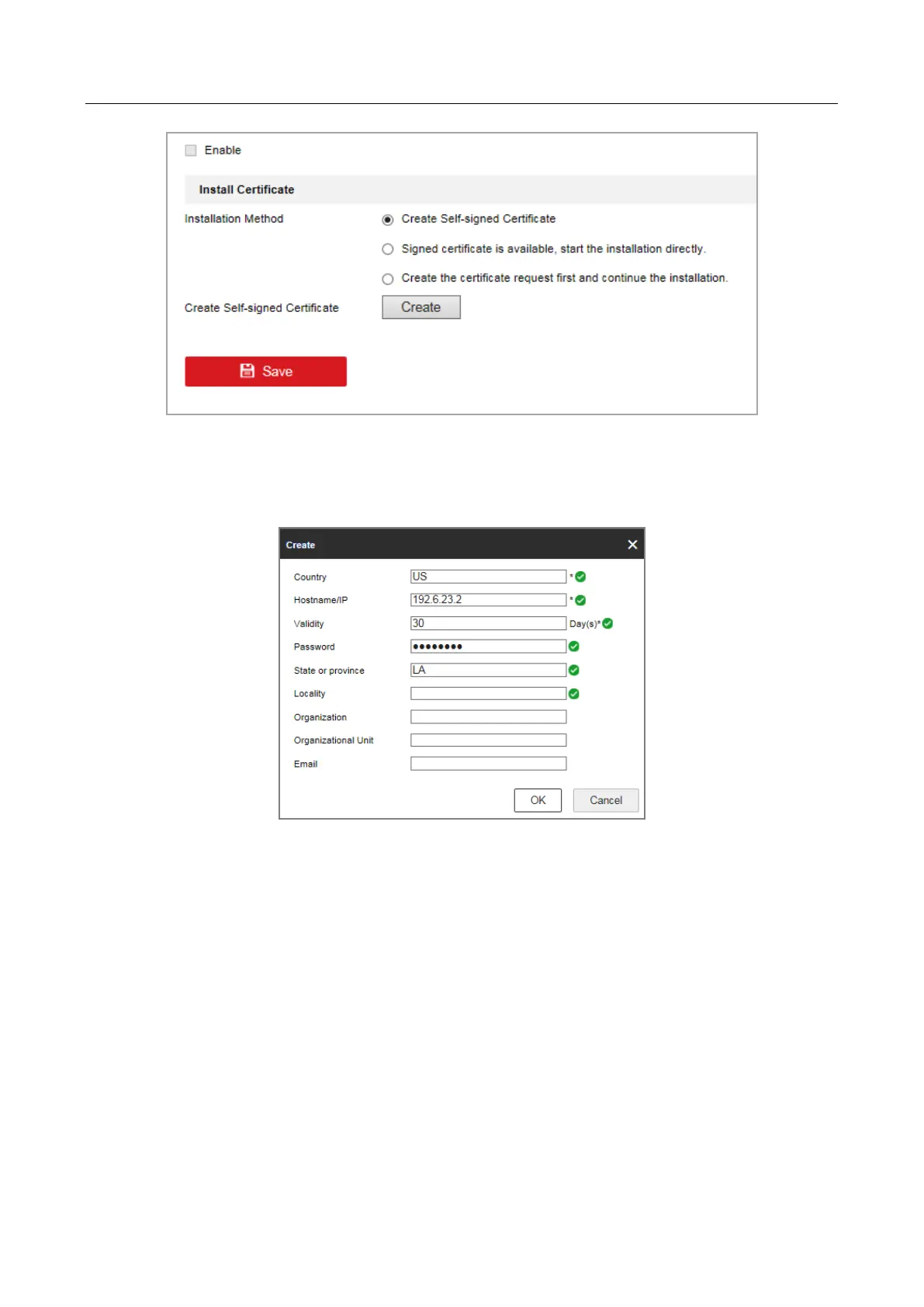

Figure 11-16 HTTPS Settings
OPTION 1: Create the self-signed certificate
1) Click the Create button to create the following dialog box.
Figure 11-17 Create Self-signed Certificate
2) Enter the country, host name/IP, validity and other information.
3) Click OK to save the settings.
OPTION 2: Create the authorized certificate
1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for
signature.
3) After receiving the signed valid certificate, import the certificate to the device.
OPTION 3: Install the available certificate
1) Click Browse to locate the certificate file from your local directory.

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
