 Enable Audio Output: Enables/disables audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Designates the output to show event video.
 Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
Step 2 Set cameras order.

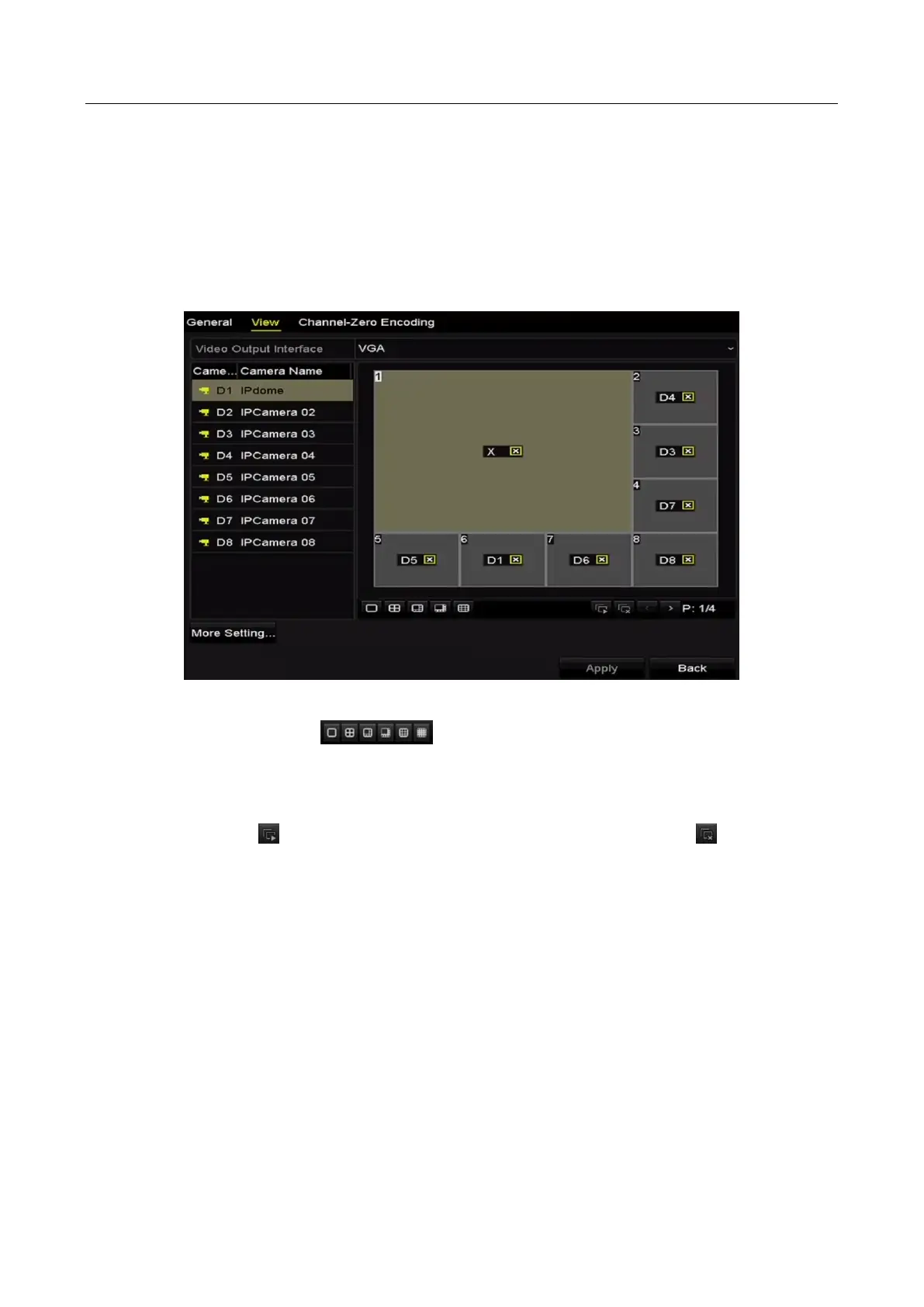

Figure 3-8 Live View- Camera Order
1) Select a View mode in , including 1/4/6/8/16-window division modes are
supported depending on different models.
2) Select the small window, and double-click on the channel number to display the channel
on the window.
3) You can click button to start live view for all the channels and click to stop all the
live view.
4) Click the Apply button to save the setting.
You can also click-and-drag the camera to the desired window on the live view interface to set
the camera order.
Step 3 Set the stream type for live view of camera.
1) Click the More Settings to enter the more settings interface.
2) Select the camera to configure from the list.
3) Select the stream type to main stream, sub-stream or Auto.

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
