Network Video Recorder User Manual
114

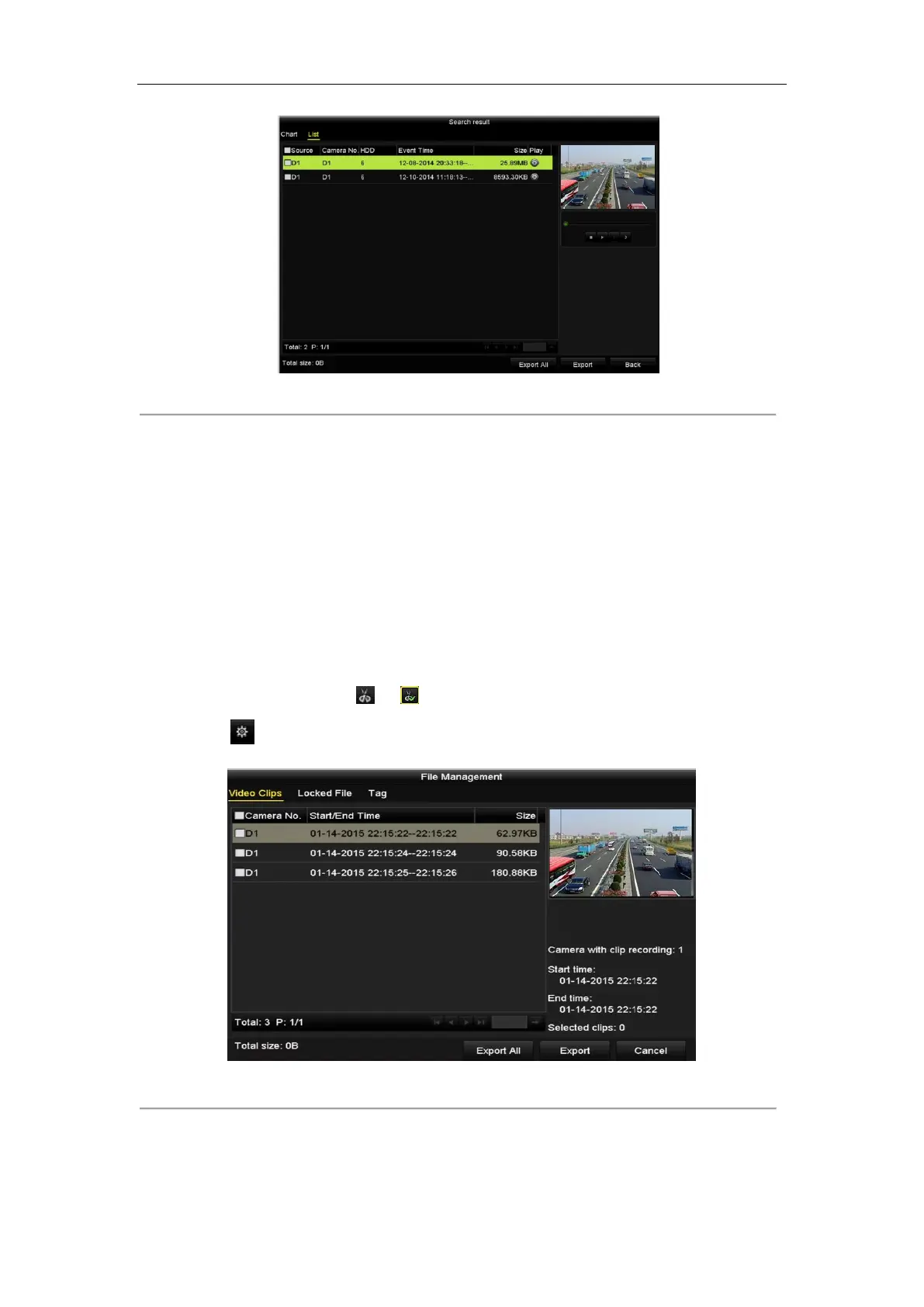

Figure 7. 10 Result of Event Search
6. Export the video files. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video Search for details.
7.1.4 Backing up Video Clips
Purpose:
You may also select video clips in playback mode to export directly during Playback, using USB devices (USB
flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
Steps:
1. Enter Playback interface.
Please refer to Chapter 6.1 Playing Back Record Files.
2. During playback, use buttons or in the playback toolbar to start or stop clipping record file(s).
3. Click the to enter the file management interface.
Figure 7. 11 Video Clips Export Interface
7. Export the video clips in playback. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video
Search for details.

Table of Contents

Other manuals for HIKVISION DS-7716NI-E4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7716NI-E4/16P and is the answer not in the manual?

HIKVISION DS-7716NI-E4/16P Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supportedH.264+
Audio RCA inputs1
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integratedNo
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Product colorBlack
Rack capacity1.5U
HDD capacity4 GB
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Total installed storage capacity16000 GB
AC input voltage100 - 240 V
Power consumption (typical)20 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
Weight4000 g
