Network Video Recorder User Manual
214

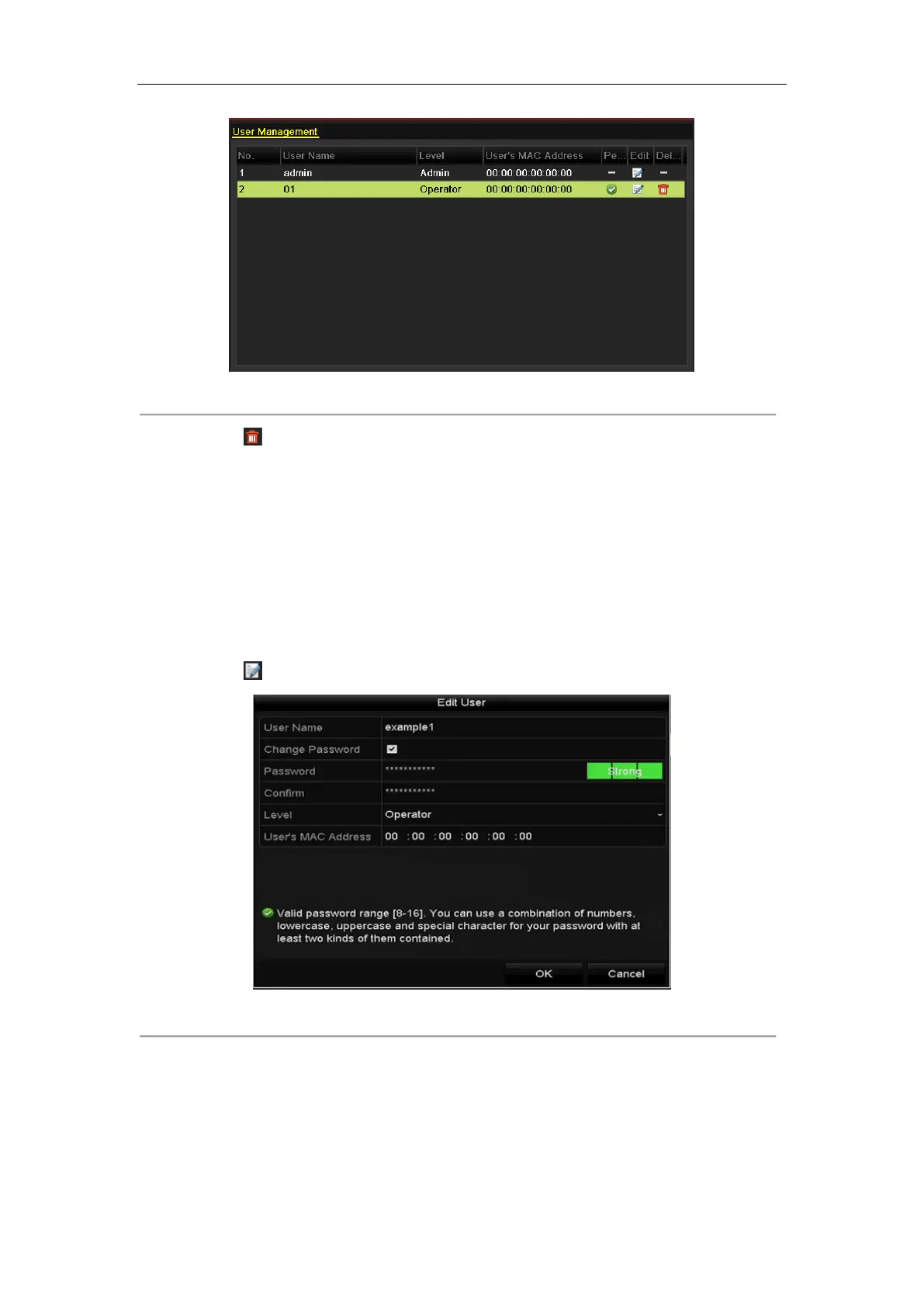

Figure 15. 10 User List
3. Click the icon to delete the selected user account.
15.5.3 Editing a User
For the added user accounts, you can edit the parameters.
Steps:
1. Enter the User Management interface.
Menu >Configuration>User
2. Select the user to be edited from the list, as shown in Figure 15. 10.
3. Click the icon to enter the Edit User interface, as shown in Figure 15.11.
Figure 15. 11 Edit User (Operator/Guest)

HIKVISION DS-7716NI-E4/16P Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
Audio RCA inputs	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integrated	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1.5U
HDD capacity	4 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	16000 GB
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
