5.5 Configuring VCA Event Recording
Purpose:
The event triggered recording can be configured through the menu. Then events include the motion detection,
alarm and VCA events (face detection/face capture, line crossing detection, intrusion detection, region entrance
detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking
detection, unattended baggage detection, object removal detection, audio loss exception detection, sudden change
of sound intensity detection, and defocus detection).
Steps:
1. Enter the VCA settings interface and select a camera for the VCA settings.
Menu > Camera > VCA

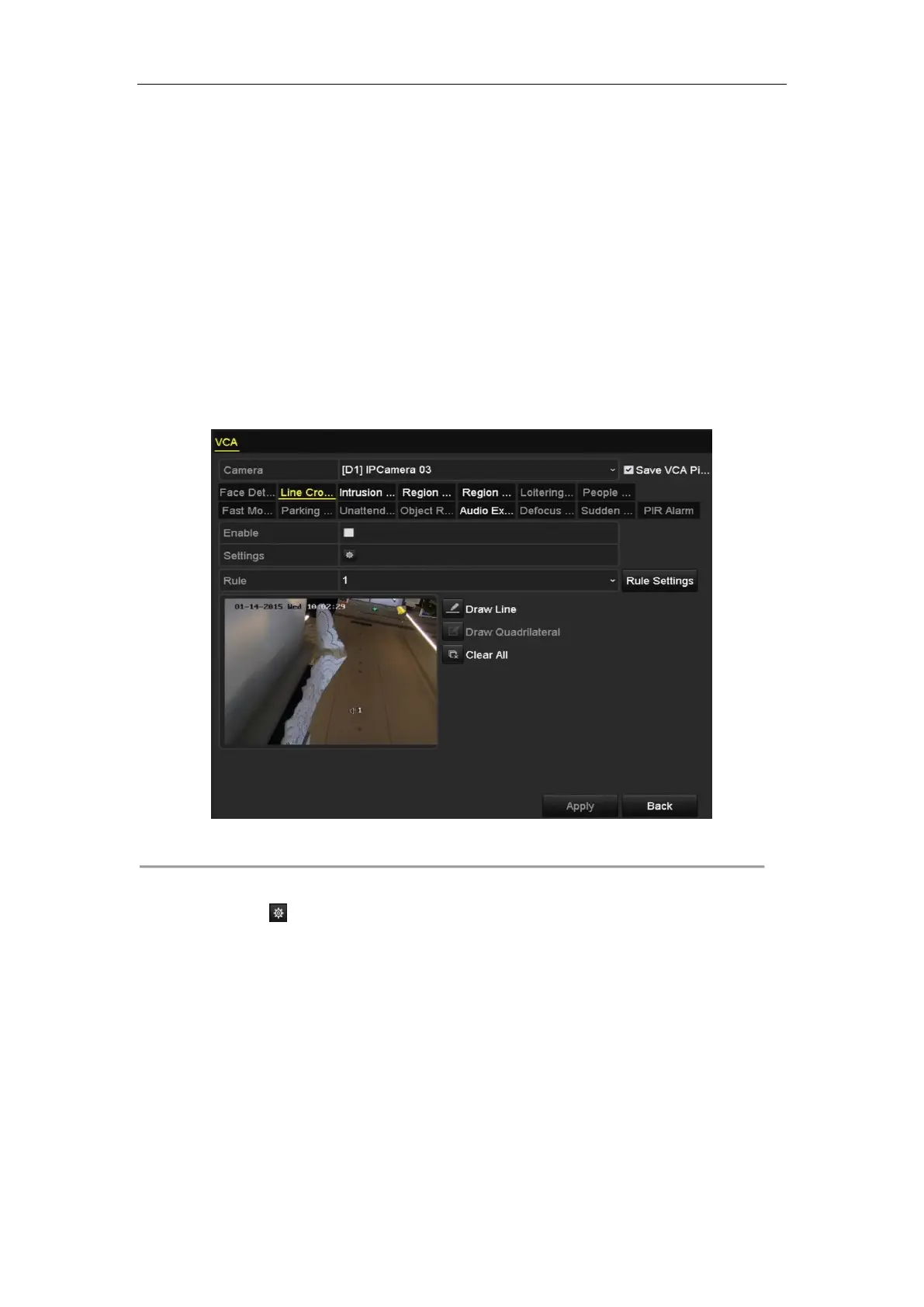

Figure 5. 17 VCA Settings
2. Configure the detection rules for VCA events. For details, see the step 2 in Chapter 9 VCA Alarm.
3. Click the icon to configure the alarm linkage actions for the VCA events.
Select Trigger Channel tab and select one or more channels which will start to record when VCA alarm is
triggered.
Click Apply to save the settings

HIKVISION DS-7716NI-E4/16P Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
Audio RCA inputs	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integrated	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1.5U
HDD capacity	4 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	16000 GB
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
