Network Video Recorder User Manual
48
Example: rtsp://192.168.1.55:554/ch1/main/av_stream.
 Protocol Name: Edit the name for the custom protocol.
 Enable Substream: If the network camera does not support sub-stream or the sub-stream is not needed
leave the checkbox empty.
 Type: The network camera adopting custom protocol must support getting stream through standard RTSP.
 Transfer Protocol: Select the transfer protocol for the custom protocol.
 Port: Set the port No. for the custom protocol.
 Path: Set the resource path for the custom protocol. E.g., ch1/main/av_stream.
The protocol type and the transfer protocols must be supported by the connected network camera.
After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to
Figure 2. 36.

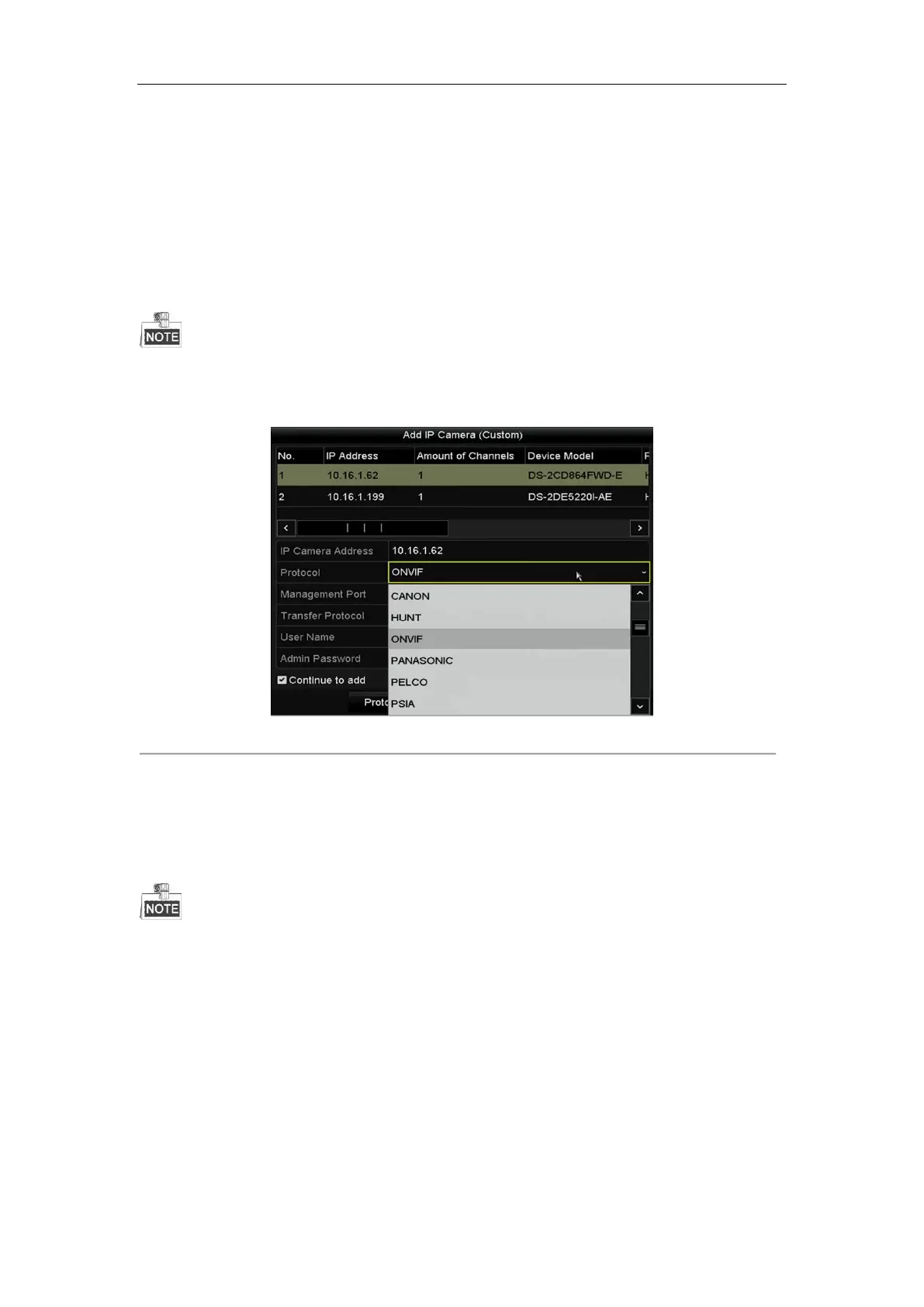

Figure 2. 36 Protocol Setting
3. Choose the protocols you just added to validate the connection of the network camera.
2.6.4 Editing IP Cameras Connected to the PoE Interfaces
This chapter is only applicable for the following models: DS-7604NI-E1/4P, DS-7600NI-E2/8P,
DS-7600NI-E2/16P, DS-7700NI-E4/8P, DS-7700NI-E4/16P series NVR.
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
Up to 4 network cameras can be connected to /4P models, 8 network cameras to /8P models, and 16 network
cameras to /16P models. If you disable the PoE interface, you can also connect to the online network cameras. And
the PoE interface supports the Plug-and-Play function.
To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Steps:
1. Enter the Camera Management interface.

HIKVISION DS-7716NI-E4/16P Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
Audio RCA inputs	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integrated	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1.5U
HDD capacity	4 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	16000 GB
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
