Network Video Recorder User Manual
125

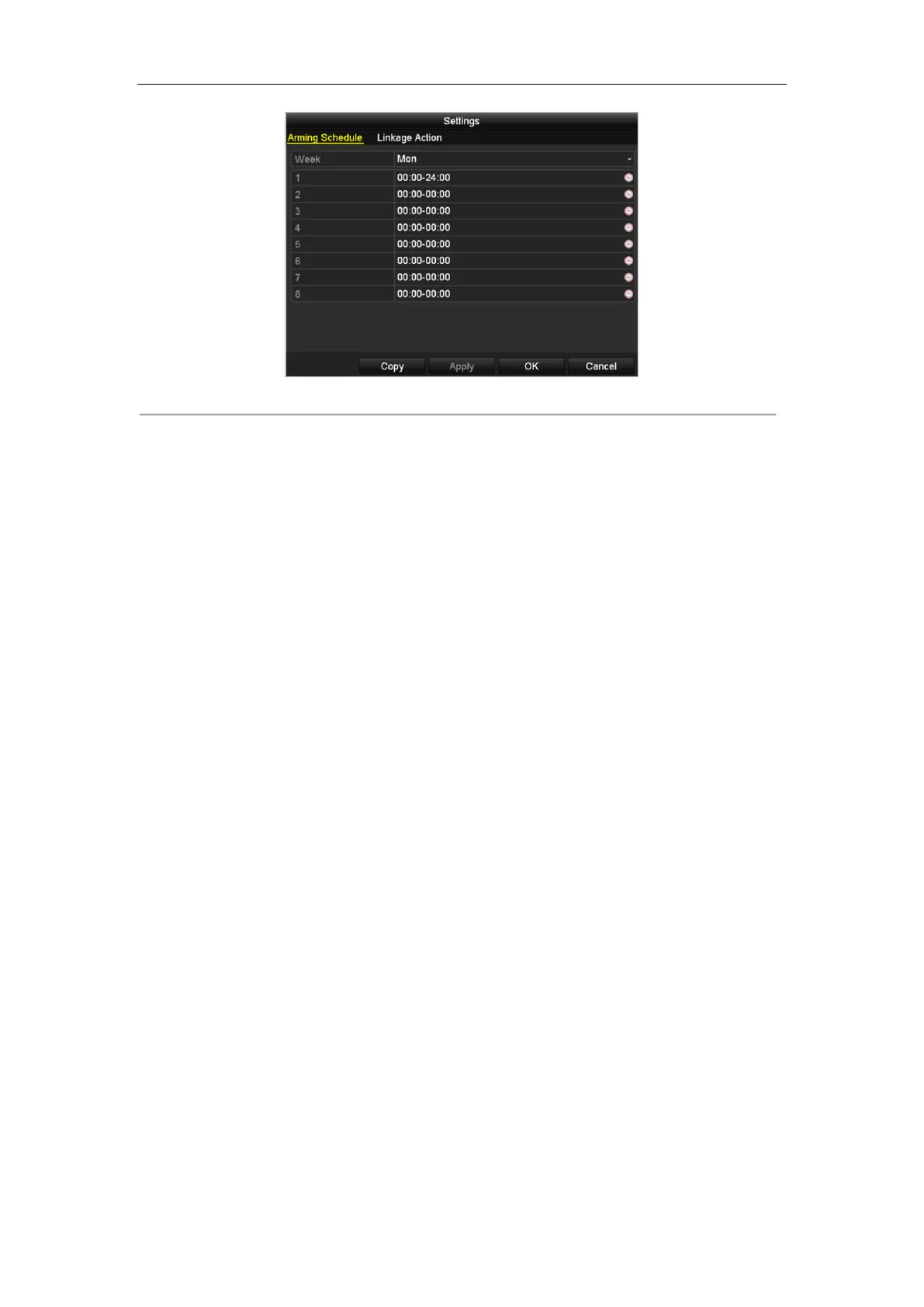

Figure 8. 12 Set Arming Schedule of Video Tampering
4. Select Linkage Action tab to set up alarm response actions of video tampering alarm (please refer to
Chapter 8.6 Setting Alarm Response Actions).
5. Click the OK button to complete the video tampering settings of the channel.

HIKVISION DS-7716NI-E4/16P Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
Audio RCA inputs	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integrated	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1.5U
HDD capacity	4 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	16000 GB
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
