Network Video Recorder User Manual
130
9.2 Vehicle Detection
Purpose:
Vehicle Detection is available for the road traffic monitoring. In Vehicle Detection, the passed
vehicle can be detected and the picture of its license plate can be captured. You can send alarm
signal to notify the surveillance center and upload the captured picture to FTP server.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
Step 3 You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 4 Select the VCA detection type to Vehicle Detection.
Step 5 Check the Enable checkbox to enable this function.

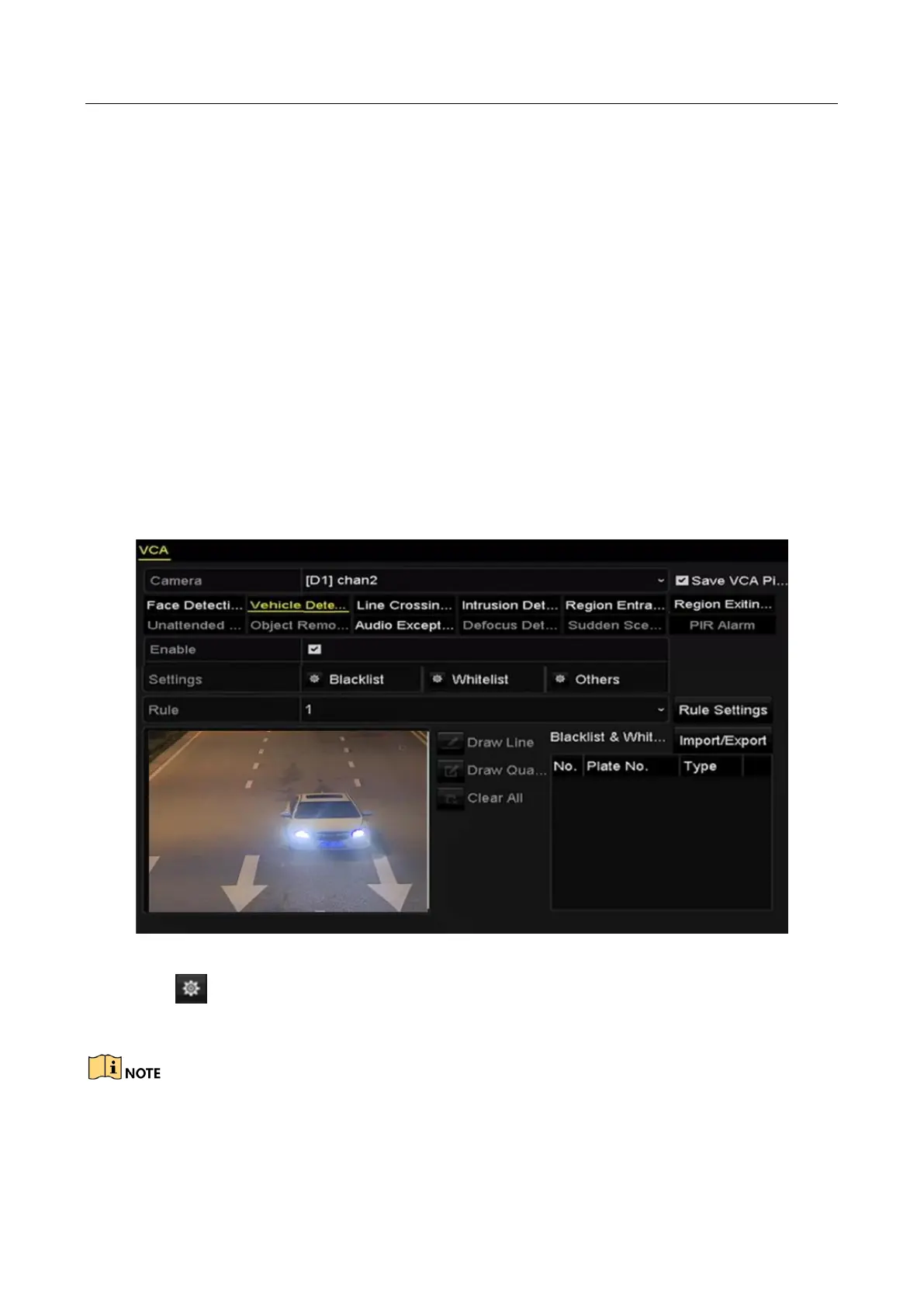

Figure 9-3 Set Vehicle Detection
Step 6 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Up to 2, 048 backlists or whitelists are supported for import and export.
