HIKVISION DS-7804N-K1/W User Manual

Network Video Recorder User Manual
147

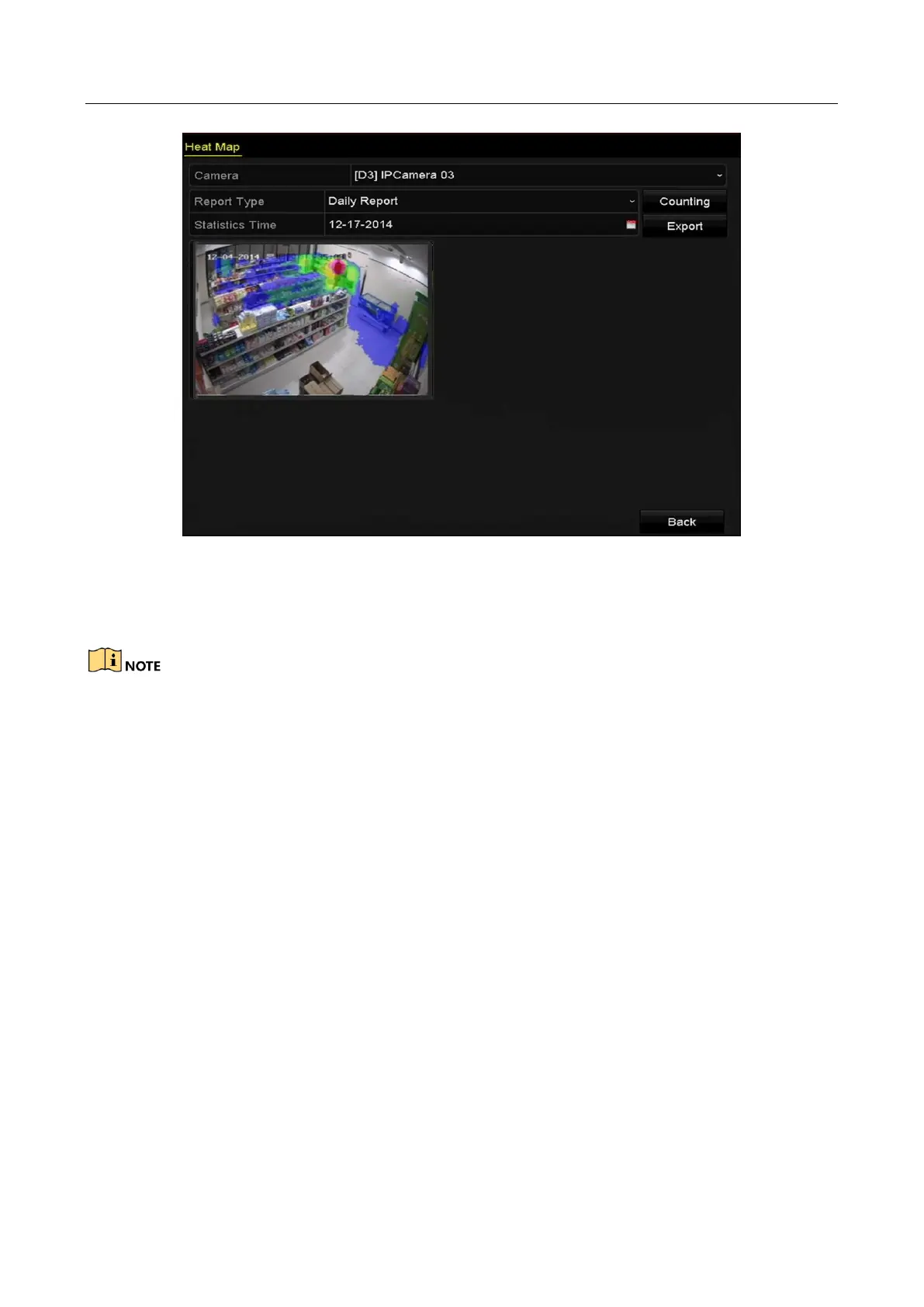

Figure 10-8 Heat Map Interface
Step 5 Click the Counting button to export the report data and start heat map statistics, and the
results are displayed in graphics marked in different colors.
As shown in the figure above, red color block (255, 0, 0) indicates the most welcome area, and blue
color block (0, 0, 255) indicates the less-popular area.
Step 6 You can click the Export button to export the statistics report in excel format.
