7. Fill and level up the gap between the frame and wall with concrete. Remove the
locating plates after the concrete is dry.
8. Thread the module-connecting line across the thread hole of the frame.
Pass the main unit connecting lines across the thread hole to the upper grid.

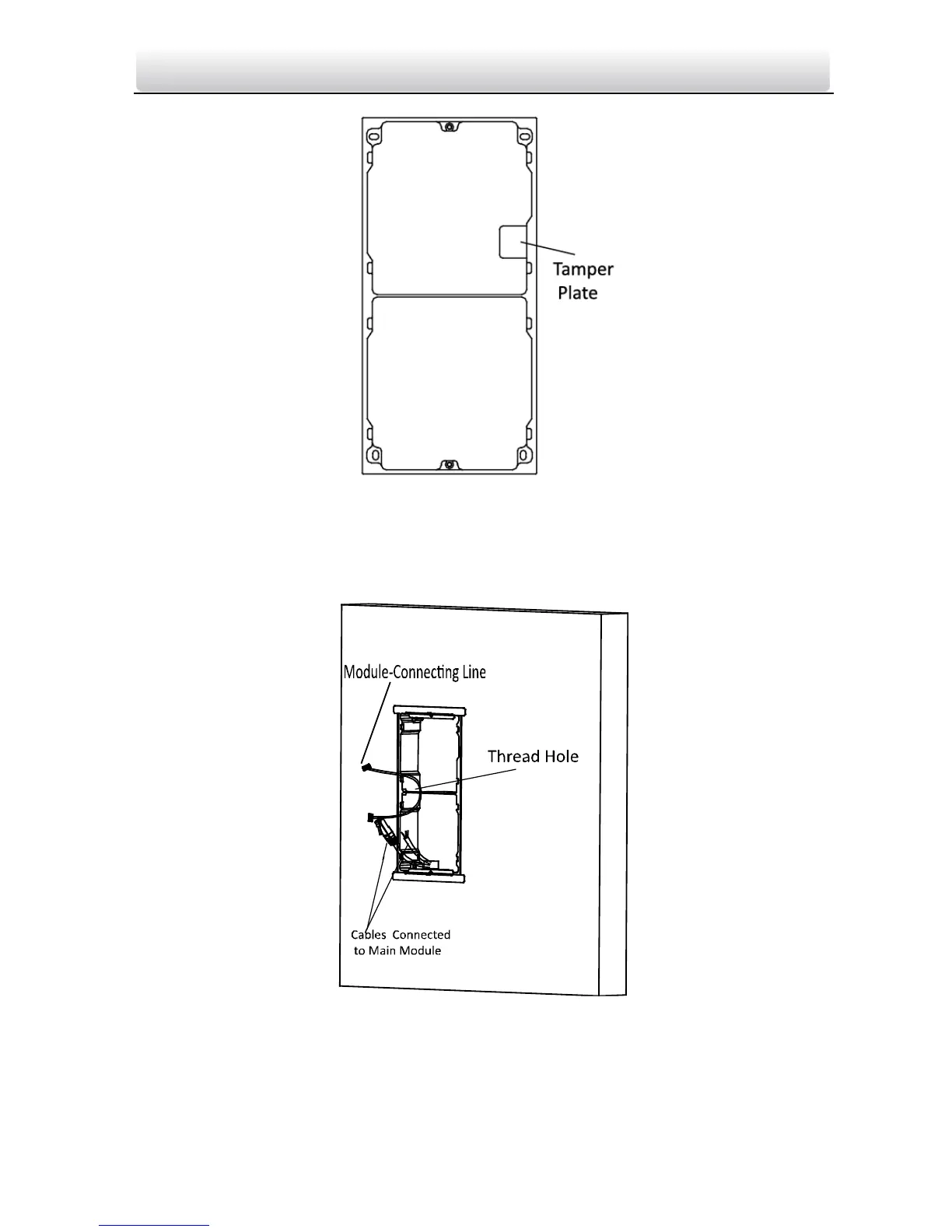

Figure 4-22 Placement of Lines
9. Connect the cables and module-connecting line to the corresponding interfaces of the
main unit, then place the main unit into the upper grid.
Connect the other end of the module-connecting line to the input interface of the
sub module.
