Chapter 1 Introduction
Purpose:
Adopting embedded Linux operating system, Hikvision DS-MP3516-RS series dedicated rail NVR (Network Video
Recorder) provides powerful monitoring functionalities, including audio and video decoding, 3G & Wi-Fi wireless
network transmission, satellite positioning service, secure data storage, and hard drive vibration damping. It can
cooperate with other devices to build a comprehensive surveillance system.
Thanks to the features of high stability, easy-to-carry and low power consumption, the DS-MP3516-RS series rail
NVR is widely applied to the surveillance projects of rail transportations.
1.1 Interfaces

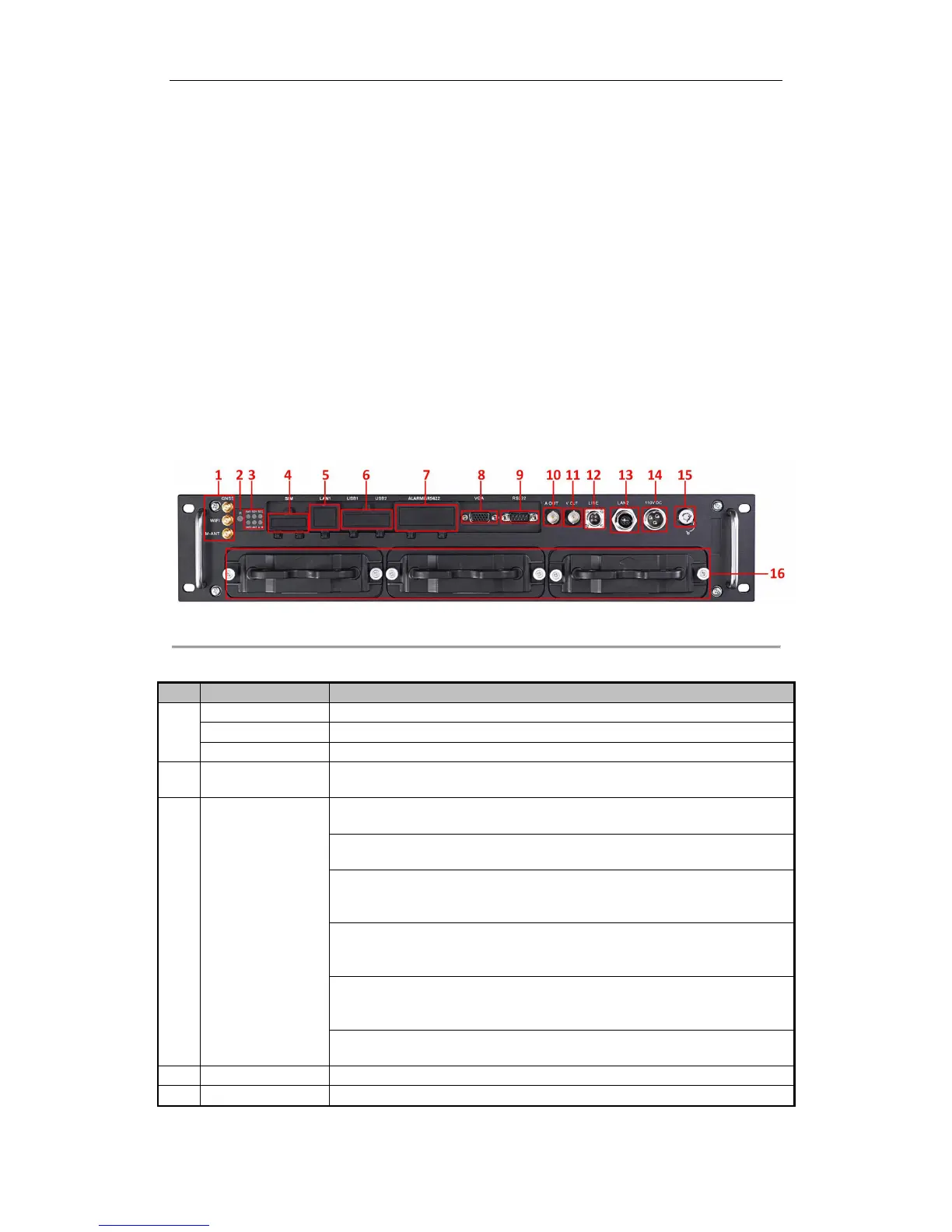

Figure 1. 1 Panel View
Table 1. 1 Interface’s Description
No.
Name
Description
1
GNSS
GNSS antenna interface
WIFI
Wi-Fi antenna interface. (only supported by the “/GW” devices)
M-ANT
3G antenna interface
2
IR
IR: IR receiver
Receive IR signal from remote control.
3
Indicators
PWR: Power indicator
Turns green after device starts up; Turns red when device stands by.
RDY: Ready indicator
Turns green when the device starts up
REC: Record indicator
Turns green when recording; The light is out when all recording processes are
abnormal.
GNSS: GNSS indicator
No light when GNSS module is abnormal; Turns green when the GNSS module
works normally; Blinks in green after the positioning successful.
ANT: 3G indicator
Turns green when 3G module works normally; Blinks slowly in 3G registration;
Blinks frequently after successful 3G registration.
ALM: Alarm indicator
Turns red when alarm occurs.
4
SIM
SIM card slot.
5
LAN1
RJ45 network interface for debugging.
