Rail Network Video Recorder User Manual
14

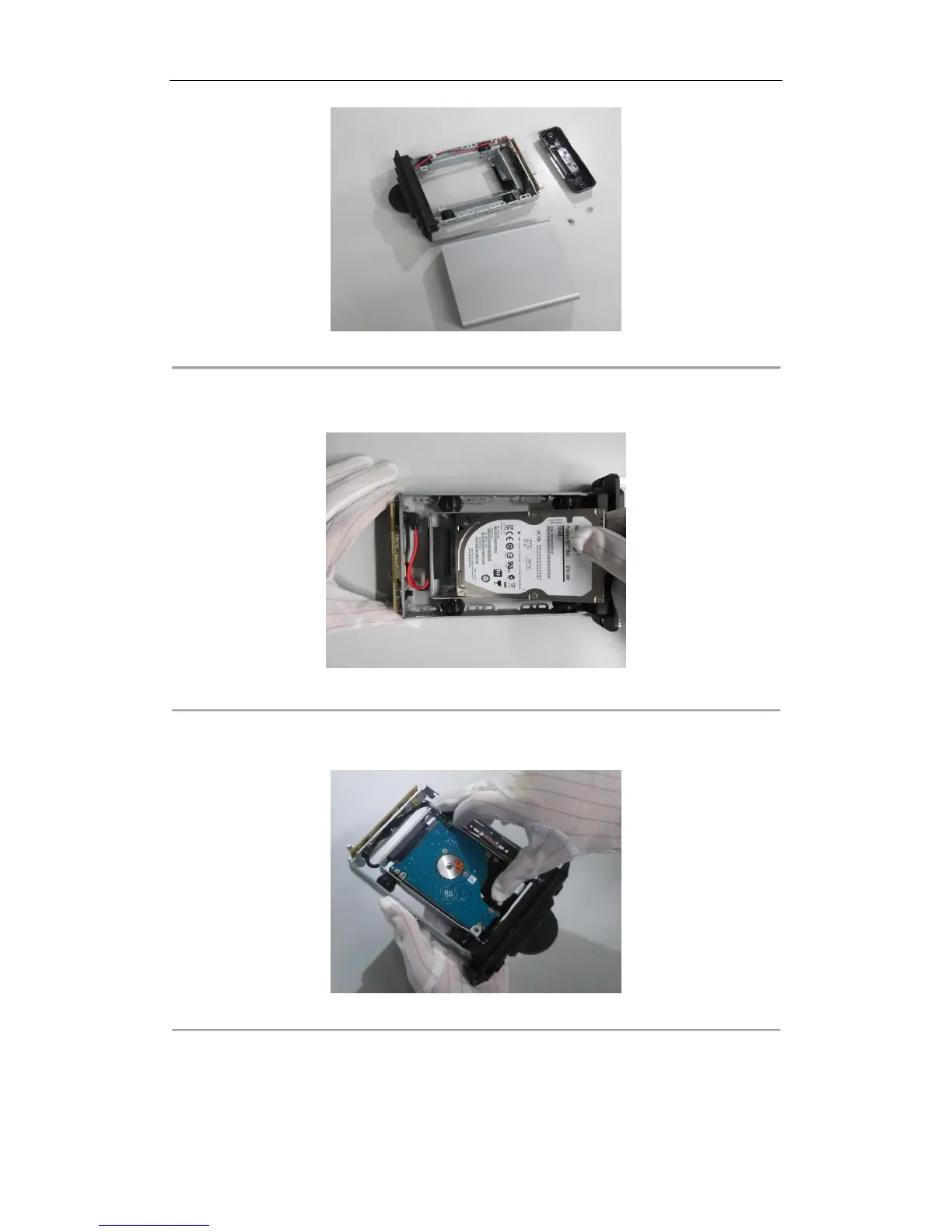

Figure 1. 10 HDD Box Parts
6. Place the first HDD into the HDD box and tightly insert the first HDD into the bottom, with the PCB facing
downward.
Figure 1. 11 Install the First HDD
7. Place the second HDD into the HDD box, with the PCB facing upward. After the HDD is totally placed into
the bracket, tightly insert the second HDD into the socket.
Figure 1. 12 Install the Second HDD
8. Tighten the two screws marked in the figure to fix the HDD. Do the same things to fix the other HDD at the
back side.
To Next Page
