HIKVISION DS-TCG227-A Series User Manual

User Manual of DS-TCG227-A Series Entrance/Exit Capture Unit
45

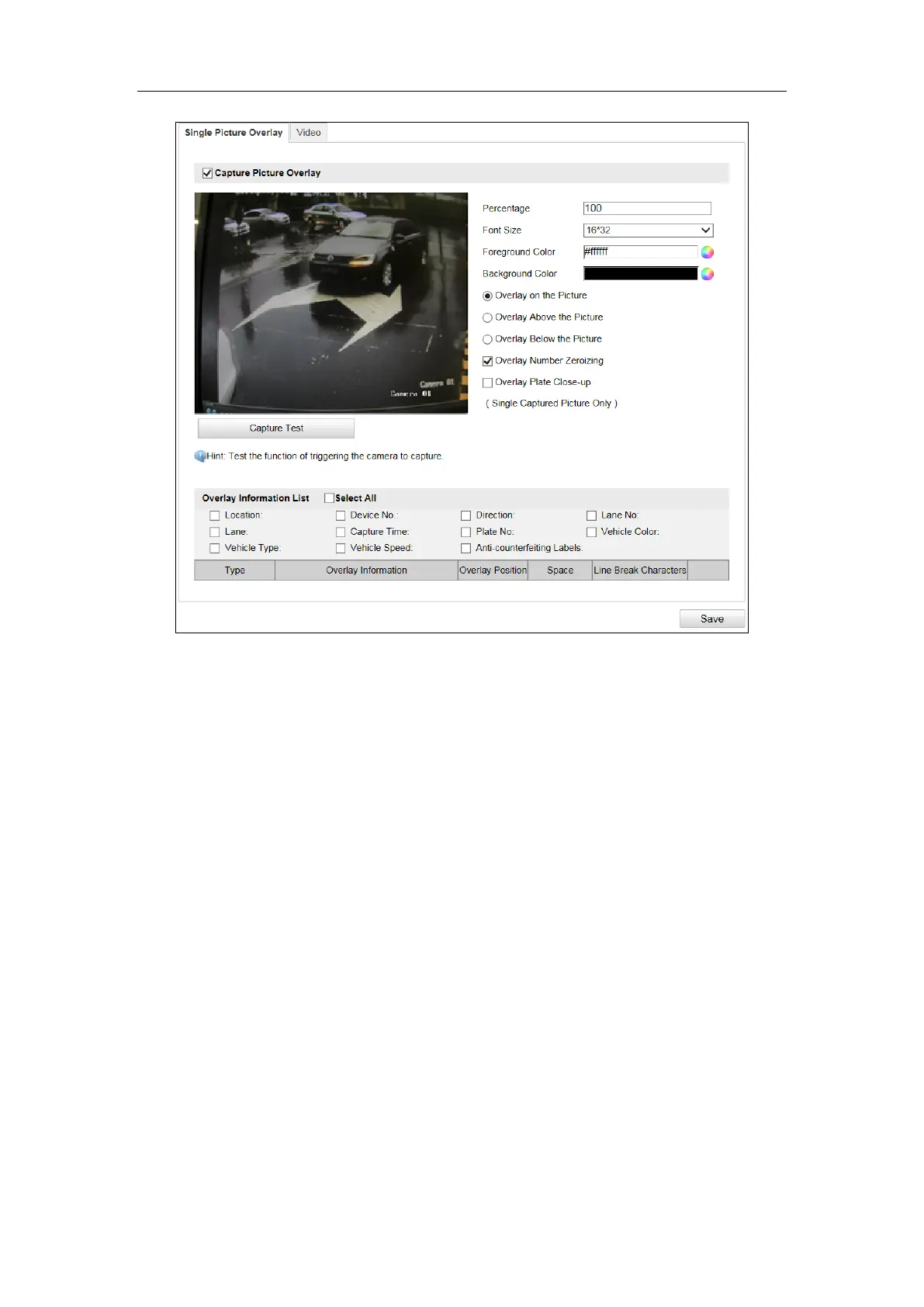

Figure 6-32 Single Picture Overlay
2. Check Capture Picture Overlay.
3. Configure the parameters below.
 Percentage: the percentage of the information overlaid on the picture.
 Font Size: the font size of the overlay information.
 Foreground Color: the foreground color of the overlay information.
 Background Color: the background color of the overlay information.
4. Configure the overlay position.
Overlay on the Picture, Overlay Above the Picture, and Overlay Below the
Picture are selectable.
5. (Optional) Check Overlay Number Zeroing.
6. (Optional) Check Overlay Plate Close-up to overlay the plate close-up on the
upper left corner of the captured picture.
7. Configure the overlay information.
