User Manual of DS-TCG227-A Series Entrance/Exit Capture Unit
53
 Saturation: It describes the colorfulness of the image color, which ranges
from 1 to 100, and the default value is 50.
 Sharpness: It describes the edge contrast of the image, which ranges from 1
to 100, and the default value is 50.
 White Balance: It is the white rendition function of the camera used to
adjust the color temperature according to the environment.

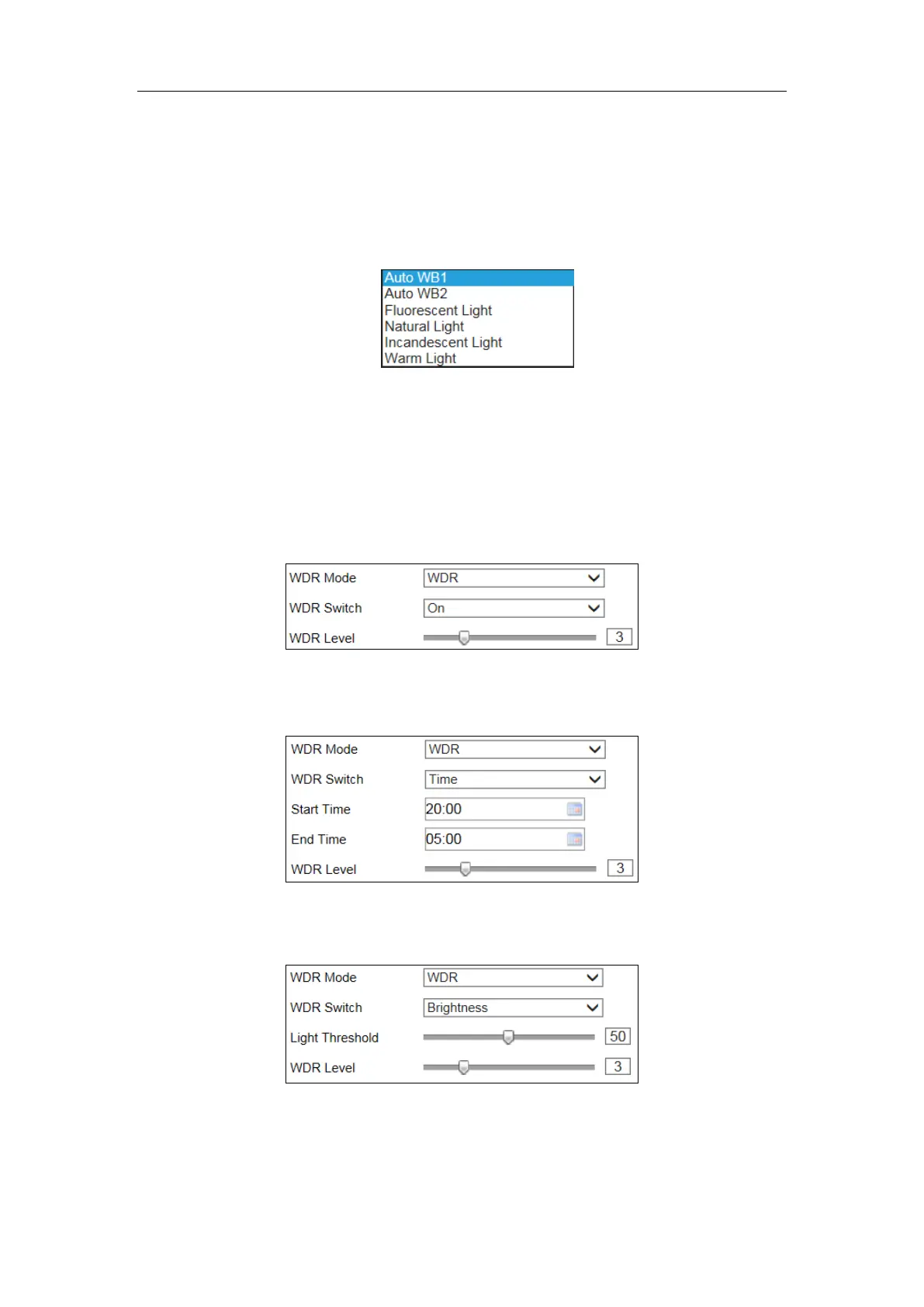

Figure 6-41 White Balance
 WDR Mode: Wide Dynamic Range can be used when there is a high
contrast of the bright area and the dark area of the scene. You can select
WDR, D-WDR, or Off.
If you select WDR or D-WDR, you should configure the WDR Switch.
On: Configure the WDR Level. The higher the level is, the higher the WDR
strength is.
Figure 6-42 WDR Configuration (1)
Time: Enable WDR according to the time. Configure the Start Time, End
Time, and WDR Level.
Figure 6-43 WDR Configuration (2)
Brightness: Configure the Light Threshold and WDR Level. When the
brightness reaches the threshold, WDR will be enabled.
Figure 6-44 WDR Configuration (3)
 Lens Type: Select Auto for the auto iris lens. Select Manual for the manual
iris lens.
 Light Compensation on License Plate: Check the function and adjust the
