Network Video Recorder User Manual
37
Step 7 Click Next button after you configured the network parameters, which takes you to the HDD
Management window, shown in Figure 2-22.

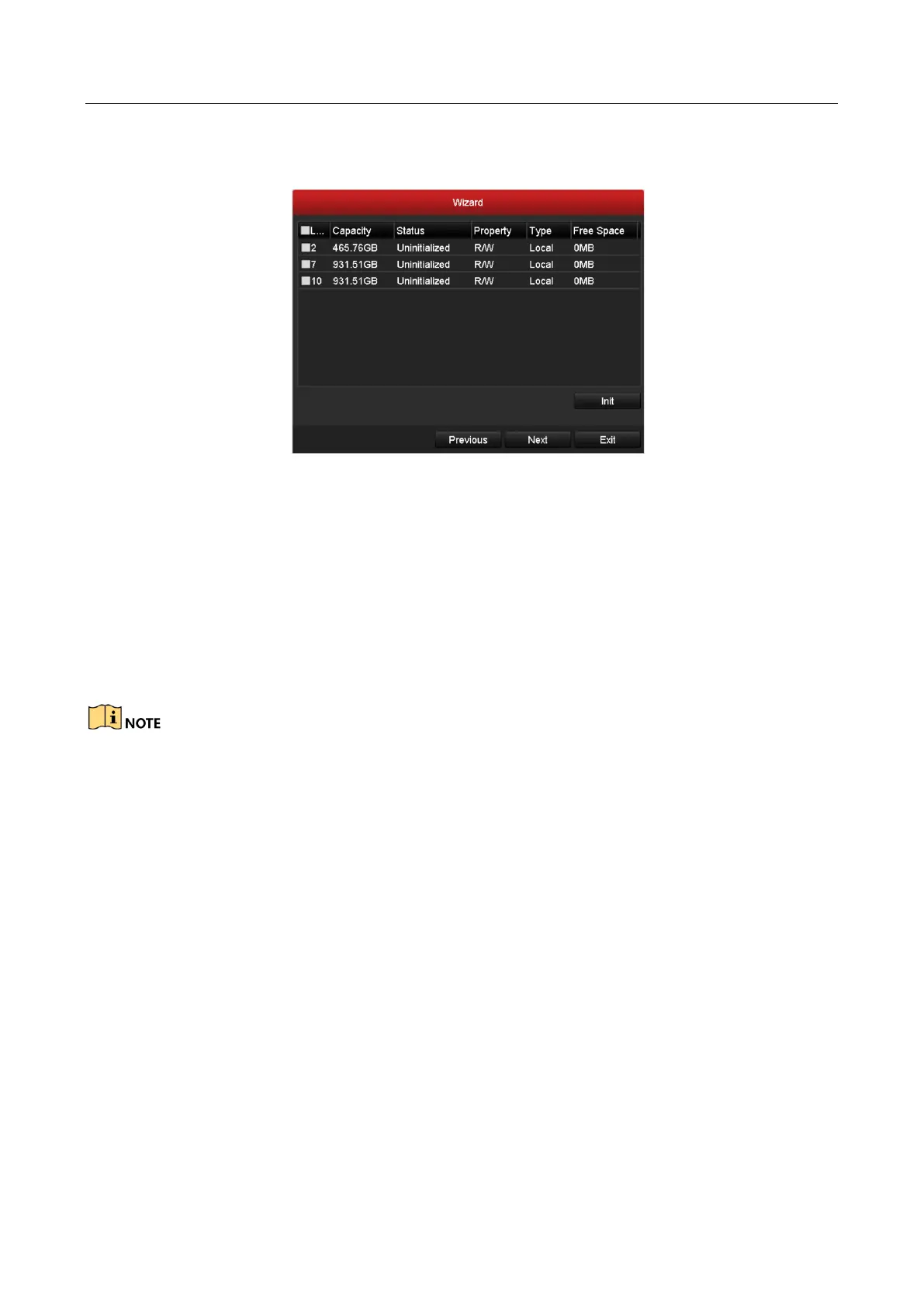

Figure 2-22 HDD Management
Step 8 To initialize the HDD, click the Init button. Initialization removes all the data saved in the
HDD.
Step 9 Click Next button. You enter the Adding IP Camera interface.
Step 10 Click Search to search the online IP Camera and the Security status shows whether it is
active or inactive.
Step 11 Click the Add to add the camera.
Before adding the camera, make sure the IP camera to be added is in active status.
If the camera is in inactive status, you can click the inactive icon of the camera to set the password
to activate it. You can also select multiple cameras from the list and click the One-touch Activate to
activate the cameras in batch.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-9632NXI-I8/16S and is the answer not in the manual?

HIKVISION iDS-9632NXI-I8/16S Specifications

General IconGeneral
Input bandwidth256 Mbit/s
Output bandwidth200 Mbit/s
Maximum frame rate30 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Wi-FiNo
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
RAID supportYes
HDD interfaceSerial ATA
Maximum storage capacity80 TB
Number of HDDs installed0
Number of HDDs supported8
RS-485 ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Product colorBlack
Rack capacity2U
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Power consumption (typical)70 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
Weight10000 g
