User Manual of Network Video Recorder
42

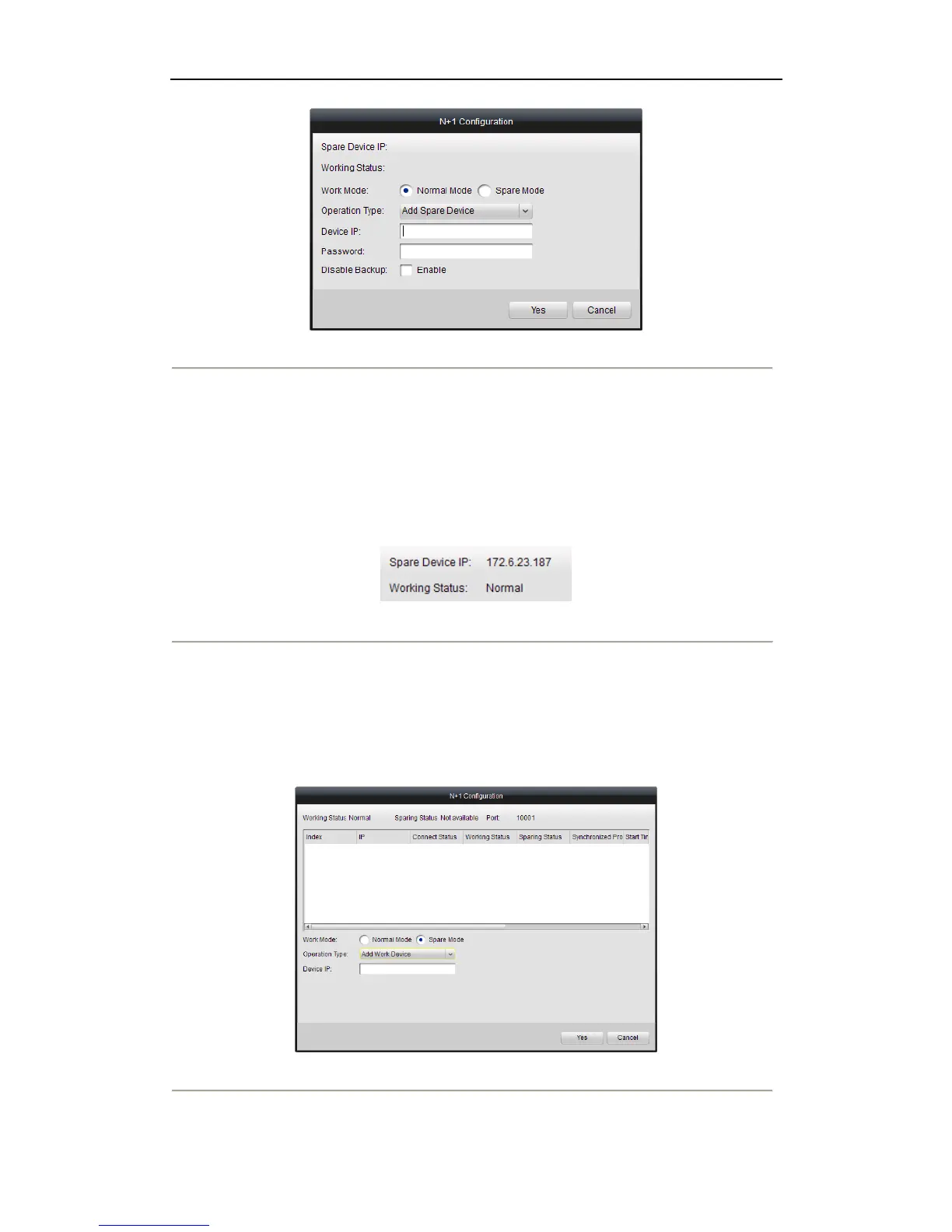

Figure 7. 13 N+1 Configuration Interface
3. Set the Work Mode as Normal Mode (default).
4. Select the Operation type as Add Spare Device in the drop-down list and enter the IP address and password
of hot spare device.
5. Check the checkbox of Enable to enable the hot spare function.
6. Click the Yes button to save the settings.
If the working device connects to the hot spare device successfully, you can see the working status in the
N+1 configuration interface.
Figure 7. 14 Hot Spare Information
7.5.3 Managing Hot Spare System
Steps:
1. Enter the Hot Spare Settings interface of the hot spare device.
Figure 7. 15 Add Working Device
2. Select the Operation Type as Add Work Device, input the IP address in the text filed and click the Yes button
