User Manual of Network Video Recorder
72
10.1 Channel Display Settings
Note: This function is only supported by IP cameras from certain manufacturers.
Steps:
1. Enter OSD settings interface:
Configuration> Remote Configuration> Camera Settings> Display Settings

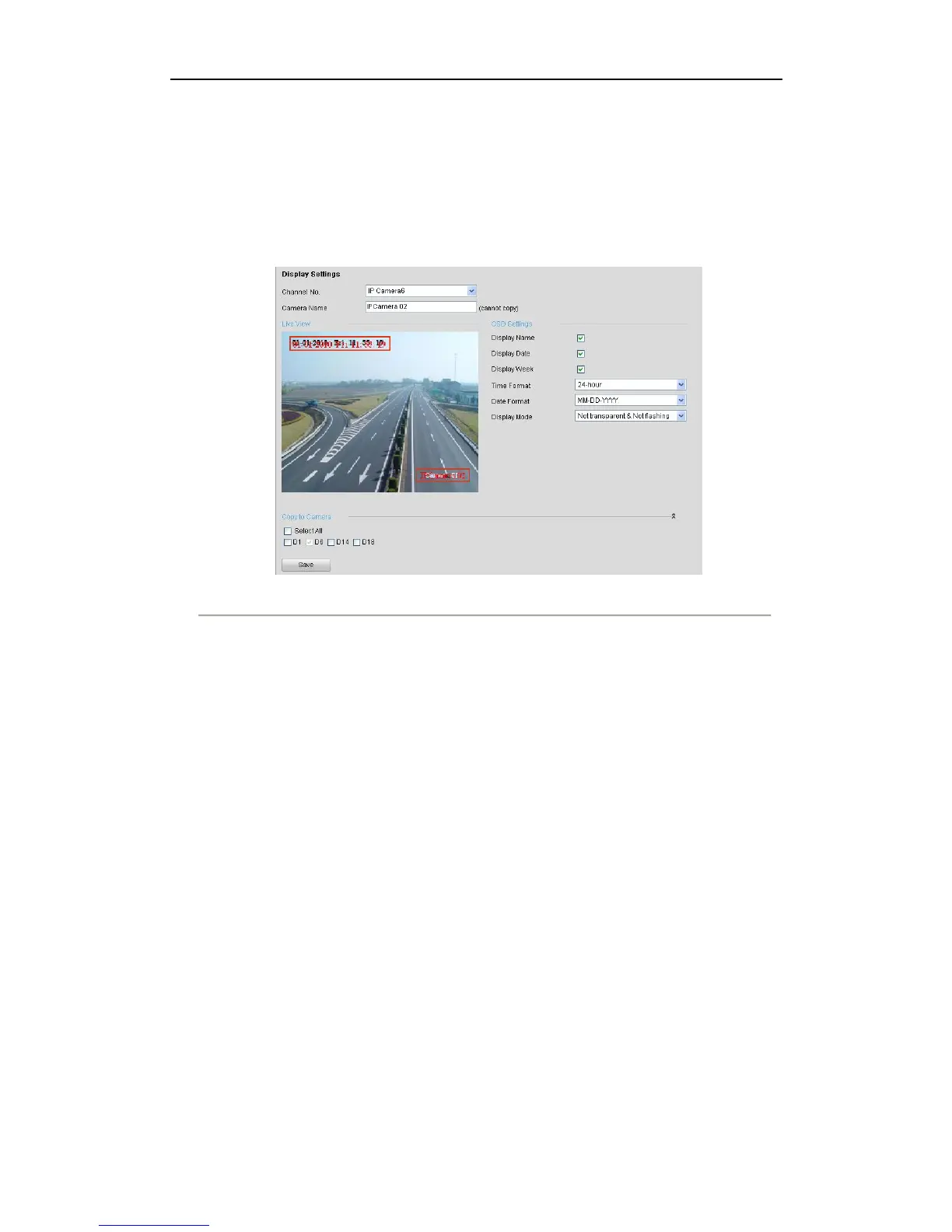

Figure 10. 1 Display Settings Interface
2. Select the channel No. for Display Settings, and you can configure the Camera Name.
3. Check the corresponding checkbox to enable the function.
4. Select the Date Format, Time Format and Display Mode.
You can use the mouse to click and drag the text frame on the live view window to adjust the OSD position
5. You can check the corresponding checkbox to copy the settings to other camera(s).
6. Click Save button to save the settings.
