4.25 Central Brake and Steer—Caster Assemblies
Chapter 4: Removal, Replacement, and Adjustment Procedures
4
Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed, Page 4 - 55
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)

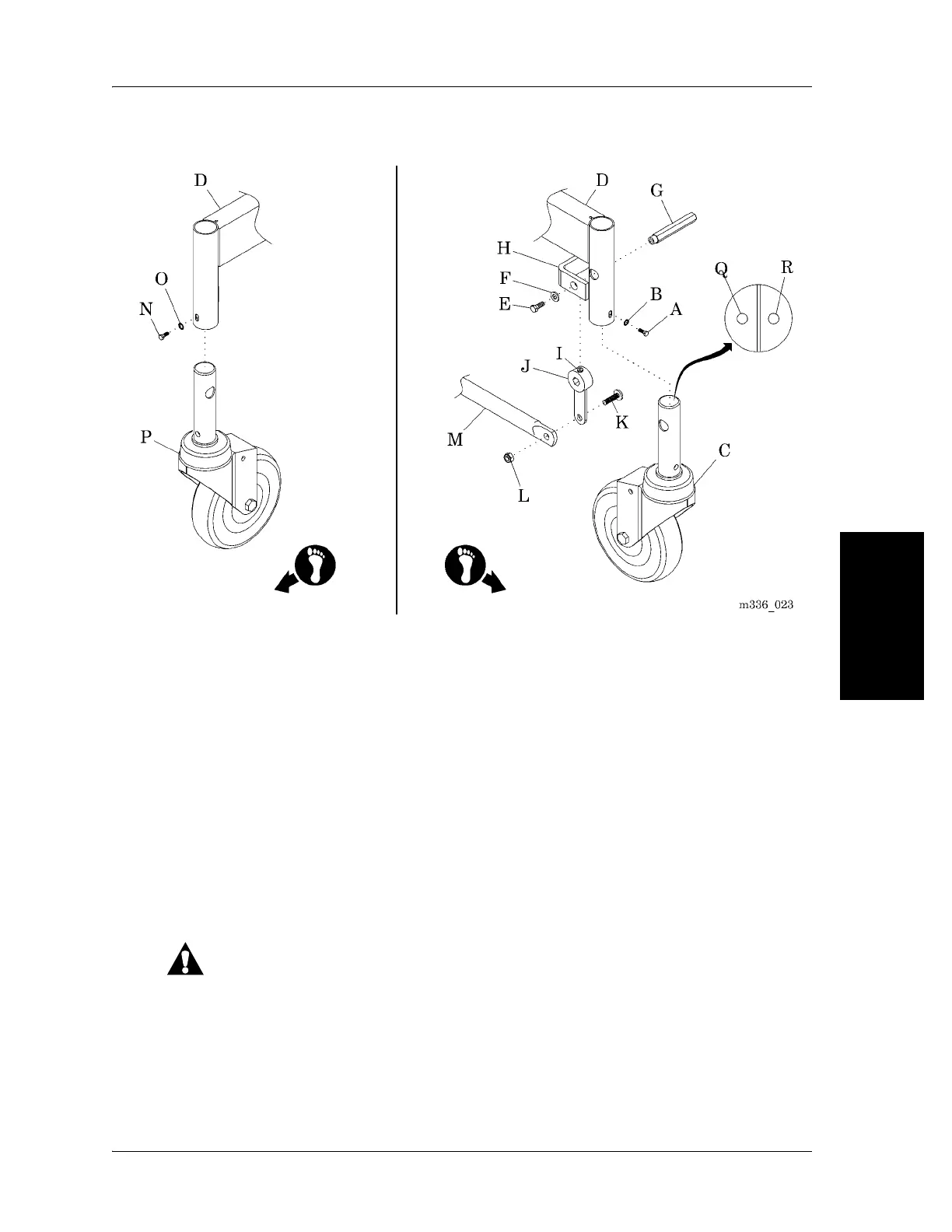

Figure 4-25. Central Brake and Steer—Brake and Steer and Swivel Caster Assemblies
NOTE:
As the hex rod is pushed through the caster, the caster will fall off the bed
frame.
8. If necessary, remove the bolt (K) and nut (L) that attach the linkage (M) to
the rocker arm (J).
9. Remove the bolt (N) and washer (O) that attach the swivel caster (P) to the
bed frame (D).
10. Go to “Replace the Foot End” on page 4-57.
Remove the Head End
WARNING:
Put caster blocks behind the casters at the opposite end of the bed.
Failure to do so could cause injury.
1. Put caster blocks behind the casters at the foot end of the bed.
