4.20 Siderail Guard Assembly (Head End)
Chapter 4: Removal, Replacement, and Adjustment Procedures
4
Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed, Page 4 - 45
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
4.20 Siderail Guard Assembly (Head End)
Tools required: 13mm hex wrench
Removal
1. Raise the bed to the highest position.
2. Remove the two screws (A) that attach the siderail guard (B) to the siderail
(C).
3. Remove the siderail guard (B) from the siderail (C).

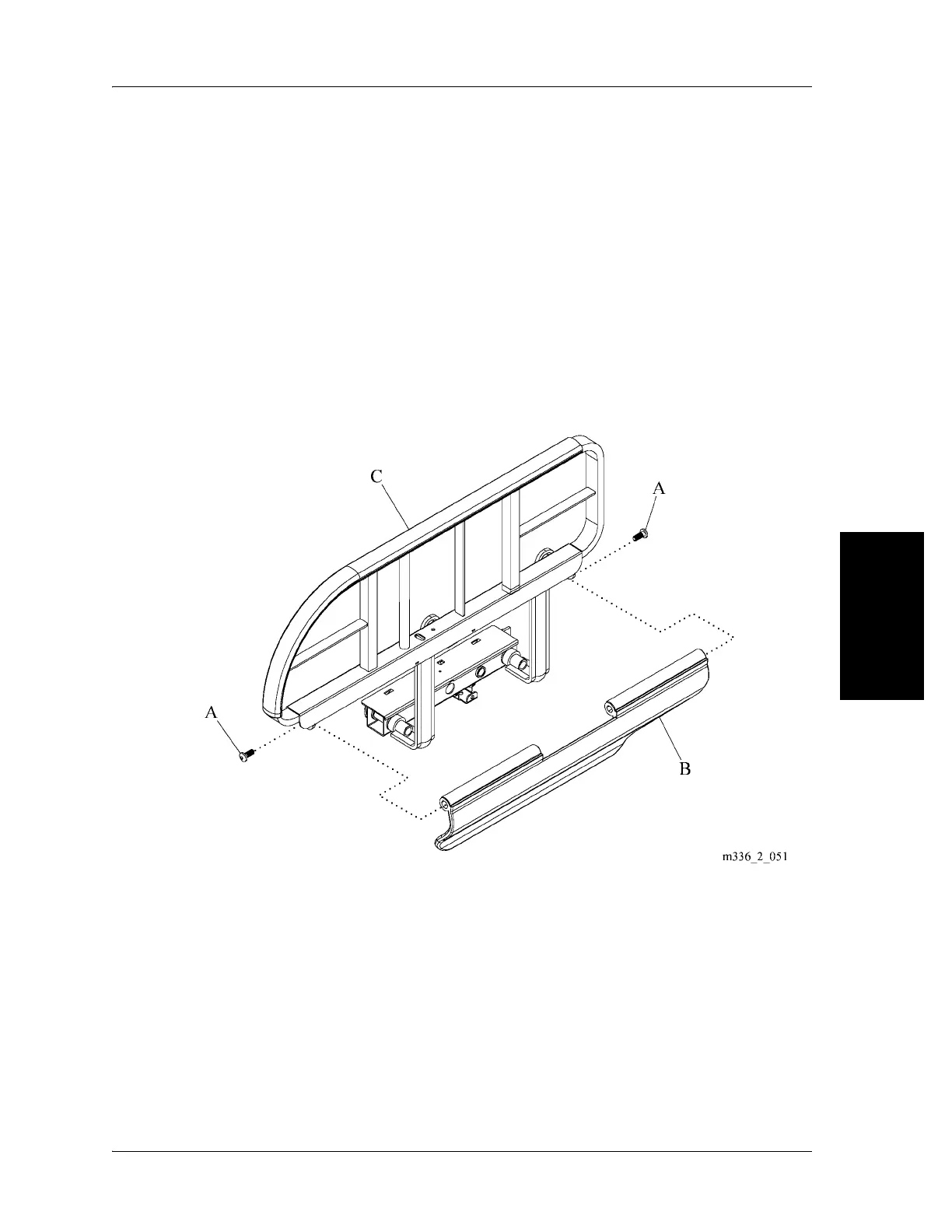

Figure 4-20. Siderail Guard Assembly (Head End)
Replacement
1. Raise the bed to the highest position.
2. Put the siderail cover (B) on the siderail (C).
3. Install the siderail cover (B) with the two screws (A).
