Base Frame—Model B
Chapter 5:
Parts List
Page 5 - 26
Hill-Rom® Basic Care™
Bed, H
ill-Rom®
305 Manual Bed,
Hill-Rom® 405 Electric Bed Se
rvice Manual (MAN336 REV 2)
Base Frame—Model B

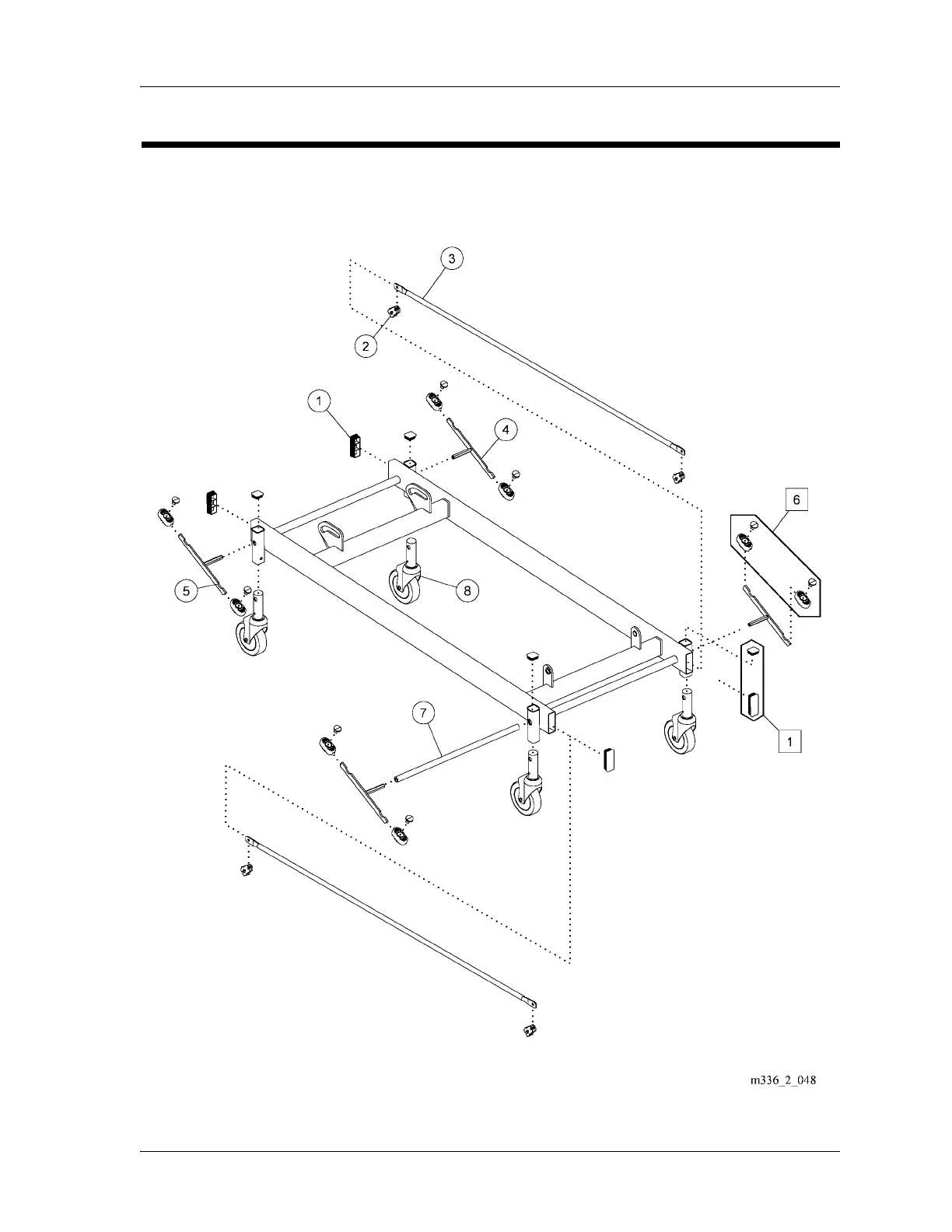

Figure 5-8. Base Frame—Model B
145
147
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1: Introduction
9
Purpose
9
Audience
9
Reference Documents
9
Document Symbols
10
Specifications
11
Physical Description
11
Electrical Description
13
Regulations, Standards, and Codes
14
Model Identification
15
Safety Tips
16
Warning and Caution Labels
21
Chapter 2: Troubleshooting Procedures
23
Getting Started
23
Initial Actions
24
Function Checks
24
Final Actions
26
None of the Bed Functions Operate
27
The Head up Function Does Not Operate
28
The Head down Function Does Not Operate
30
The Head Function Does Not Operate
32
The Knee up Function Does Not Operate
33
The Knee down Function Does Not Operate
35
The Knee Function Does Not Operate
37
The Hilow up Function Does Not Operate
38
The Hilow down Function Does Not Operate
40
The Hilow Function Does Not Operate
42
The Automatic Contour up Function Does Not Operate
43
The Automatic Contour down Function Does Not Operate
44
The Trendelenburg or Reverse Trendelenburg Function Does Not Operate
45
The CPR Function Does Not Operate
47
Chapter 3: Theory of Operation
49
Introduction
49
Base
49
Intermediate Frame
49
Articulating Sleep Deck
49
Siderails
49
Motion Control
49
Transformer Configurations
50
Motor Assemblies
51
Battery Backup
51
Controls
51
Chapter 4: Removal, Replacement, and Adjustment Procedures
53
Tool and Supply Requirements
53
Control Box Assembly
55
Control Panel, Foot End
57
Trendelenburg Control Box
59
Trendelenburg or Reverse Trendelenburg Assembly
61
Trendelenburg and Reverse Trendelenburg Indicators
64
Fuses
66
Battery Backup
68
Head Motor
70
CPR Cable
72
Knee Motor
75
Hilow Motor
77
Manual Crank Handle Assembly
79
Head or Knee Crank Rod and Drive Screw Assembly (Manual Model Only)
81
Hilow Crank Rod and Drive Screw Assembly Including Gas Springs
84
(Manual Model Only)
84
CPR Handle Assembly
87
Siderails
89
Siderail Slide Bracket
92
Siderail Retraction Assembly
94
Siderail Guard Assembly (Foot End)
96
Siderail Guard Assembly (Head End)
97
Siderail Control Assembly
98
Siderail Control Cable
101
Siderail Top Cane
104
Siderail Wire Cover
105
Central Brake and Steer-Caster Assemblies
106
Central Brake and Steer-Pedal Assemblies
111
Casters for Individual Brake and Steer
113
4-Corner Brake and Steer-Caster Assembly
115
Bumper
117
Sleep Surface Panels
118
Chapter 5: Parts List
121
Service Parts Ordering
121
Exchange Policy
123
In-Warranty Exchanges
123
Out-Of-Warranty Exchanges
123
Warranty
125
Recommended Spare Parts
127
Base Frame-Model a
132
Upper Frame-P1440-Model a
134
Upper Frame-P1441-Model a
138
Siderails-Model a
140
Power Cord
142
Sleep Surface
144
Base Frame-Model B
146
Upper Frame-P1440-Model B
148
Siderails-Model B
152
Chapter 6: General Procedures
155
Cleaning and Care
155
General Cleaning
155
Steam Cleaning
156
Hard to Clean Spots
156
Disinfecting
156
Component Handling
156
PC Board
156
Lubrication Requirements
157
Preventive Maintenance
159
Preventive Maintenance Schedule
160
Preventive Maintenance Checklist
162
Sleep Mode
163
CPR Cable Adjustment
165
Chapter 7: Accessories
167
Accessories
167
Pole-P1445
168
Installation
168
Removal
169
Adjustment
169
Trapeze Support-P846F
170
Installation
170
Removal
171
Fracture Frame Adapter-P847B and P847C
172
Installation
172
Removal
172
