4.29 Bumper
Tools required: 5 mm hex wrench
Removal
1. Raise the bed to its highest position.
2. Remove the screw (A) and bushing (B) that attach the bumper (C) to the
bed frame (D) (see figure 4-30 on page 4-65).

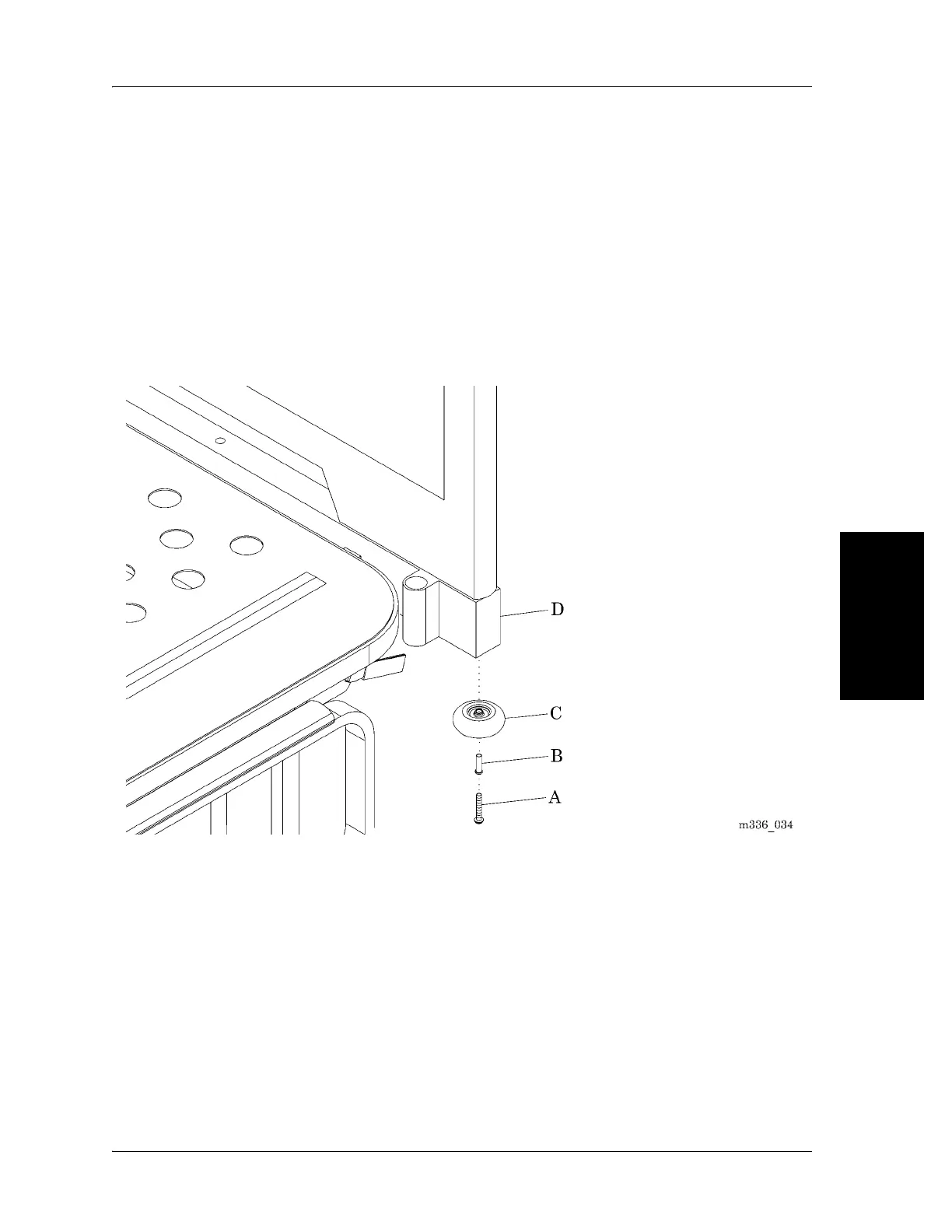

Figure 4-30. Bumper
3. Remove the bumper (C) from the bed frame (D).
Replacement
1. Do the removal procedure in the reverse order.
2. Do the “Function Checks” on page 2-2.
