4.26 Central Brake and Steer—Pedal Assemblies
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 60 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)

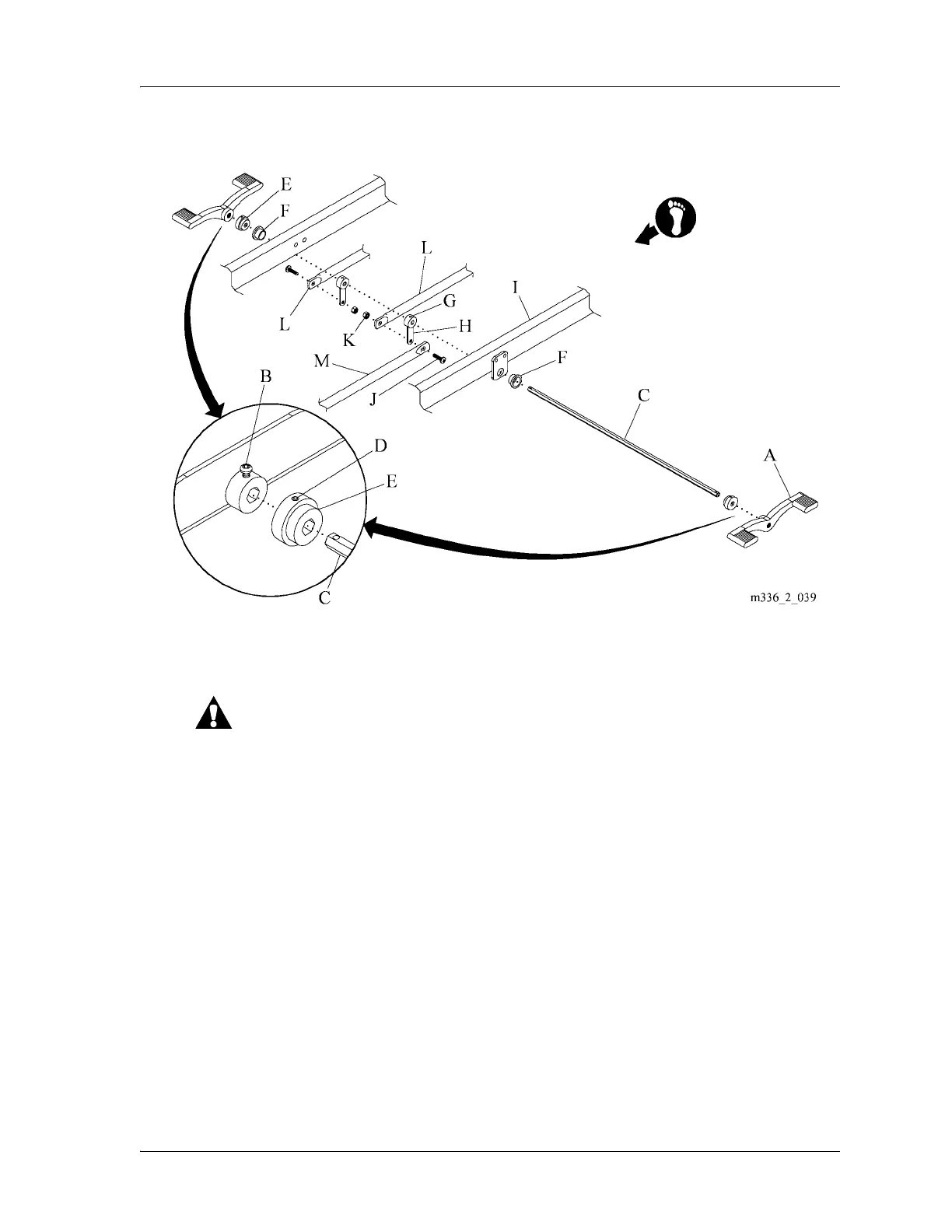

Figure 4-27. Central Brake and Steer—Pedal Assemblies
Replacement
Make sure that a flat side of the hex rod faces upward when it is
installed. Failure to do so may cause the central brake and steer to not
operate correctly.
1. Make sure that a flat side of the hex rod faces upward before it is installed.
2. Do the removal procedure in the reverse order.
3. Do the “Function Checks” on page 2-2.
