4.14 Hilow Crank Rod and Drive Screw Assembly Including Gas Springs (Manual Model Only)
Chapter 4: Removal, Replacement, and Adjustment Procedures
4
Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed, Page 4 - 33
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)

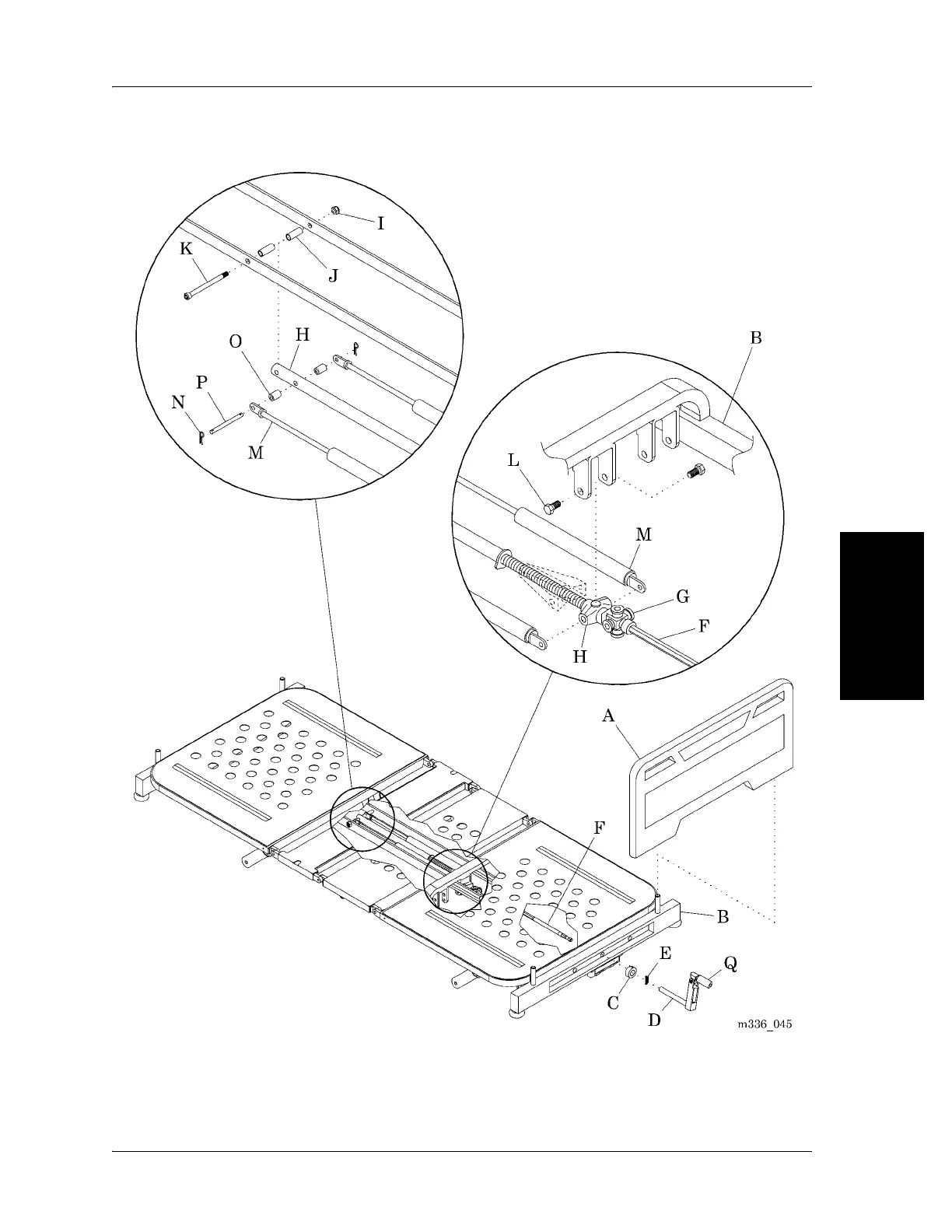

Figure 4-14. Hilow Crank Rod and Drive Screw Assembly Including Gas Springs
