4.15 CPR Handle Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 36 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)

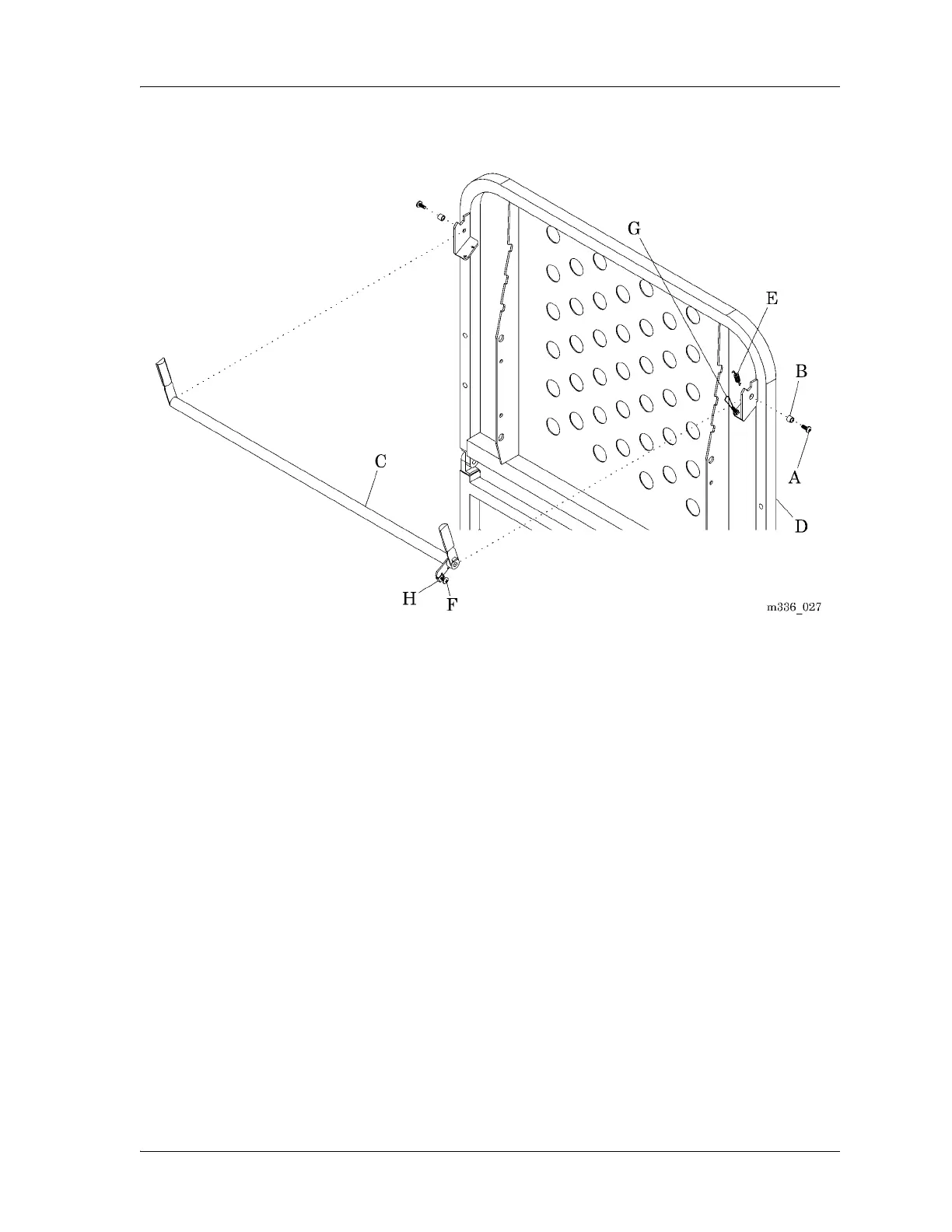

Figure 4-15. CPR Handle Assembly
Replacement
Do the removal procedure in the reverse order.
Adjustment
Adjust the tension on the CPR wire (G) (refer to procedure 6.2 on page 6-11).
